Driver or Passenger Seat Belt Buckle Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

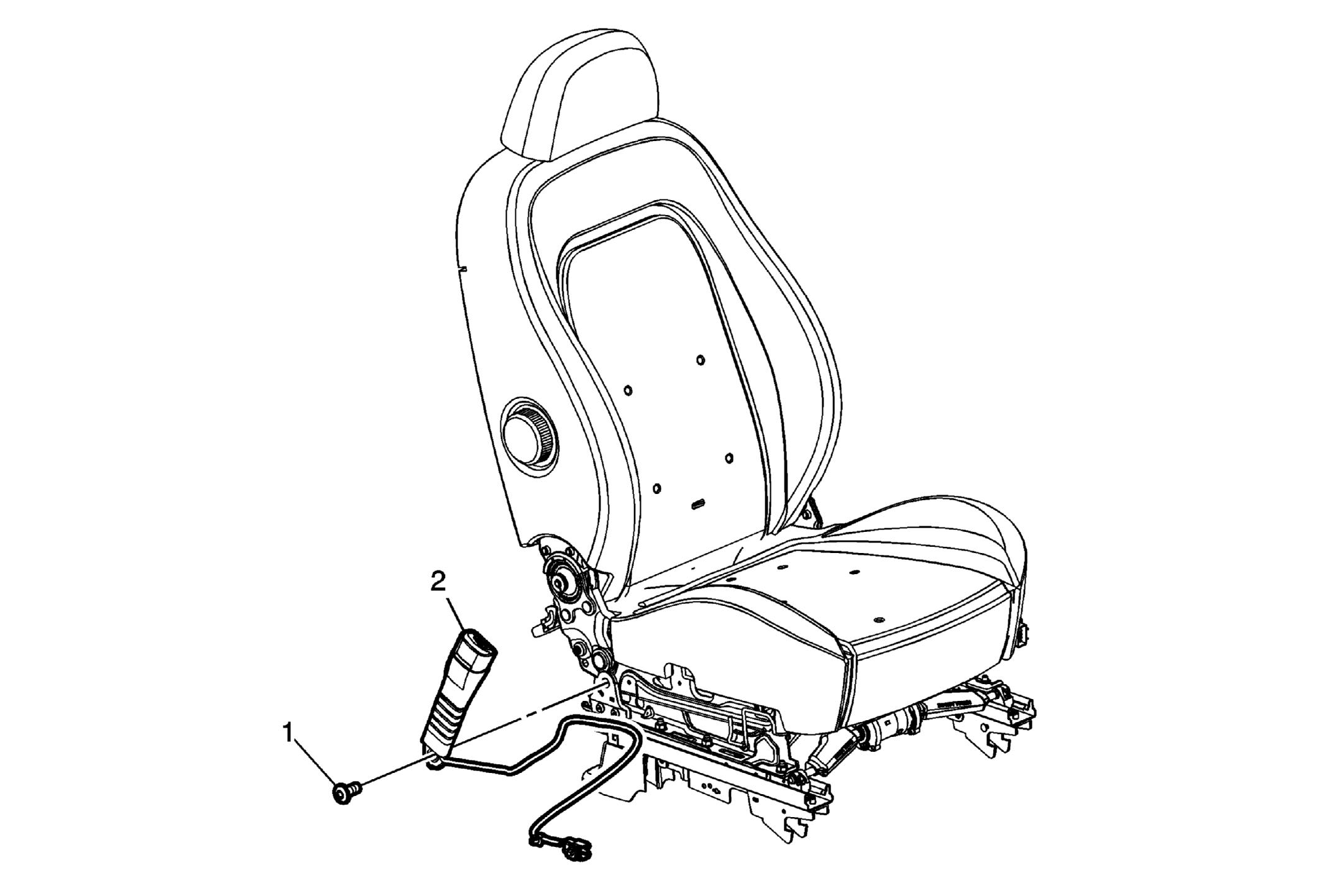

Fig 1: Driver or Passenger Seat Belt Buckle Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat assembly. Refer to Front Seat Replacement - Bucket . Remove the seat inner adjuster finish cover. Refer to Driver or Passenger Seat Inner Adjuster Finish Cover Replacement .
1	Seat Belt Buckle Bolt CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Seat (Buckle Side) Belt Assembly Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the front seat assembly. Refer to Front Seat Replacement - Bucket .
Remove the seat inner adjuster finish cover. Refer to Driver or Passenger Seat Inner Adjuster Finish Cover Replacement .

Seat Belt Buckle Bolt

CAUTION: Refer to Fastener Caution .

Tighten: 45 N.m (33 lb ft)

Seat (Buckle Side) Belt Assembly
Procedure:
Disconnect the electrical connector.
