Ignition Lock Cylinder Replacement (With Hydraulic Power Steering)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

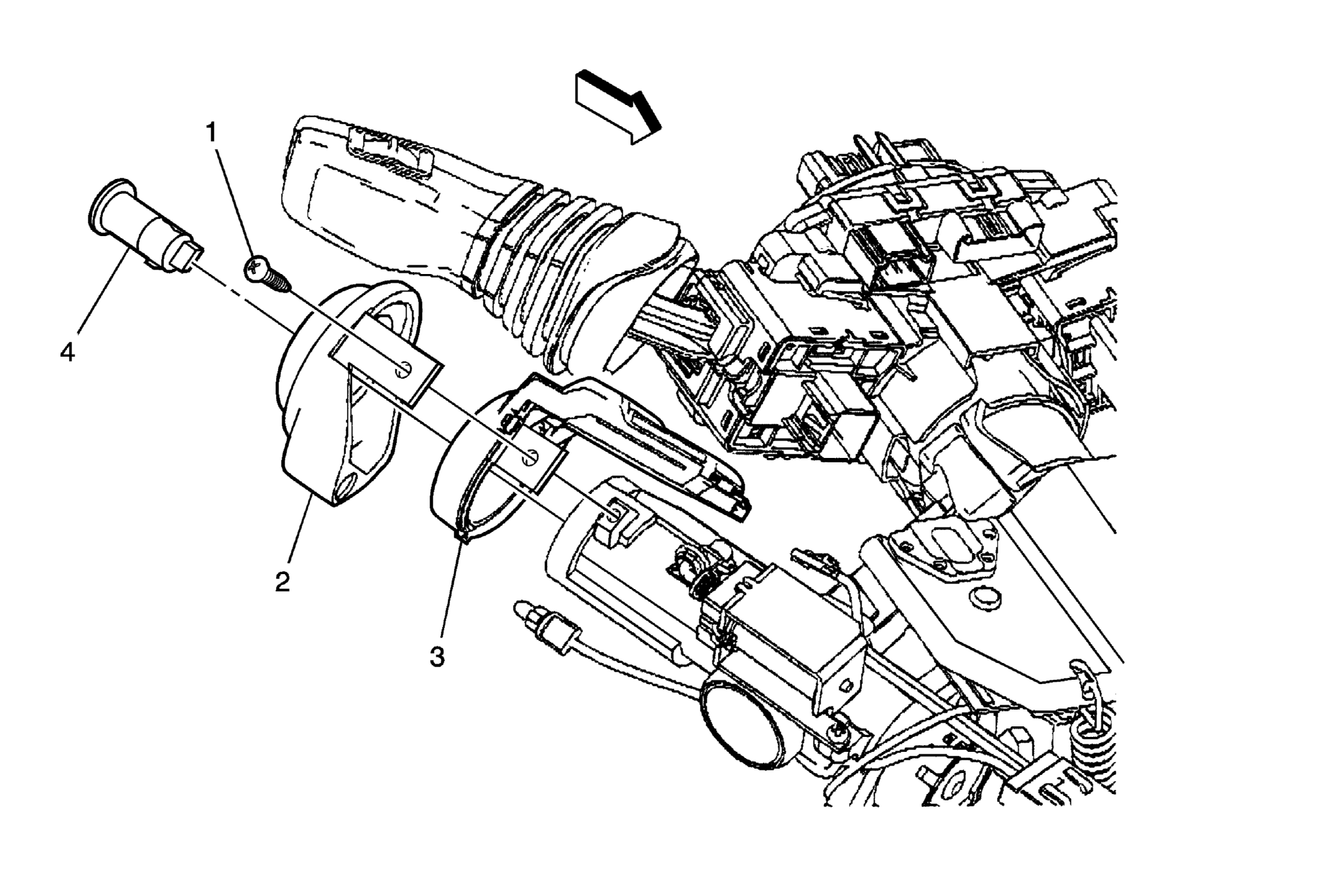

Fig 1: Ignition Lock Cylinder Replacement (With Hydraulic Power Steering)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1	Ignition Lock Cylinder Bolt CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Ignition Lock Cylinder Bezel Procedure: Disengage the ignition lock cylinder bezel light from the bezel.
3	Theft Deterrent Module Procedure: Disconnect any electrical connectors as needed.
4	Ignition Lock Cylinder Procedure Turn the ignition lock cylinder to the run position. Use a small pick type tool to depress the ignition lock cylinder retaining tab and pull it outwards to remove. If installing a new ignition lock cylinder, refer to Key and Lock Cylinder Coding .
