Steering Column Upper Trim Cover Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

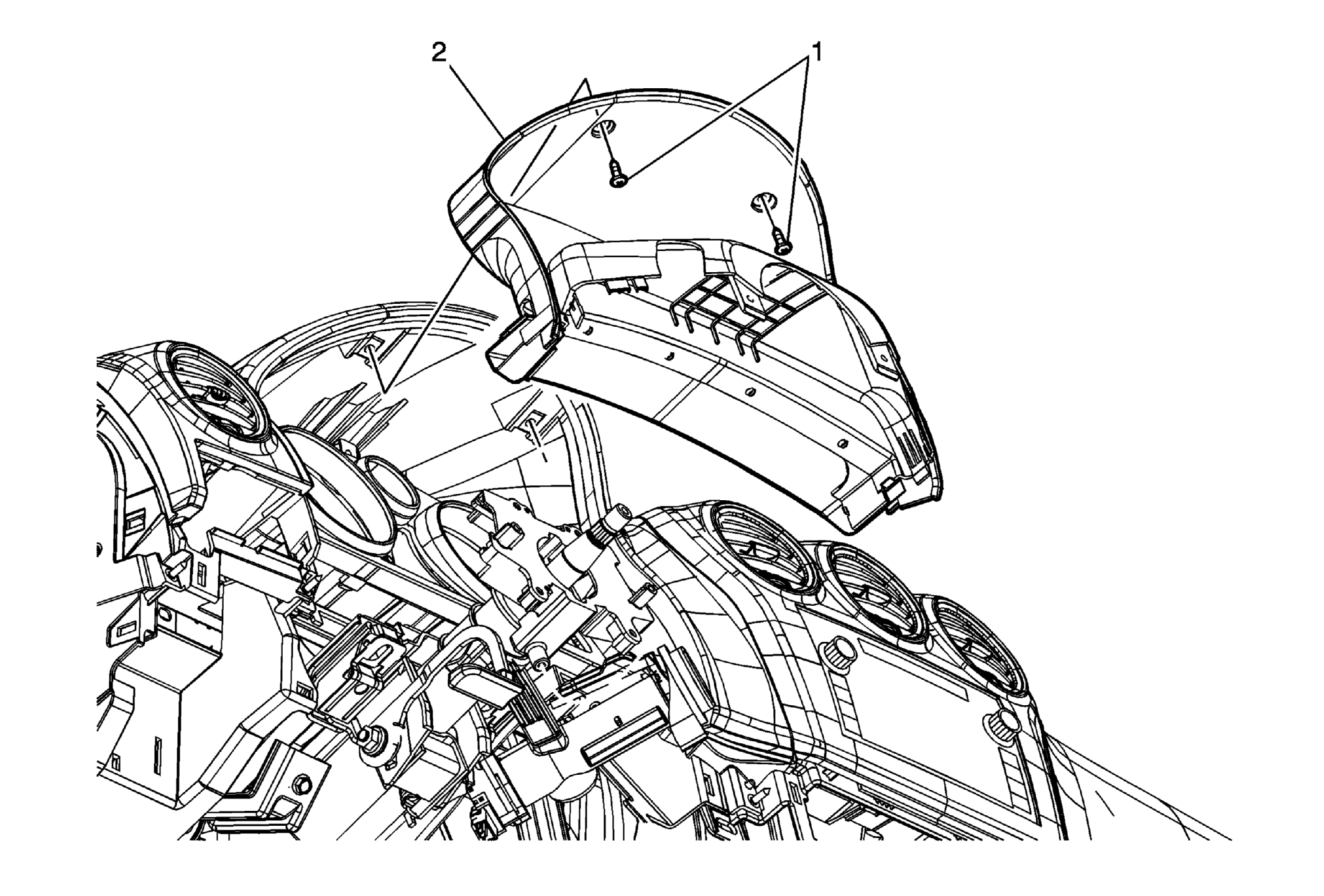

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . |
|
| 1 | Steering Column Upper Trim Cover Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Steering Column Upper Trim Cover Tip: The steering column upper trim cover consists of both the cover AND the instrument panel cluster trim plate bezel. Do not try and separate these pieces, they are serviced as one part only. |
