Ignition Lock Cylinder Control Solenoid Replacement (With NVH)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

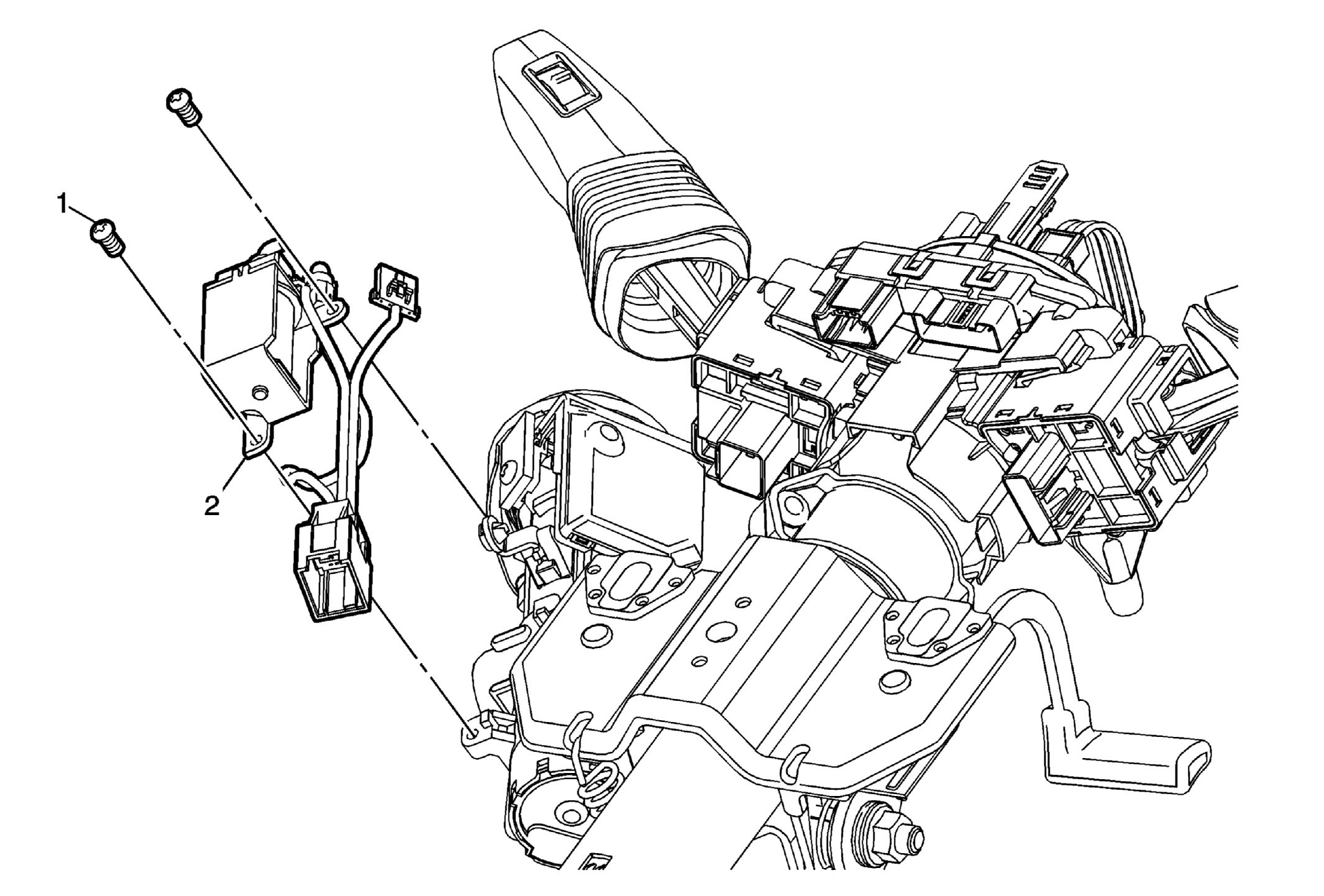

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . |
|
| 1 | Ignition Lock Cylinder Solenoid Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Ignition Lock Cylinder Solenoid Procedure: Disconnect any electrical connectors as needed. |
