Steering Column Lower Trim Cover Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

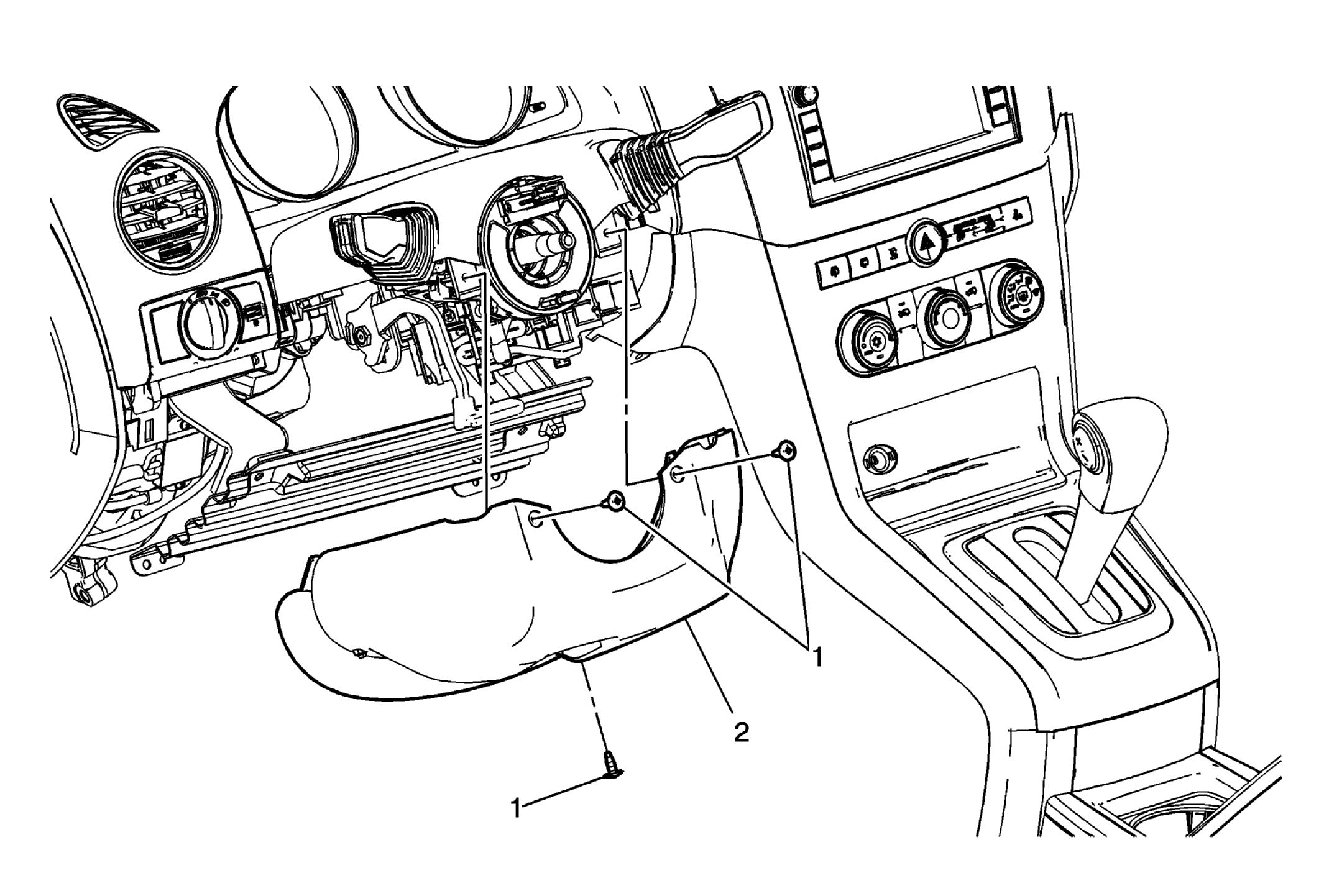

Fig 1: Steering Column Lower Trim Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .
1	Steering Column Lower Trim Cover Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Steering Column Lower Trim Cover Tip: The steering column lower trim cover may need to be turned slightly to maneuver it around the steering column tilt lever.

Callout

Component Name

Preliminary Procedure

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement .

Steering Column Lower Trim Cover Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Steering Column Lower Trim Cover
Tip: The steering column lower trim cover may need to be turned slightly to maneuver it around the steering column tilt lever.
