Instrument Cluster Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

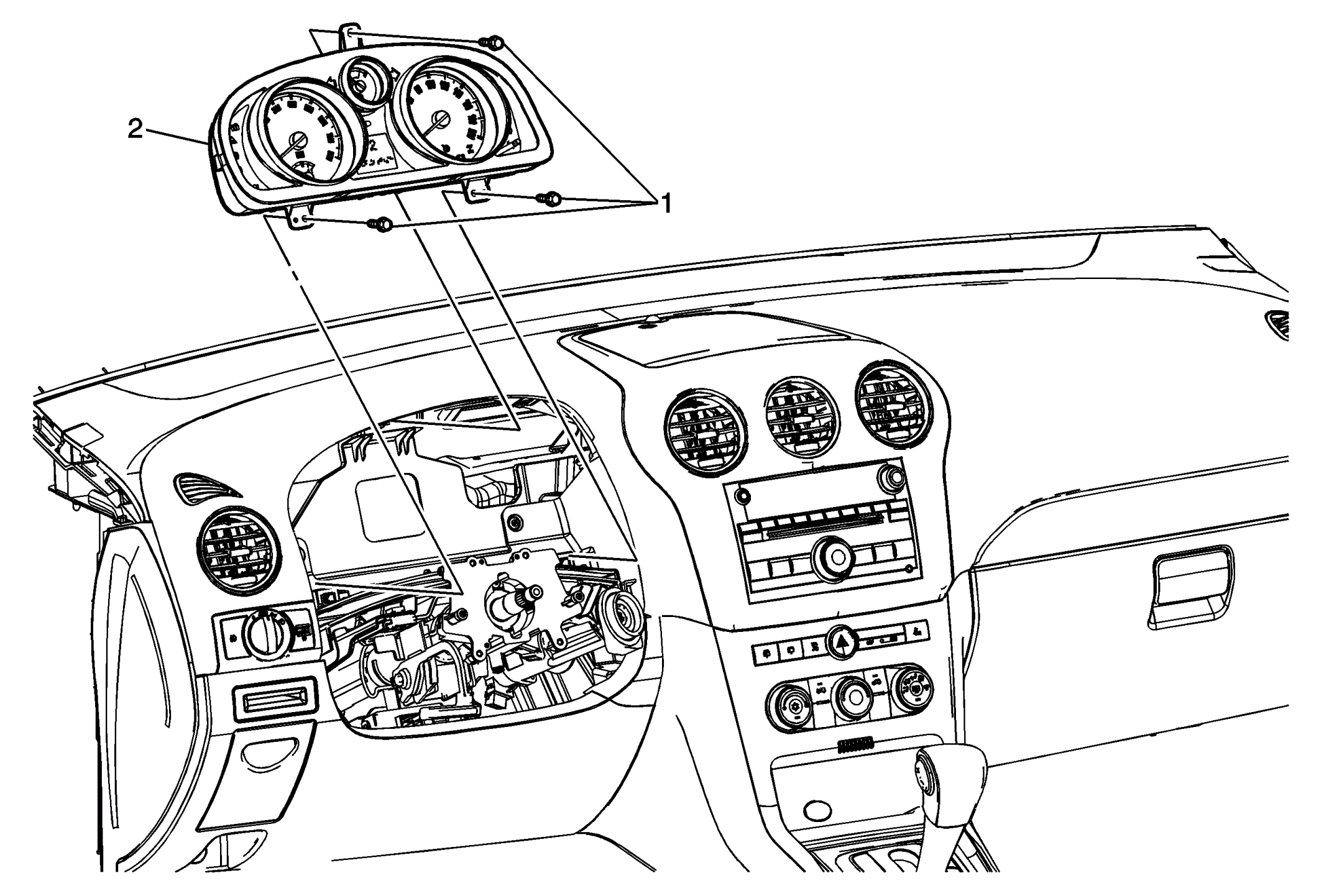

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the upper steering column trim cover assembly. Refer to Steering Column Upper Trim Cover Replacement .
1	Instrument Panel Cluster Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Instrument Panel Cluster Assembly Procedure Disconnect the electrical connections. When replacing the cluster assembly, refer to Control Module References for programing and setup information.

Callout

Component Name

Preliminary Procedure:
Remove the upper steering column trim cover assembly. Refer to Steering Column Upper Trim Cover Replacement .

Instrument Panel Cluster Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 3 N.m (27 lb in)

Instrument Panel Cluster Assembly

Procedure

Disconnect the electrical connections.
When replacing the cluster assembly, refer to Control Module References for programing and setup information.
