Steering Wheel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

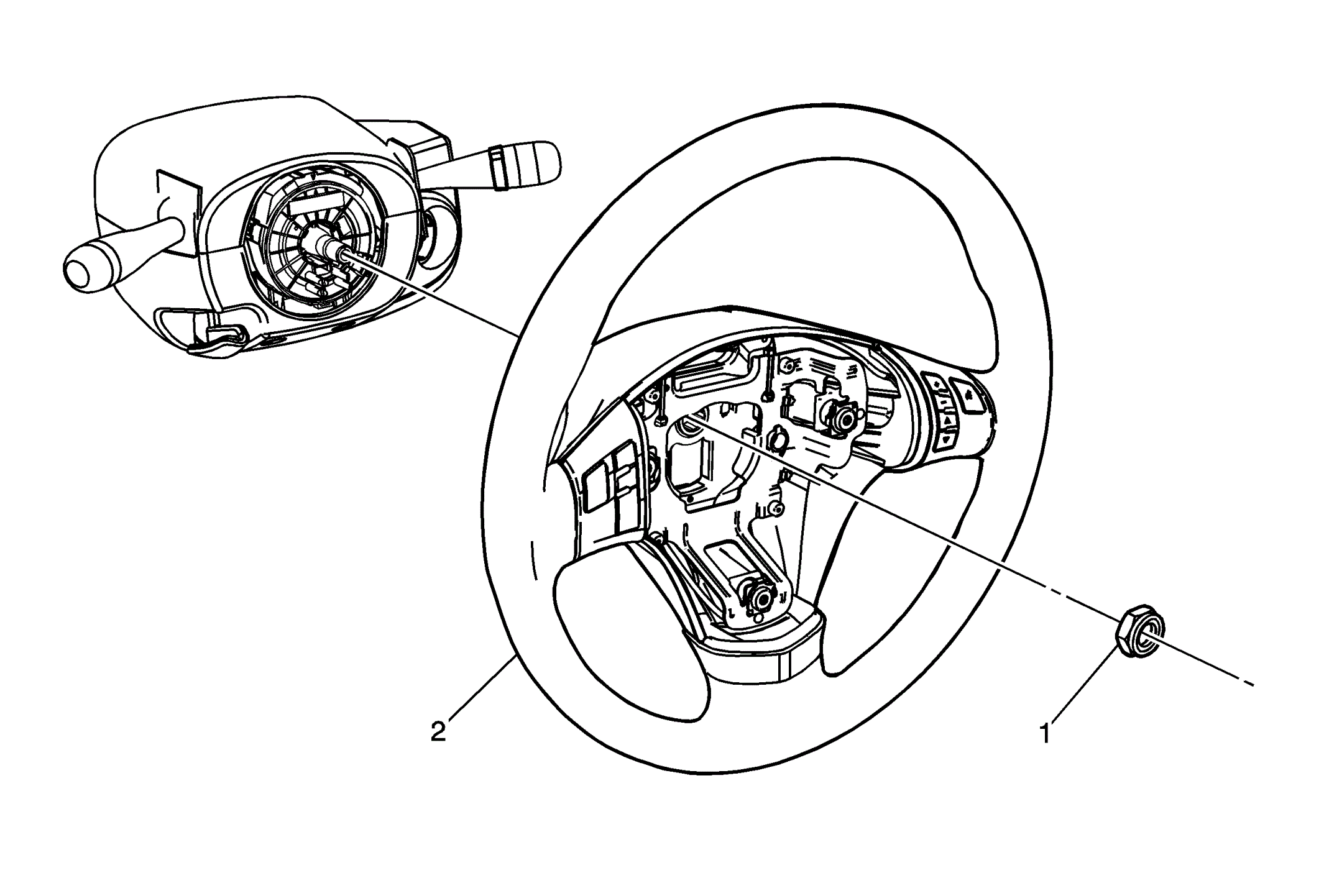

Fig 1: View Of Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .
1	Steering Wheel Nut CAUTION: Refer to Fastener Caution . Tighten: 41 N.m (30 lb ft)
2	Steering Wheel Procedure Disconnect any electrical connectors as needed. Remove the steering wheel using the J 1859-A: puller and the J 36541-A: puller legs. Special Tools J 1859-A: Steering Wheel Puller J 36541-A: Steering Wheel Puller Legs

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Steering Wheel Inflatable Restraint Module Replacement .

Steering Wheel Nut

CAUTION: Refer to Fastener Caution .

Tighten: 41 N.m (30 lb ft)

Steering Wheel

Procedure

Disconnect any electrical connectors as needed.
Remove the steering wheel using the J 1859-A: puller and the J 36541-A: puller legs.

Special Tools

J 1859-A: Steering Wheel Puller
J 36541-A: Steering Wheel Puller Legs
