Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

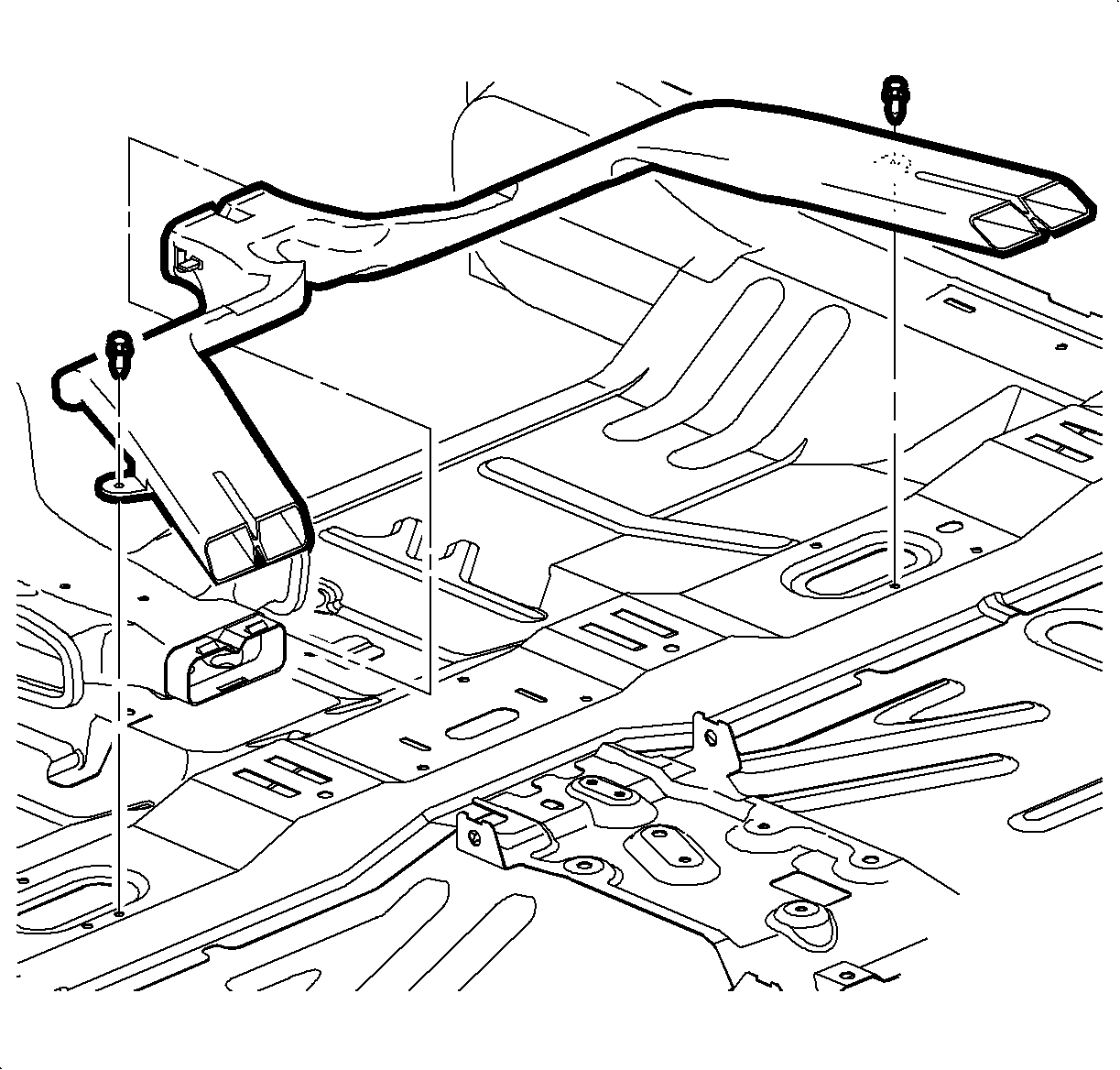

    Fig 1: Identifying Rear Floor Air Outlet & Push Pins
    GM933590Courtesy of GENERAL MOTORS CORP.
  1. Install the rear floor air outlet to the floor pan.
  2. Install the rear floor air outlet push pins to the floor pan.
  3. Install the floor carpet to the B-pillars and the front footwells.
  4. Install the floor console. Refer to Front Floor Console Replacement .
  5. Install the front seats. Refer to Front Seat Replacement - Bucket .
