Instrument Panel Center Air Outlet Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

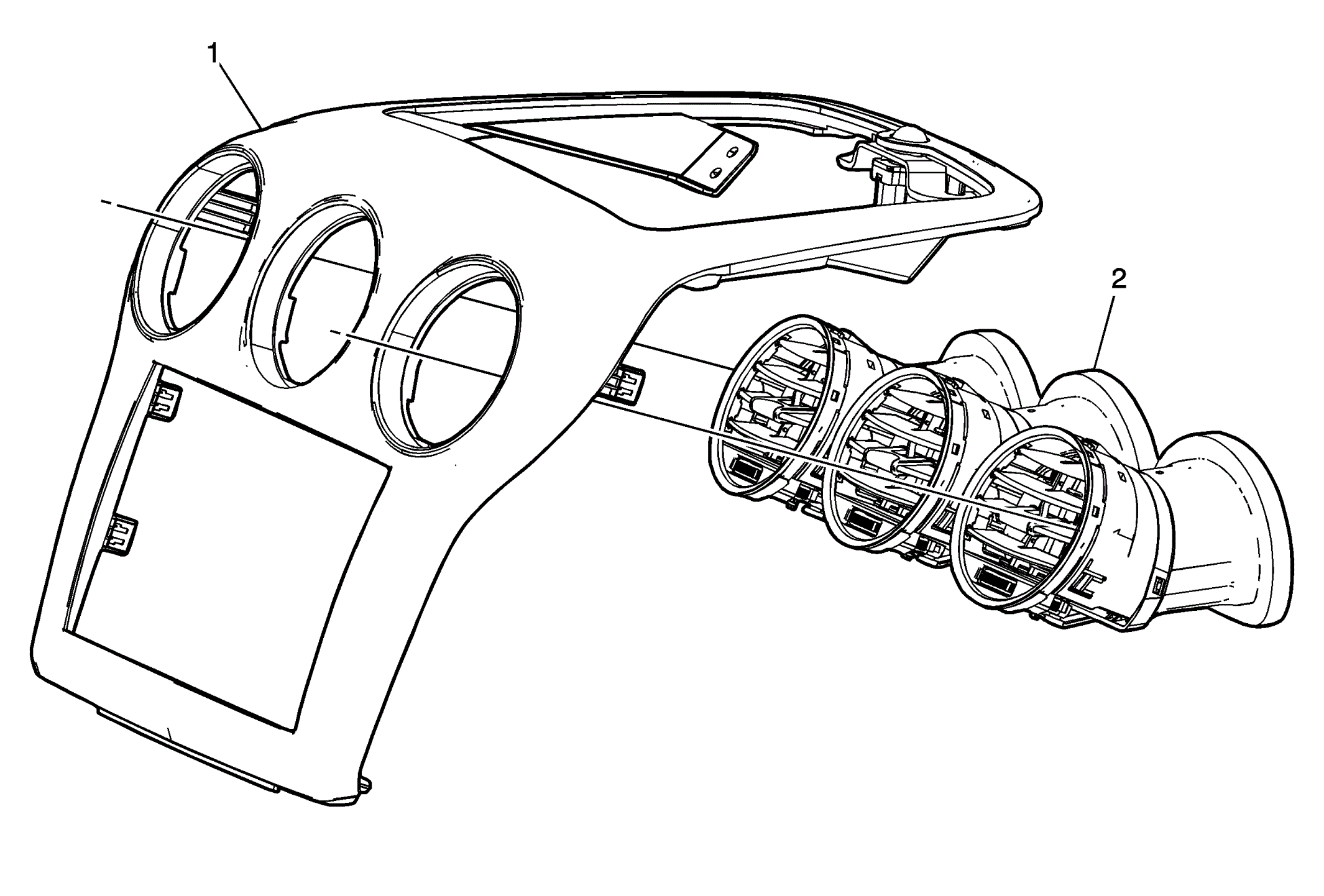

Fig 1: Instrument Panel Center Air Outlet
GM1870267Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Accessory Bezel.
Refer to Instrument Panel Accessory Bezel Replacement (with U61) or Instrument Panel Accessory Bezel Replacement (without U61) .
2 Instrument Panel Center Air Outlet (Qty: 3)
Procedure:
Unsnap the outlet from the accessory bezel.
