Instrument Panel Accessory Bezel Replacement (without U61)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

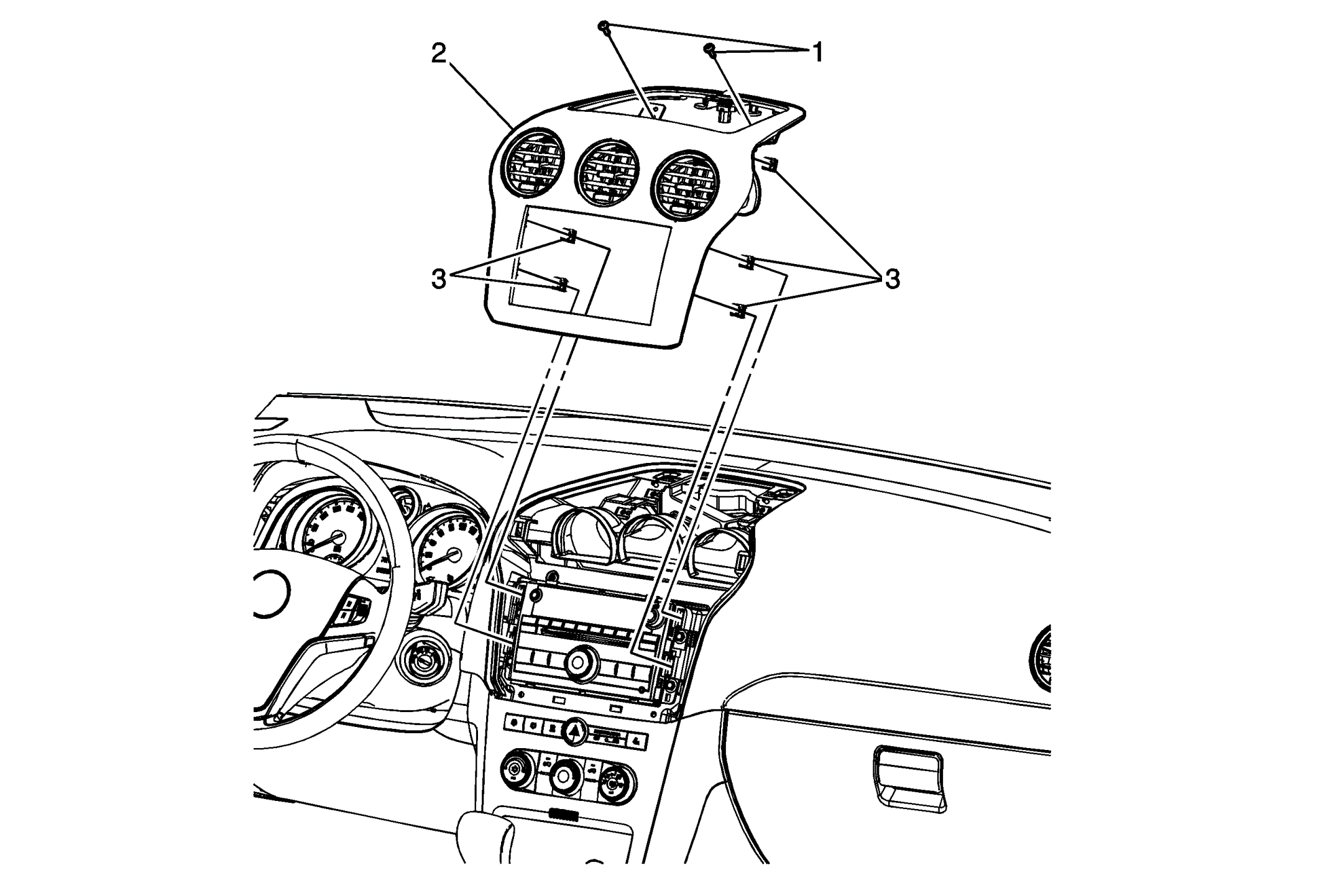

Fig 1: Instrument Panel Accessory Bezel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the radio front speaker grill. Refer to Radio Front Speaker Grille Replacement . Remove the front floor console accessory trim plate. Refer to Front Floor Console Accessory Trim Plate Replacement .
1	Instrument Panel Accessory Bezel Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Instrument Panel Accessory Bezel Assembly Procedure Use a flat-bladed plastic trim tool in order to release the accessory bezel from the instrument panel. Disconnect the electrical connectors. When replacing the accessory bezel, transfer all necessary components.
3	Retainer Clip (Qty: 8)
