Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

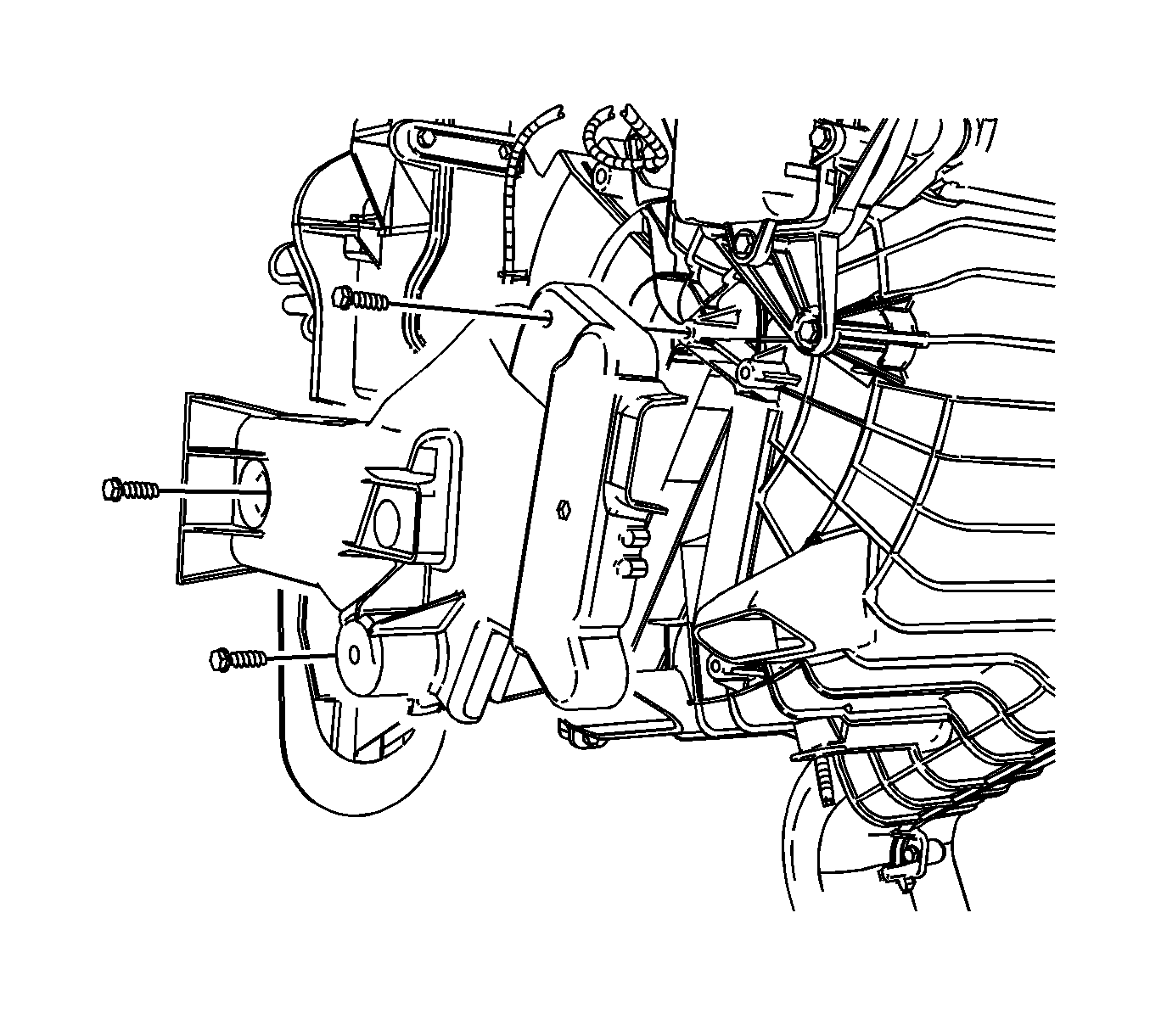

    Fig 1: View Of Heater Core Cover Screws
    GM1646777Courtesy of GENERAL MOTORS CORP.
  1. Remove the HVAC module from the vehicle. Refer to Air Conditioning and Heater Module Assembly Replacement .
  2. Remove the heater core cover screws from the HVAC module.
  3. Remove the heater core cover from the HVAC module.

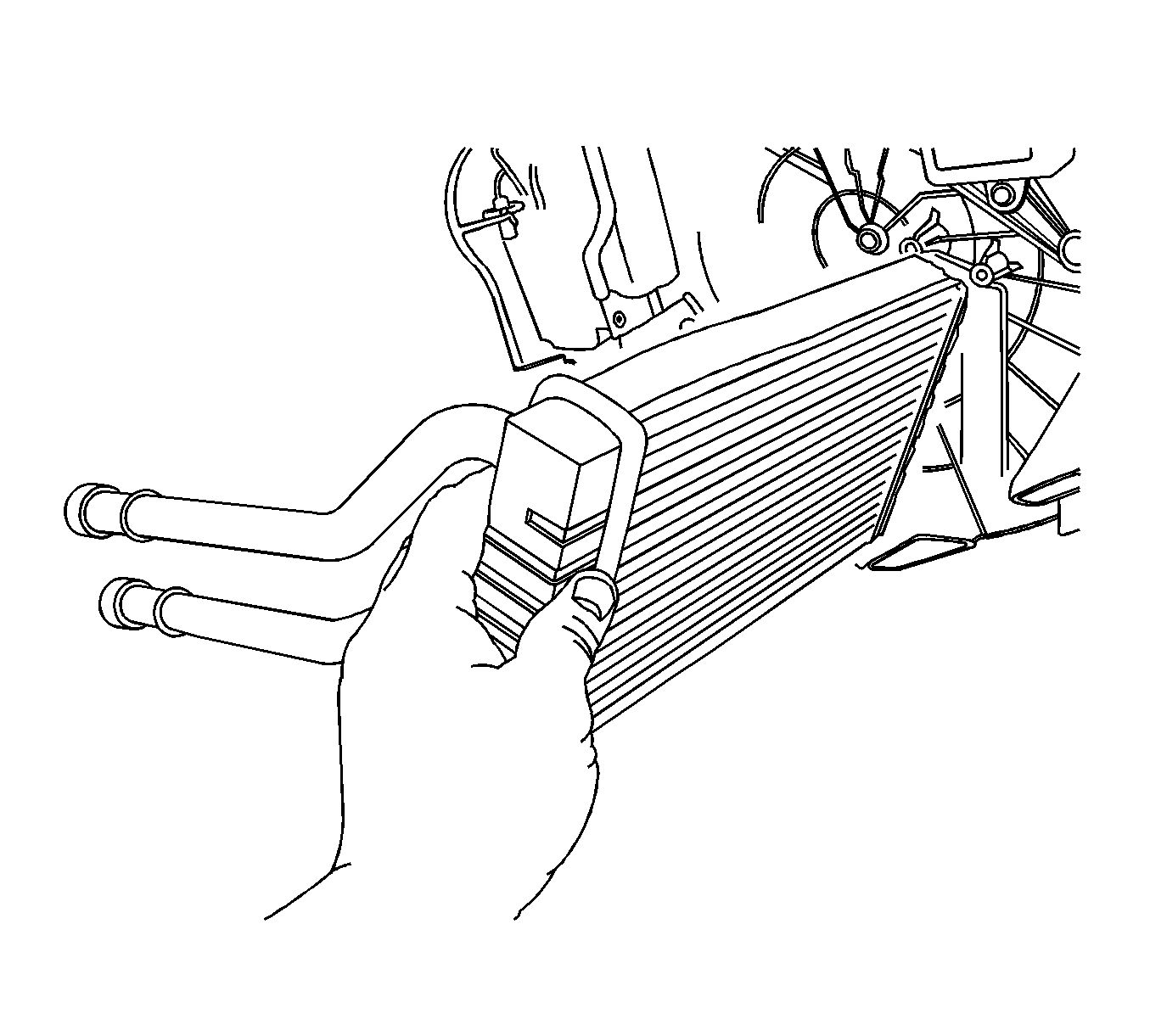

    4. Fig 2: View Of Heater Core
    GM1648497Courtesy of GENERAL MOTORS CORP.
  4. Remove the heater core from the HVAC module.
