Air Conditioning and Heater Module Assembly Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

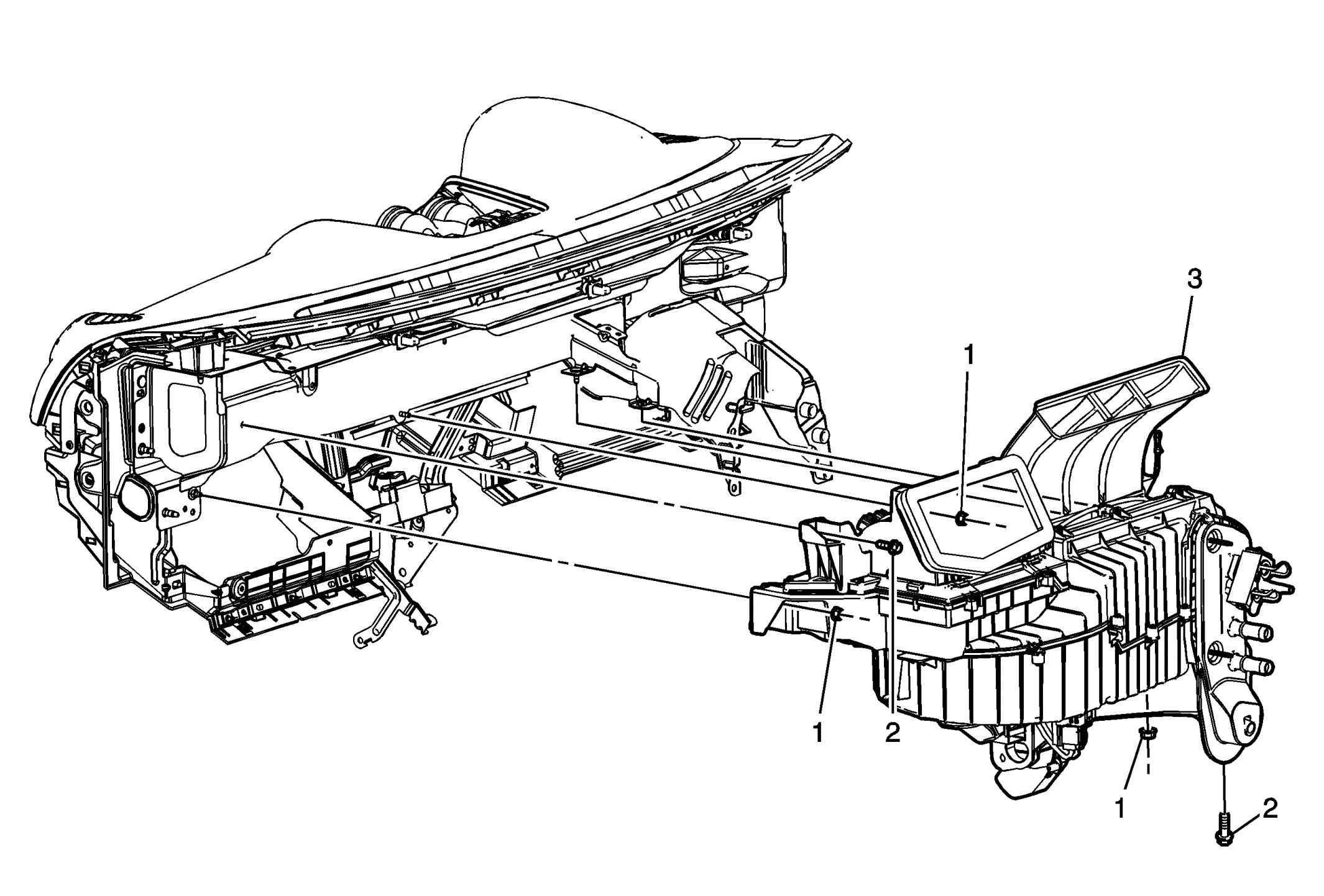

Fig 1: HVAC Module Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: To avoid damage to the vehicle and/or the components of the instrument panel because of hidden fasteners and retainers the instrument panel must be removed from the vehicle as an assembly. Preliminary Procedure: Remove the instrument panel assembly. Refer to Instrument Panel Assembly Replacement .
1	HVAC Module Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	HVAC Module Bolt (Qty: 2) Tighten: 8 N.m (71 lb in)
3	HVAC Module Assembly Procedure Note the location and routing of the electrical harness to ensure proper reinstallation. Disconnect the electrical connections. When replacing the HVAC module assembly, transfer all necessary components.
