Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

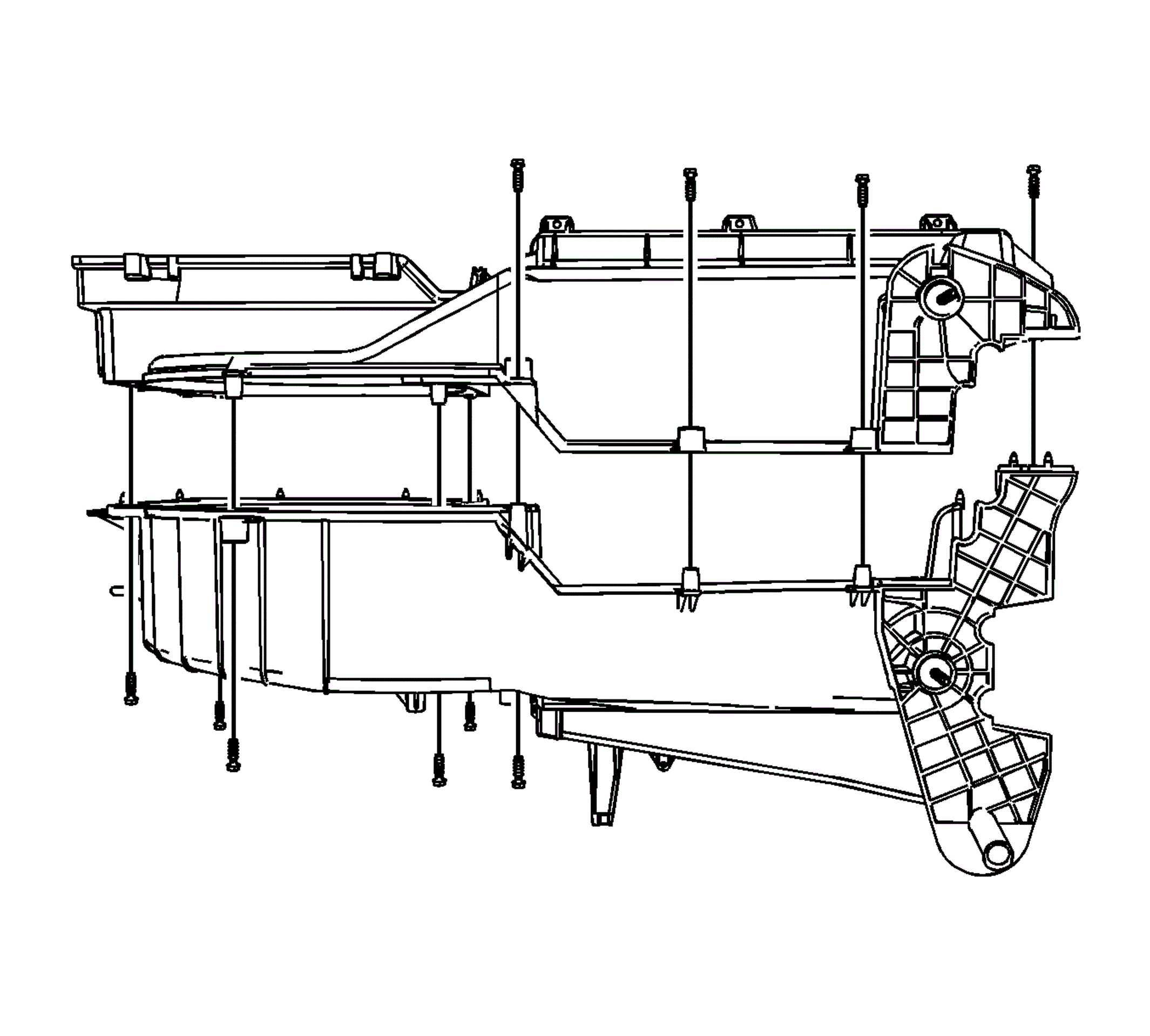

    Fig 1: View Of Blower Case Assembly Halves
    GM1646794Courtesy of GENERAL MOTORS CORP.
  1. Install the evaporator core to the blower case assembly.
  2. Assemble the two halves of the blower case assembly.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the screws to retain the two halves of the blower case assembly.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

    4. Fig 2: Blower Motor Resistor, Screws & Blower Case Assembly
    GM933084Courtesy of GENERAL MOTORS CORP.
  4. Install the blower motor control module to the blower case assembly.
  5. Install the blower motor control module screws to the blower case assembly.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

    6. Fig 3: Blower Motor Screws & Blower Case Assembly
    GM933076Courtesy of GENERAL MOTORS CORP.
  6. Install the blower motor to the blower case assembly.
  7. Install the blower motor screws to the blower case assembly.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

  8. Install the air inlet assembly. Refer to Air Inlet Assembly Replacement .
  9. Install the evaporator case assembly. Refer to Air Conditioning (A/C) Evaporator Case Assembly Replacement .
  10. Install the HVAC module. Refer to Air Conditioning and Heater Module Assembly Replacement .
