Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

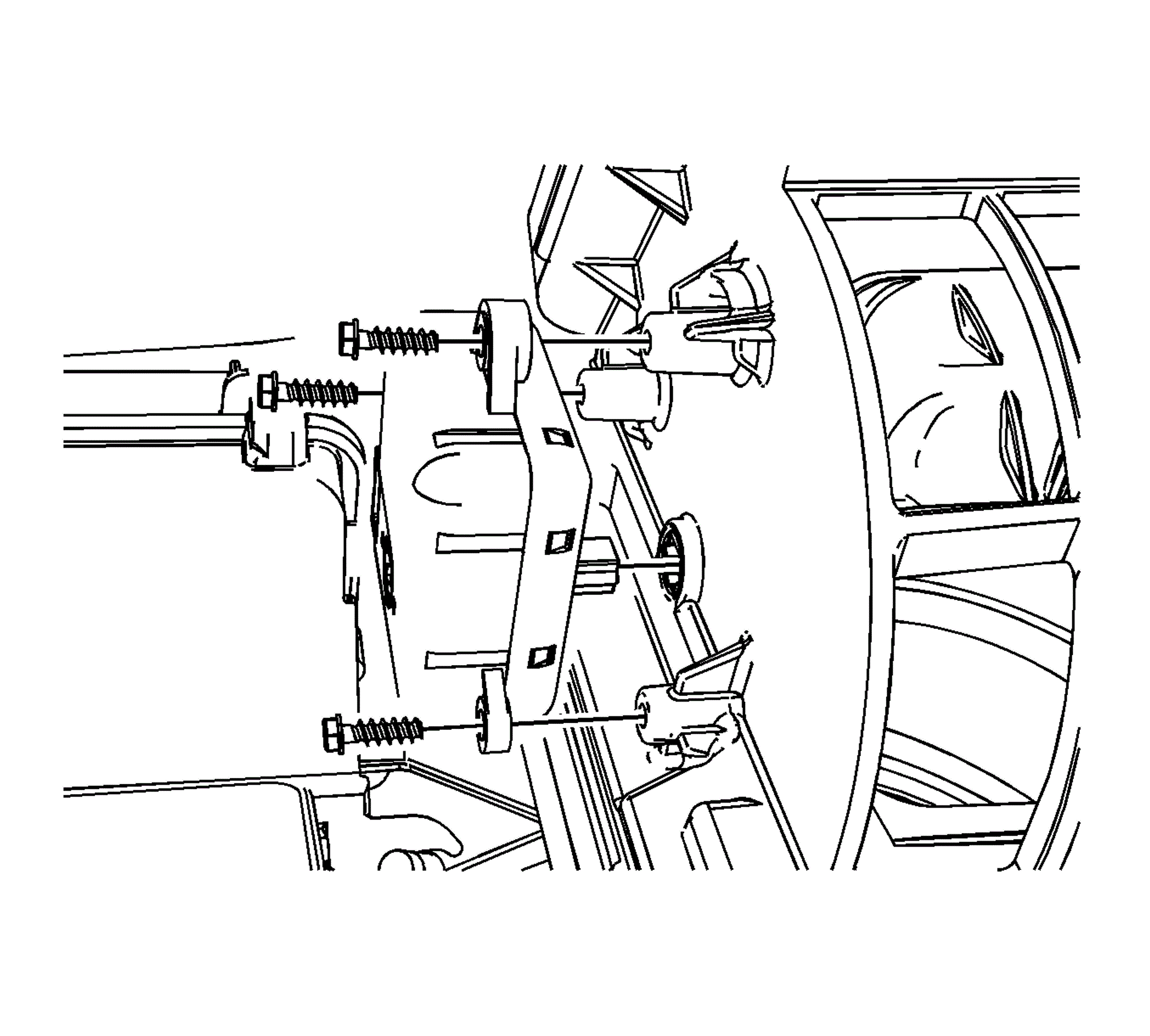

    Fig 1: View Of Recirculation Actuator
    GM1646802Courtesy of GENERAL MOTORS CORP.
  1. Remove the HVAC module. Refer to Air Conditioning and Heater Module Assembly Replacement .
  2. Disconnect the electrical connector from the recirculation actuator.
  3. Remove the recirculation actuator screws.
  4. Remove the recirculation actuator.

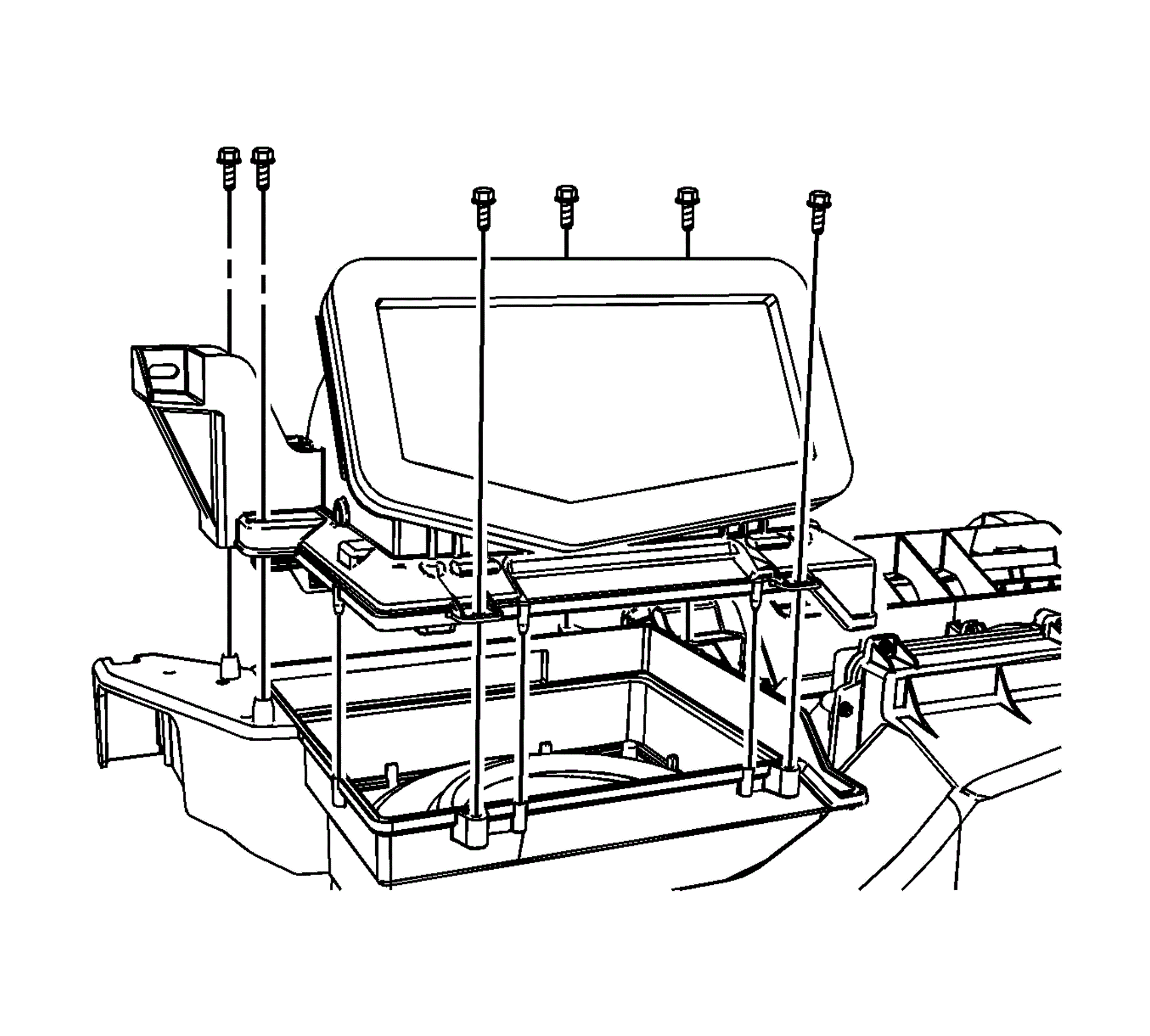

    5. Fig 2: View Of Air Inlet Assembly Screws
    GM1646783Courtesy of GENERAL MOTORS CORP.
  5. Remove the air inlet assembly screws.
  6. Remove the air inlet assembly.
