Air Conditioning Compressor Bracket Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

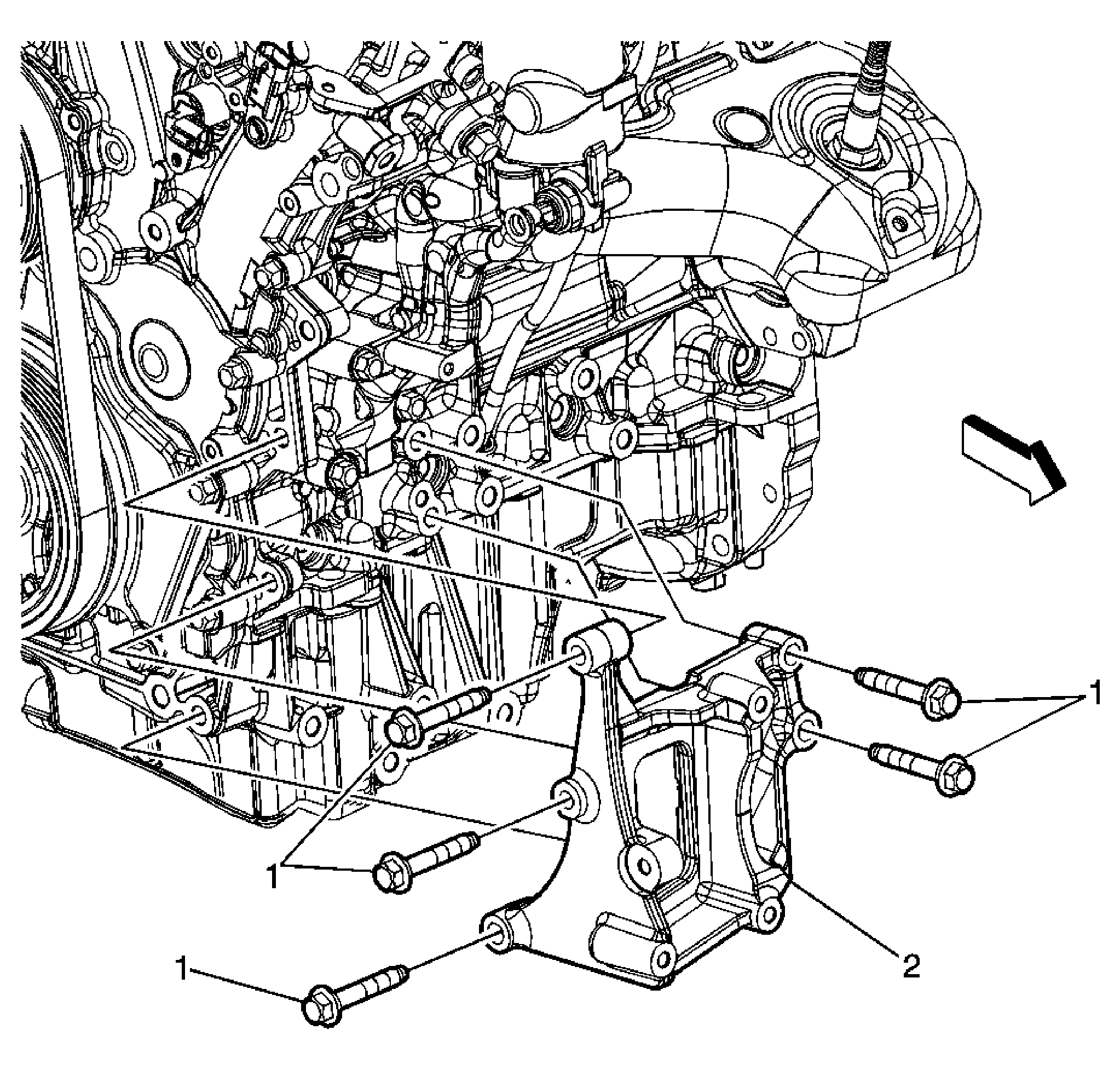

Fig 1: Air Conditioning Compressor Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the A/C compressor from the A/C compressor bracket. Refer to Air Conditioning Compressor Replacement (HP5) or Air Conditioning Compressor Replacement (LY7) or Air Conditioning Compressor Replacement (LZ4) or Air Conditioning Compressor Replacement (LAT, LE5) . NOTE: If only servicing the A/C compressor bracket, remove the A/C compressor bolts without removing any A/C lines or wiring. Reposition and support the A/C compressor forward while removing the bracket.
1	A/C Compressor Bracket Bolt (Qty 5) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 ft in)
2	A/C Compressor Bracket Procedure: Slide the A/C compressor bracket downward between the engine and front cradle for removal.

Callout

Component Name

Preliminary Procedure

Raise and support vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the A/C compressor from the A/C compressor bracket. Refer to Air Conditioning Compressor Replacement (HP5) or Air Conditioning Compressor Replacement (LY7) or Air Conditioning Compressor Replacement (LZ4) or Air Conditioning Compressor Replacement (LAT, LE5) .

NOTE: If only servicing the A/C compressor bracket, remove the A/C compressor bolts without removing any A/C lines or wiring. Reposition and support the A/C compressor forward while removing the bracket.

A/C Compressor Bracket Bolt (Qty 5)

CAUTION: Refer to Fastener Caution .

Tighten: 50 N.m (37 ft in)

A/C Compressor Bracket
Procedure:
Slide the A/C compressor bracket downward between the engine and front cradle for removal.
