Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

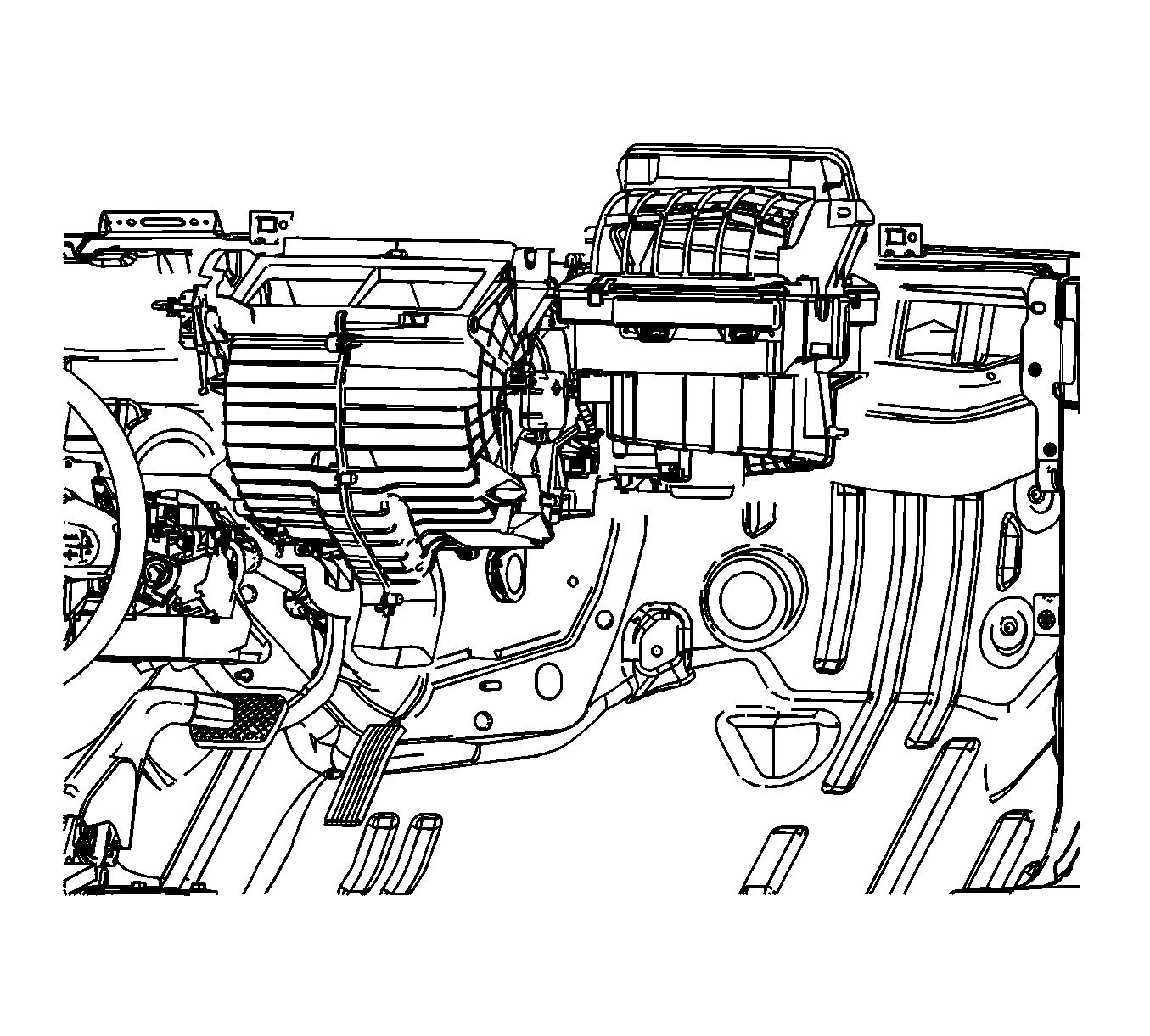

    Fig 1: View Of HVAC Module
    GM1647772Courtesy of GENERAL MOTORS CORP.
  1. Install evaporator case assembly to the blower case assembly.
    2. CAUTION: Refer to Fastener Caution .
  2. Install evaporator case assembly screws to the blower case assembly.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

    3. Fig 2: View Of Heater Core
    GM1648497Courtesy of GENERAL MOTORS CORP.
  3. Install heater core to the HVAC module.
    4. Fig 3: View Of Heater Core Cover Screws
    GM1646777Courtesy of GENERAL MOTORS CORP.
  4. Install heater core cover.
  5. Install heater core cover screws.

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

    6. Fig 4: View Of HVAC Module
    GM1647772Courtesy of GENERAL MOTORS CORP.
  6. Install the HVAC module. Refer to Air Conditioning and Heater Module Assembly Replacement .
