Rear Seat Cushion Spring Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

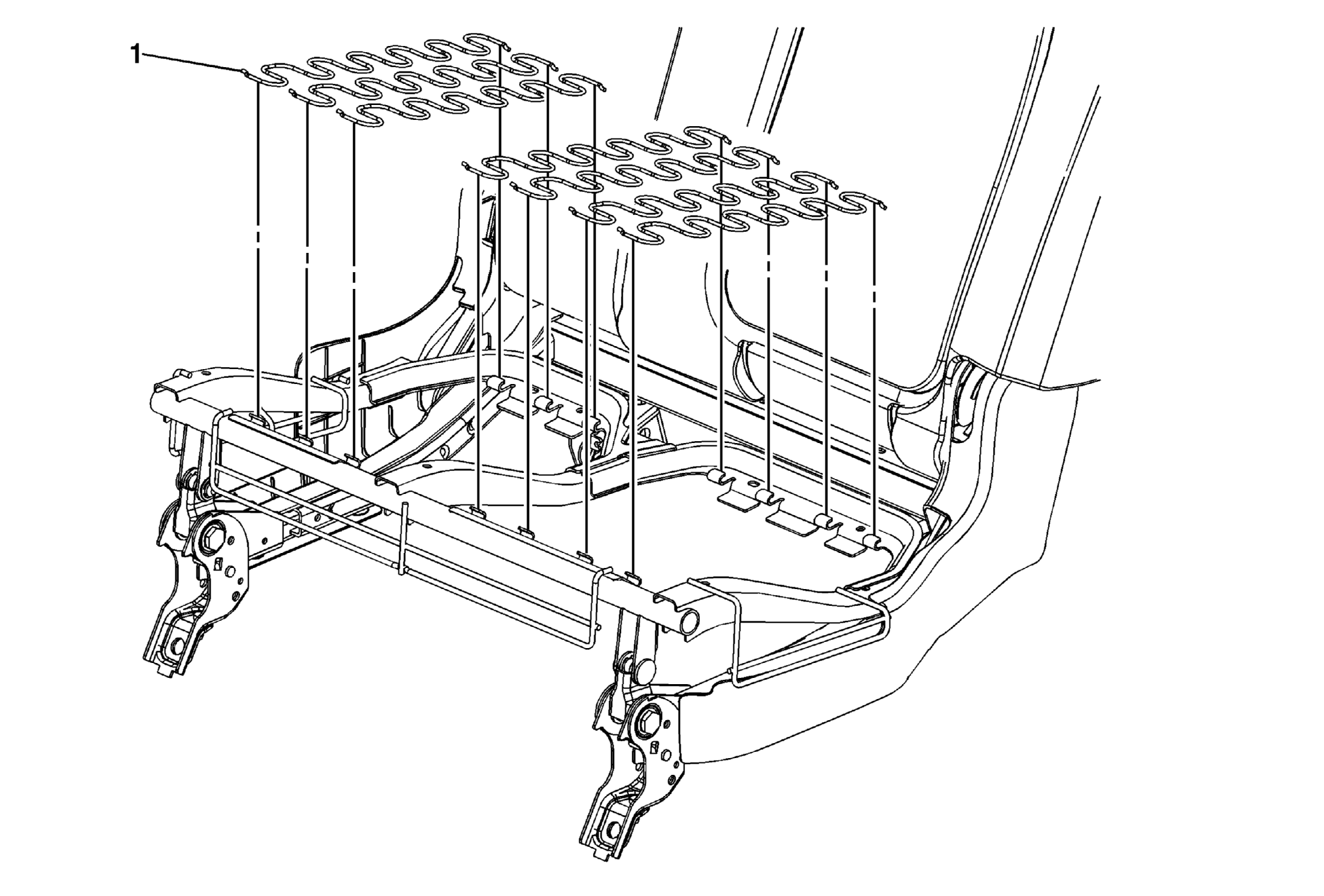

Fig 1: Rear Seat Cushion Spring
GM2194836Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (with 60 Percent Seat) .
1 Rear Seat Cushion Spring
