Rear Side Marker Lamp Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

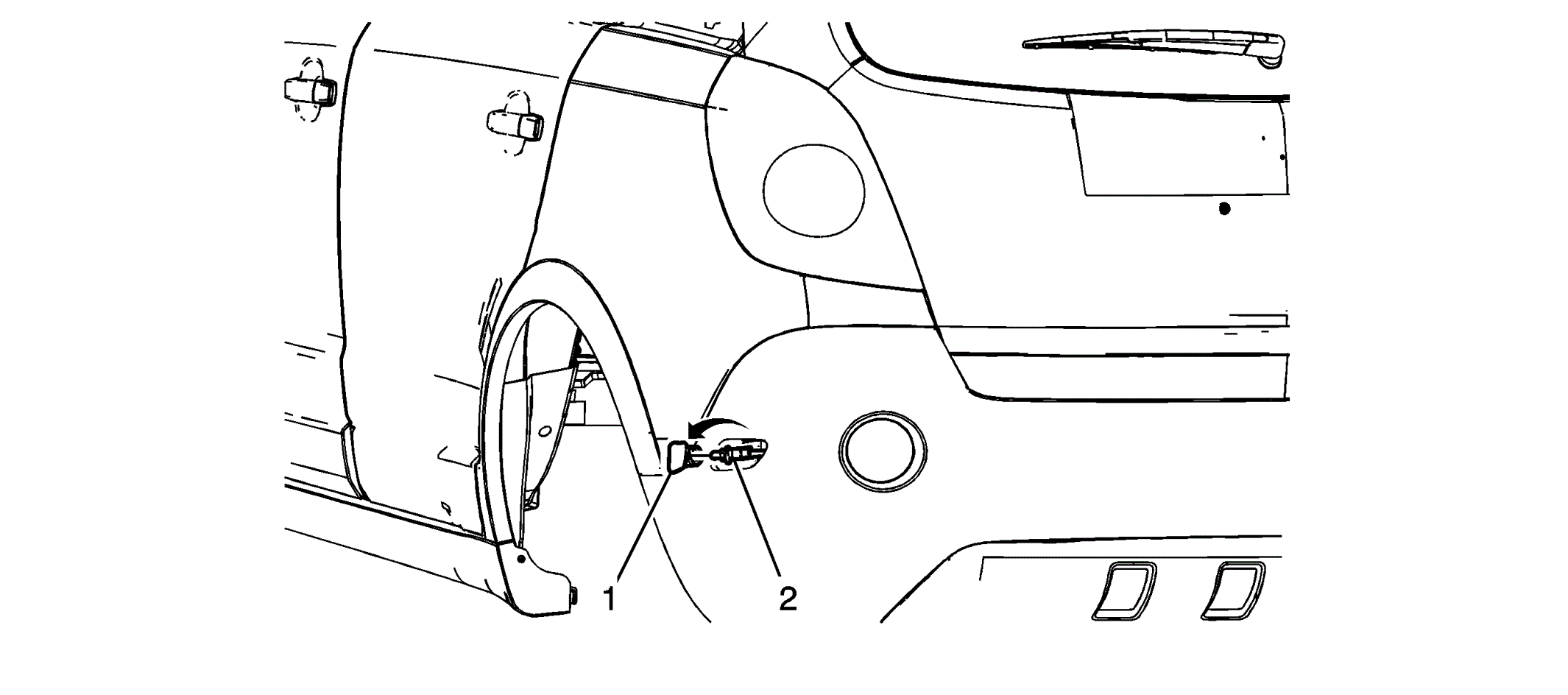

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Side Marker Lamp Assembly Tip: Push the forward clip edge of the lamp assembly outward from the rear bumper fascia. |
| 2 | Rear Side Marker Lamp Assembly Bulb Socket |
