Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

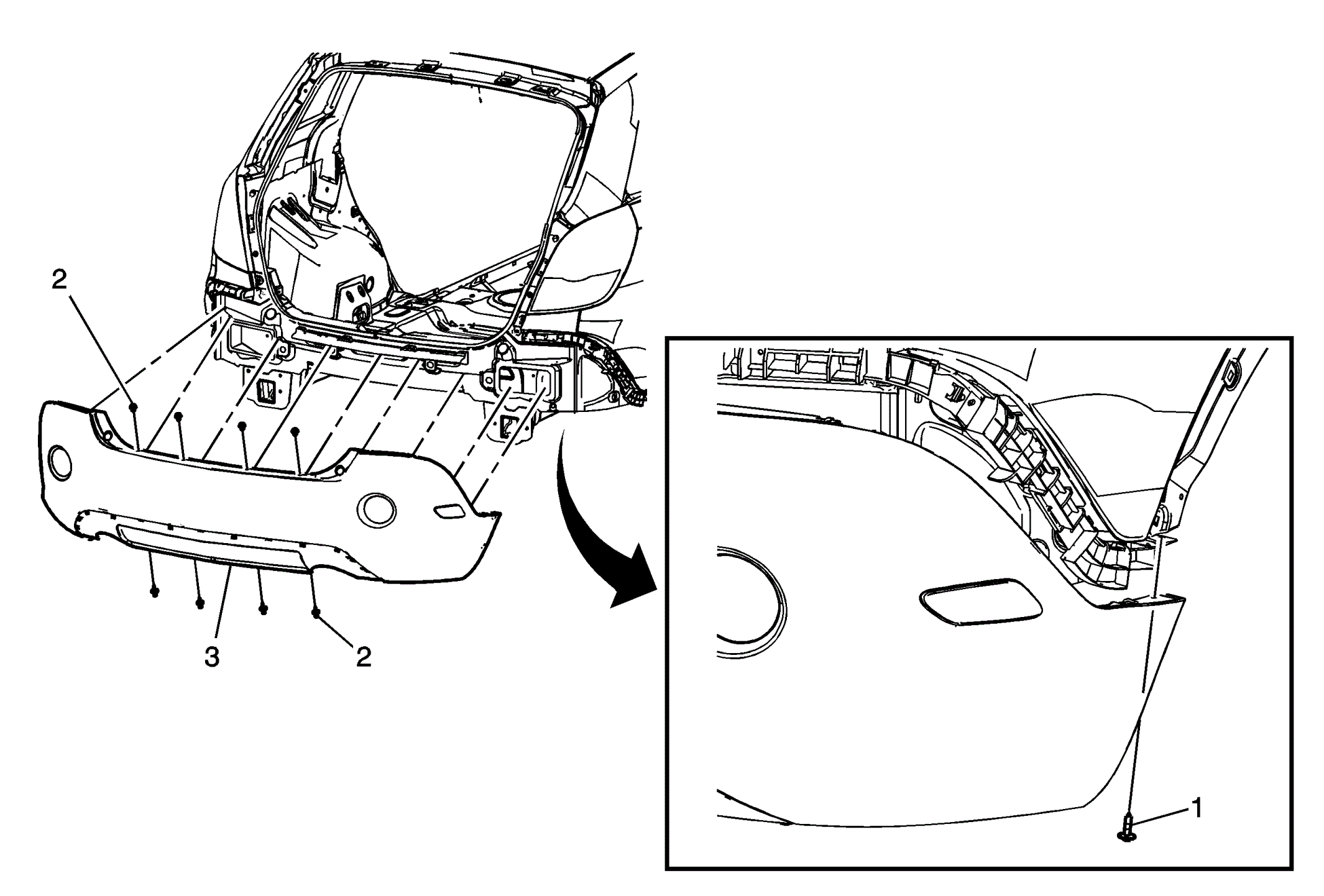

Fig 1: Rear Bumper Fascia Replacement
GM1868399Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the right and left rear wheelhouse if needed. Refer to Rear Wheelhouse Panel Liner Replacement .
1 Rear Fascia Bolt/Screw (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m (89 lb in)
2 Rear Fascia Retainer (Qty: 8)
3 Rear Bumper Fascia

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
