Rear Wheelhouse Panel Liner Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

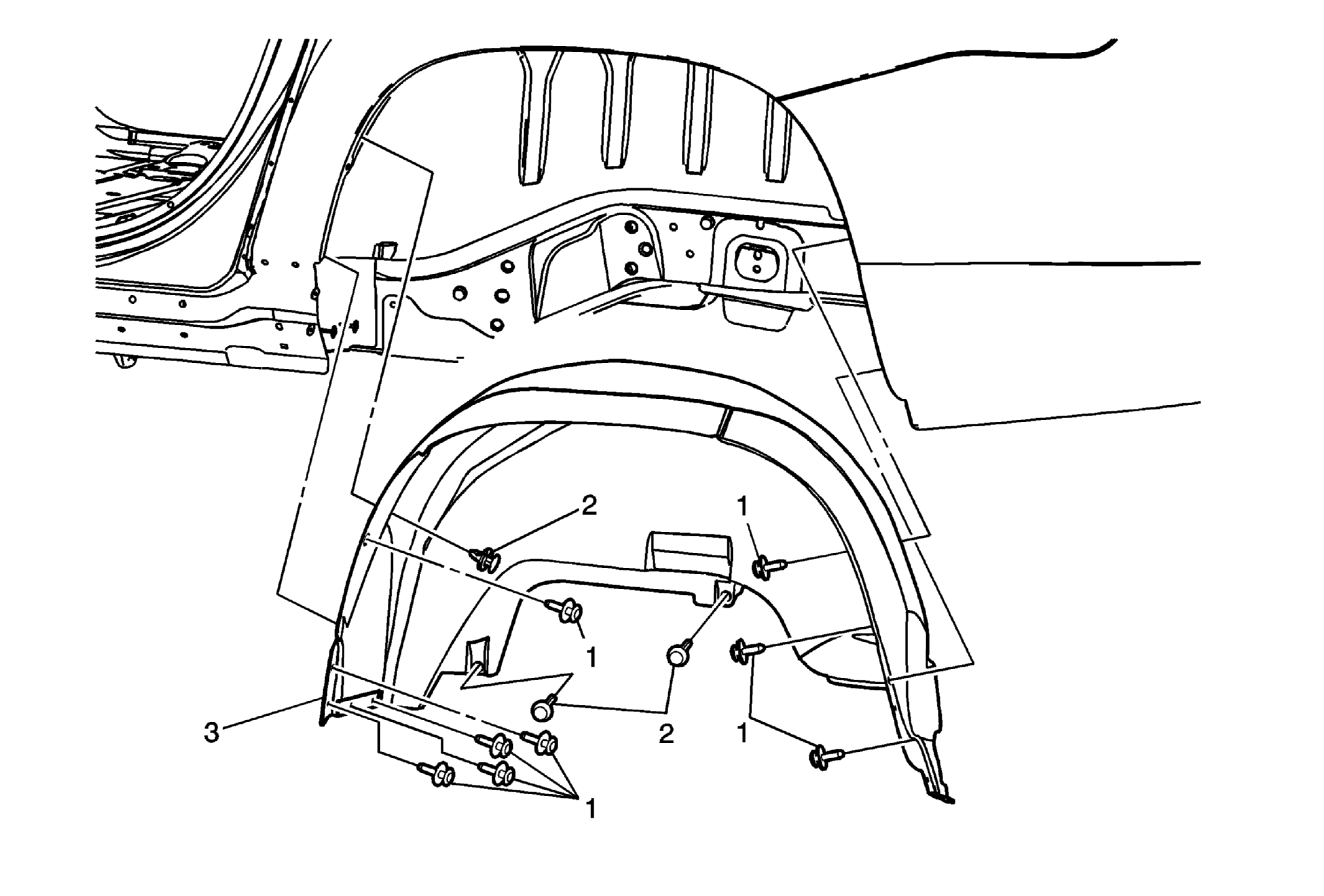

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Rear Wheelhouse Liner Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Rear Wheelhouse Liner Plastic Retainer (Qty: 3) |
| 3 | Rear Wheelhouse Liner Procedure: Install using the reverse procedure, with the proper alignment of the rear wheelhouse liner. |
