Rear Bumper Fascia Reflector Replacement
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

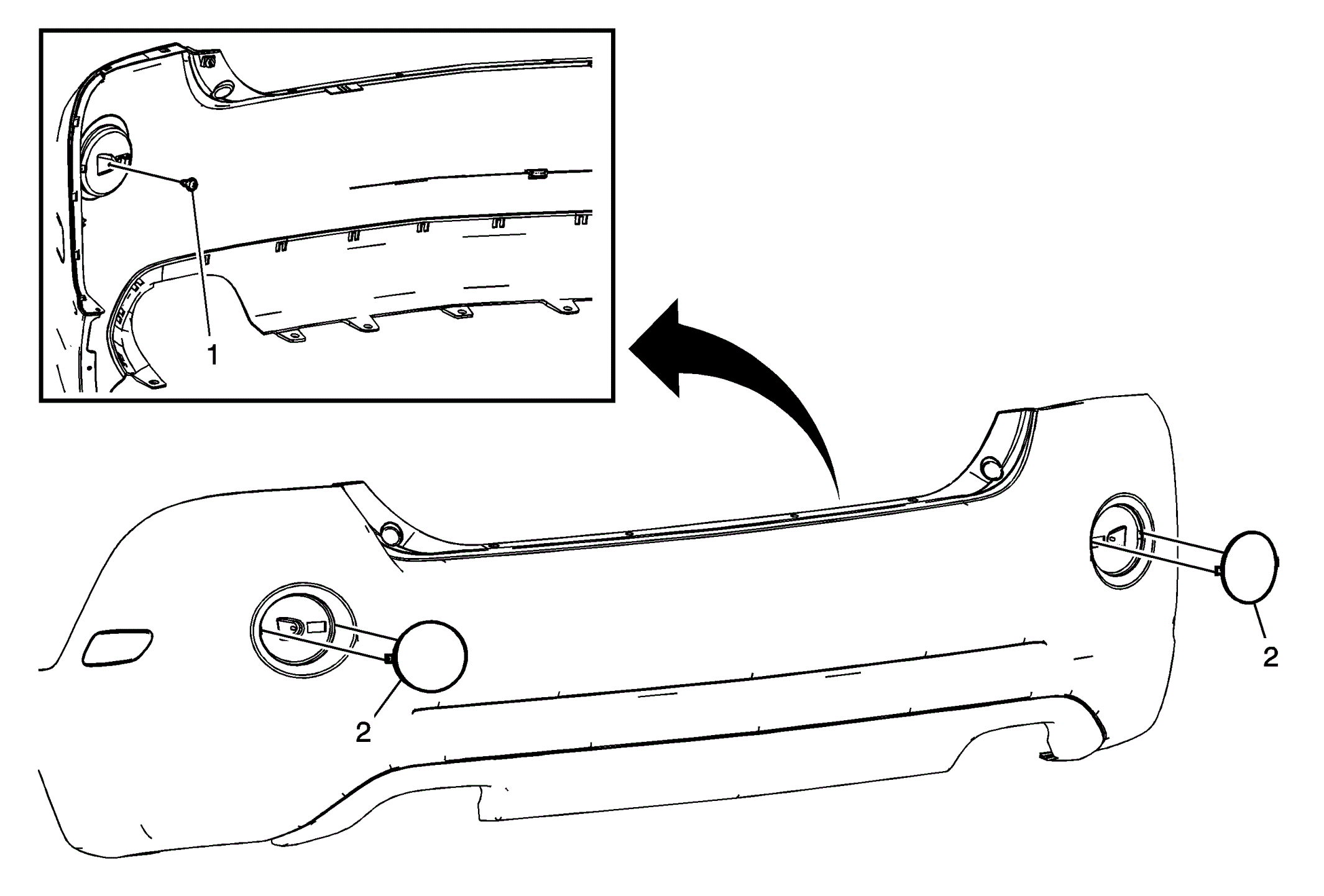

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear bumper. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Fascia Bolt (Qty: 2) |
| 2 | Rear Bumper Fascia Reflector
CAUTION:
Refer to Fastener Caution
. Tip: Push forward on the tab in order to remove the reflector from the fascia. Tighten: 10 N.m (89 lb in) |
