Front Bumper Upper Fascia Replacement (Hybrid)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

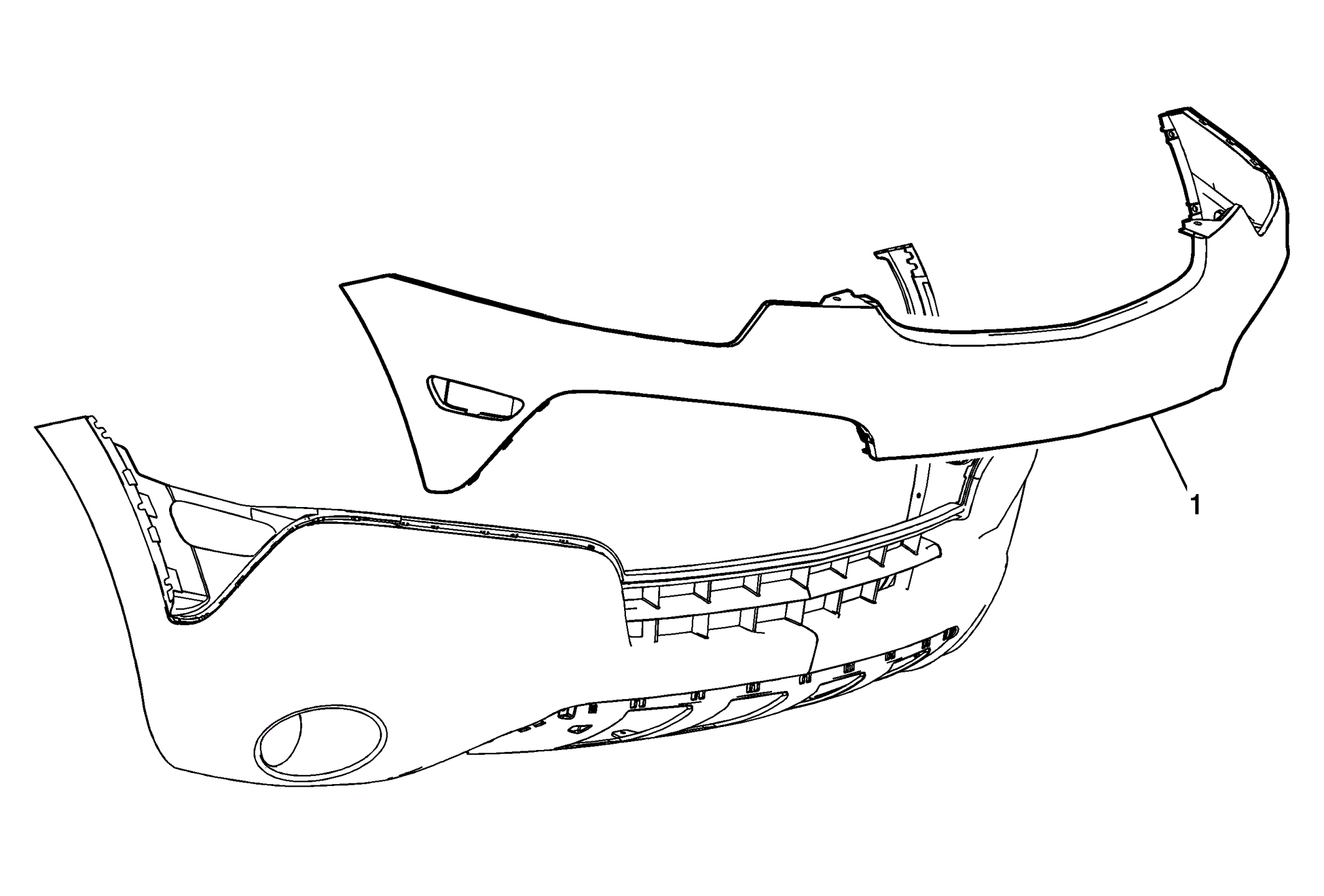

Fig 1: Front Bumper Upper Fascia Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Support the vehicle with suitable safety stands. Refer to Lifting and Jacking the Vehicle . Remove the front lower bumper. Refer to Front Bumper Lower Fascia Replacement (Hybrid) . Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) . Remove the front bumper radiator grille. Refer to Radiator Upper Grille Replacement (Captiva) or Radiator Upper Grille Replacement (VUE) .
1	Front Bumper Upper Fascia Procedure Disconnect the electrical connectors/harnesses as needed. Transfer any parts as needed.

Callout

Component Name

Preliminary Procedures

Raise the vehicle. Support the vehicle with suitable safety stands. Refer to Lifting and Jacking the Vehicle .
Remove the front lower bumper. Refer to Front Bumper Lower Fascia Replacement (Hybrid) .
Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Base) or Front Bumper Fascia Replacement (Red Line) .
Remove the front bumper radiator grille. Refer to Radiator Upper Grille Replacement (Captiva) or Radiator Upper Grille Replacement (VUE) .

Front Bumper Upper Fascia

Procedure

Disconnect the electrical connectors/harnesses as needed.
Transfer any parts as needed.
