Rear Compartment Floor Stowage Compartment Support Replacement (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

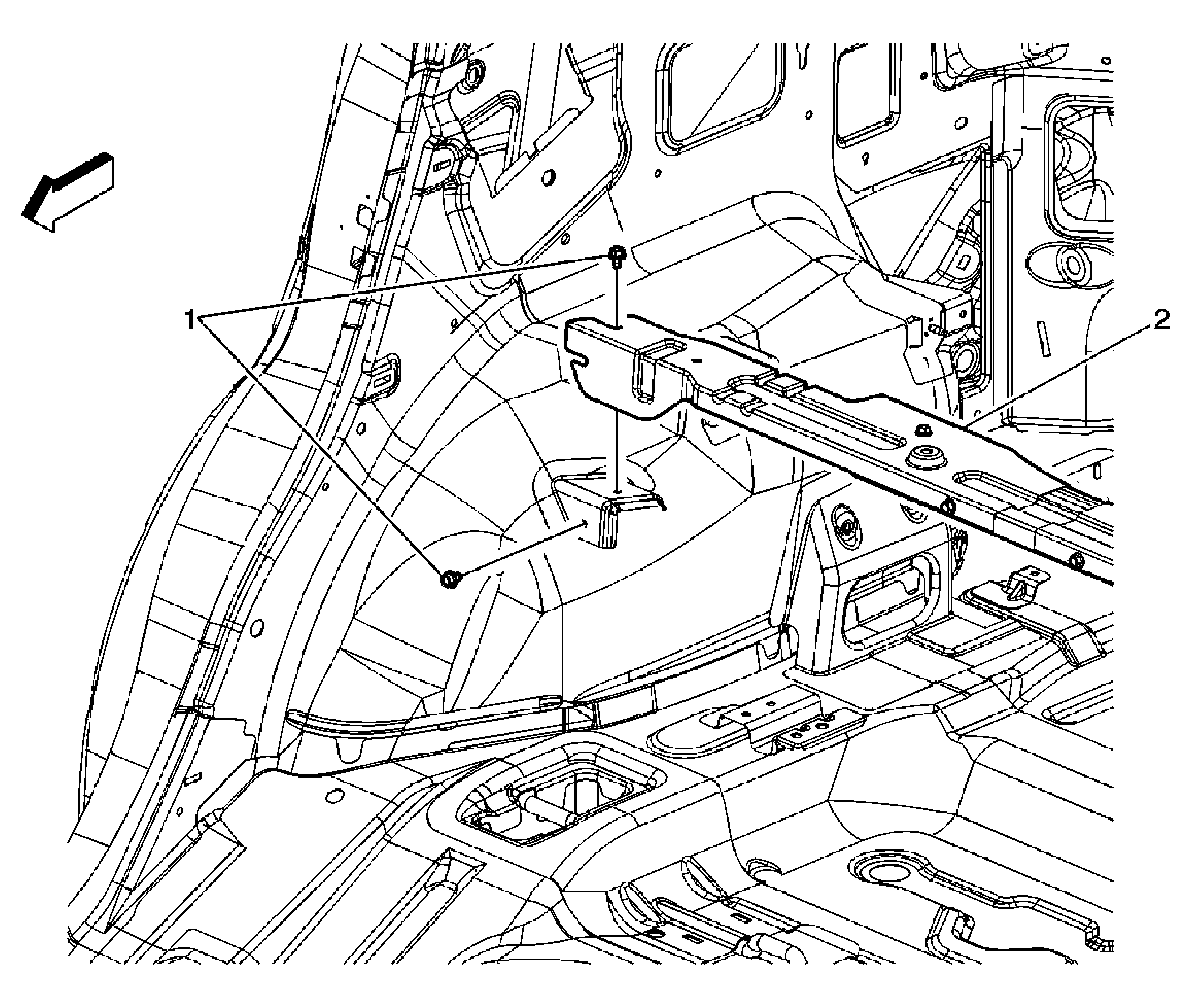

Fig 1: Rear Compartment Floor Stowage Compartment Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Replacement (HP7) or Rear Compartment Floor Stowage Compartment Replacement (Without HP7) . Unlatch the rear seat by pushing forward on the seat latch buttons located on the inboard side of the lower rear seat latches.
1	Rear Compartment Floor Stowage Compartment Support Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Rear Compartment Floor Stowage Compartment Support

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Replacement (HP7) or Rear Compartment Floor Stowage Compartment Replacement (Without HP7) .
Unlatch the rear seat by pushing forward on the seat latch buttons located on the inboard side of the lower rear seat latches.

Rear Compartment Floor Stowage Compartment Support Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Rear Compartment Floor Stowage Compartment Support
