Rear Compartment Floor Stowage Compartment Replacement (Without HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

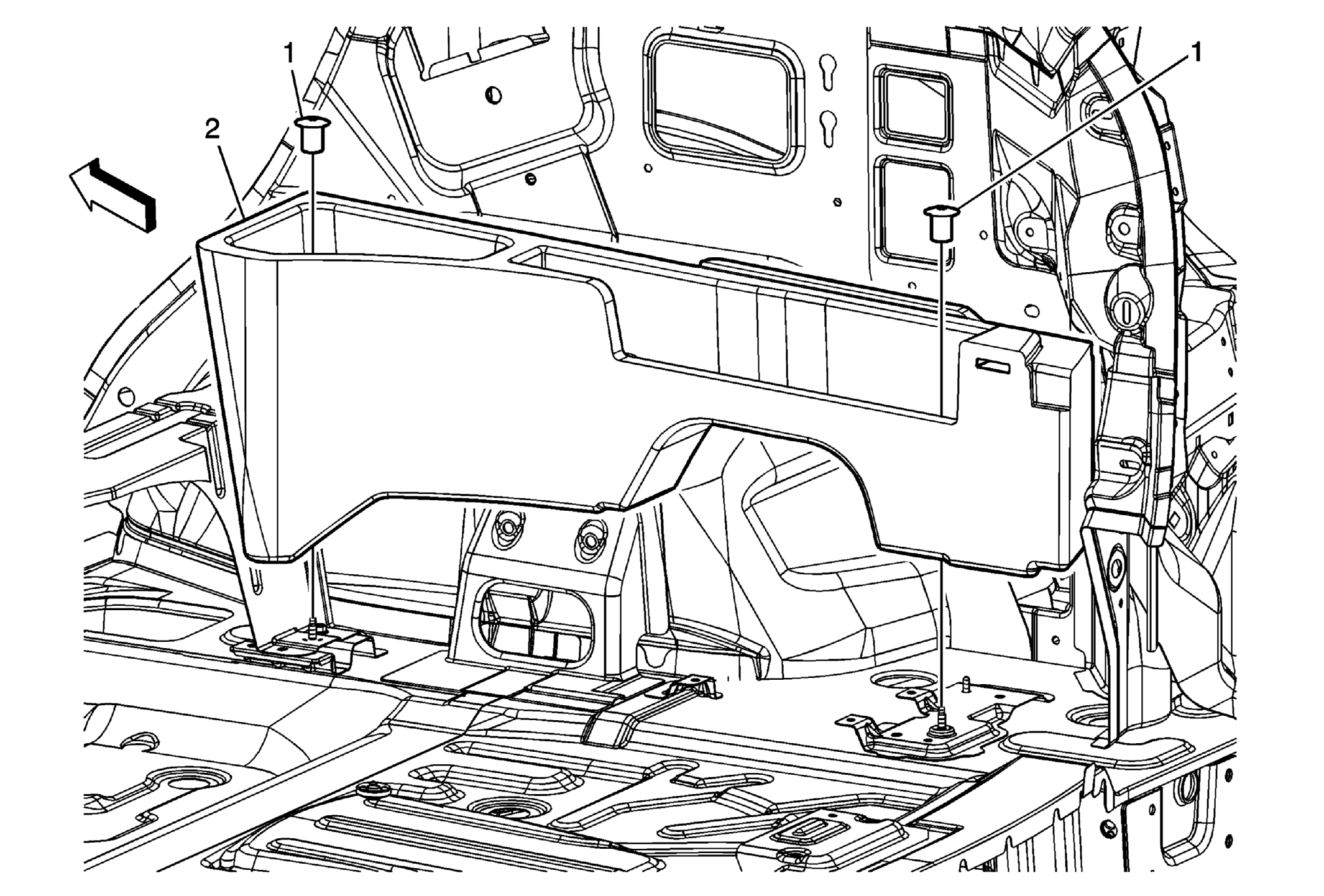

Fig 1: Rear Compartment Floor Stowage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement . Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .
1	Rear Compartment Floor Stowage Compartment Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Rear Compartment Floor Stowage Compartment Assembly

Callout

Component Name

Preliminary Procedures

Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .

Rear Compartment Floor Stowage Compartment Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 3 N.m (27 lb in)

Rear Compartment Floor Stowage Compartment Assembly
