Quarter Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

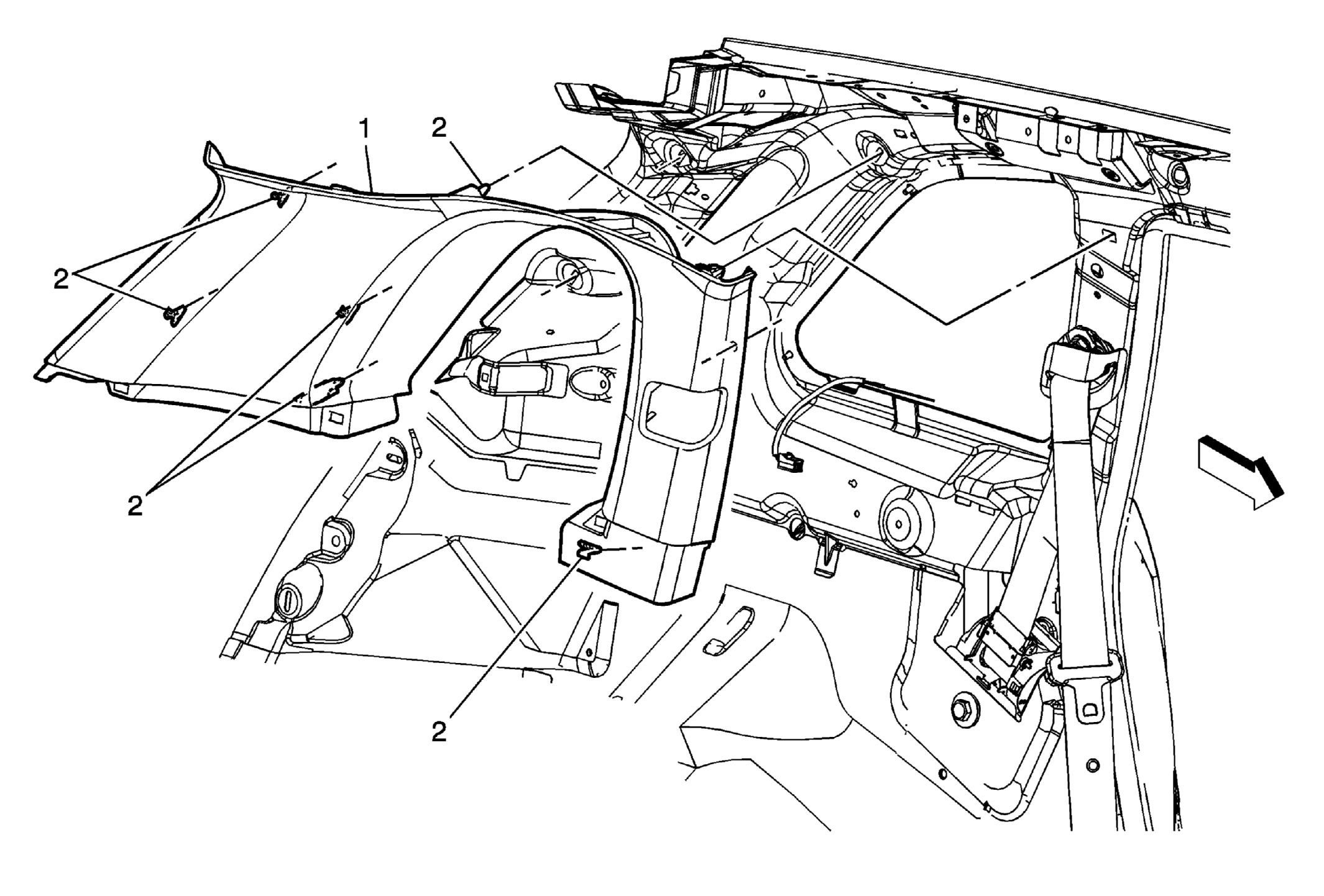

Fig 1: Rear Quarter Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
1	Rear Quarter Upper Trim Panel Assembly Procedure Loosen the rear compartment opening weather-strip. Route the seat belt through trim panel.
2	Rear Quarter Upper Trim Panel Clip (Qty: 6)

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .

Rear Quarter Upper Trim Panel Assembly

Procedure

Loosen the rear compartment opening weather-strip.
Route the seat belt through trim panel.

Rear Quarter Upper Trim Panel Clip (Qty: 6)
