Rear Wheel Opening Molding Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

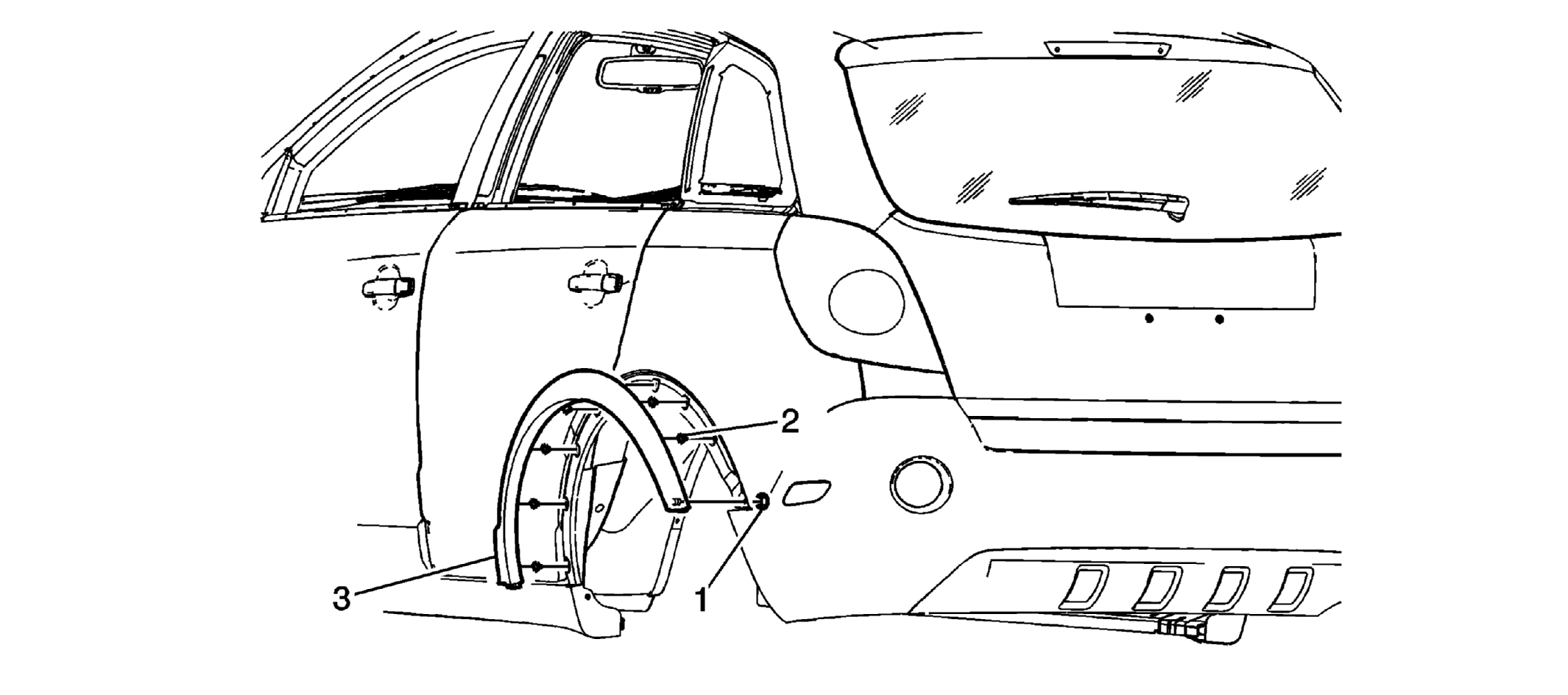

Fig 1: Rear Wheel Opening Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Panel Liner Replacement . Remove the inner rear wheel opening molding nut. Release the retainers from the wheelhouse. Release the rear wheel opening molding from the rear edge of the lower rocker panel molding. Remove the rear wheel opening molding from the vehicle.
1	Rear Wheel Opening Nut CAUTION: Refer to Fastener Caution . Tighten: 4.0 N.m(35 lb in)
2	Rear Wheel Opening Molding Retainer (Qty: 8) Tip: Replace any broken retainers upon re-assembly.
3	Rear Wheel Opening Molding
