Compressor Pressure Relief Valve Replacement (LAT)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

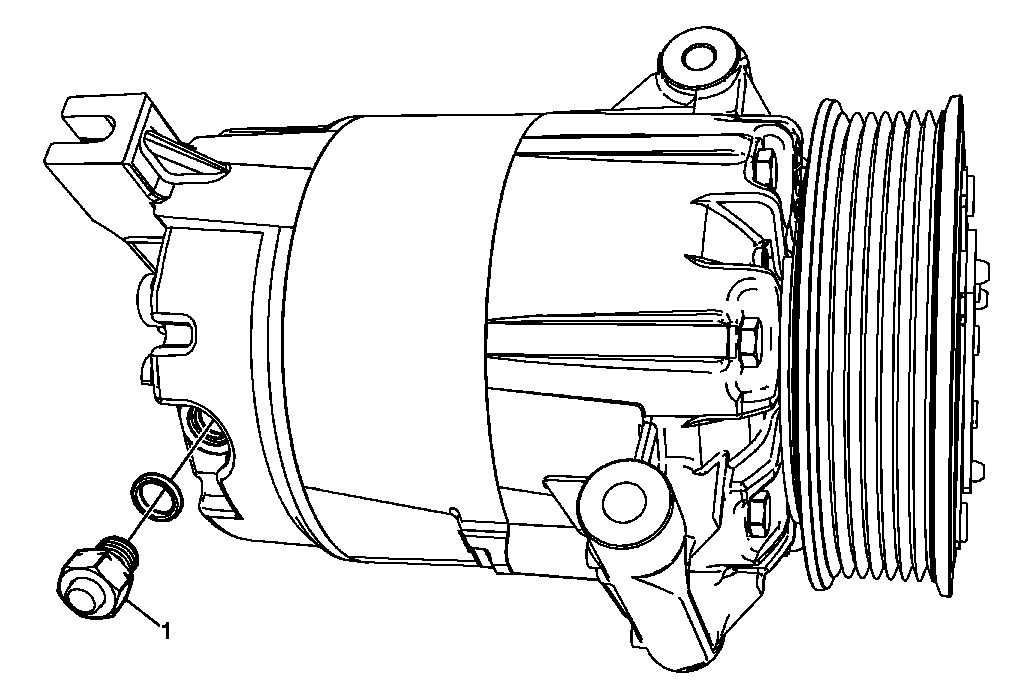

Fig 1: View Of Compressor Pressure Relief Valve (LAT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Recover the refrigerant. Refer to Refrigerant Recovery and Recharging . Remove the A/C compressor. Refer to Compressor Replacement (L61) or Compressor Replacement (L66) or Compressor Replacement (LAT) .
1	Compressor Pressure Relief Valve NOTE: Refer to Fastener Notice . Tip: Leak test the fittings of the components using J 39400-A . See Special Tools . Tighten: 8 N.m (70 lb in)

Callout

Component Name

Preliminary Procedures

Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .
Remove the A/C compressor. Refer to Compressor Replacement (L61) or Compressor Replacement (L66) or Compressor Replacement (LAT) .

Compressor Pressure Relief Valve

NOTE: Refer to Fastener Notice .

Tip: Leak test the fittings of the components using J 39400-A . See Special Tools .

Tighten: 8 N.m (70 lb in)
