Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

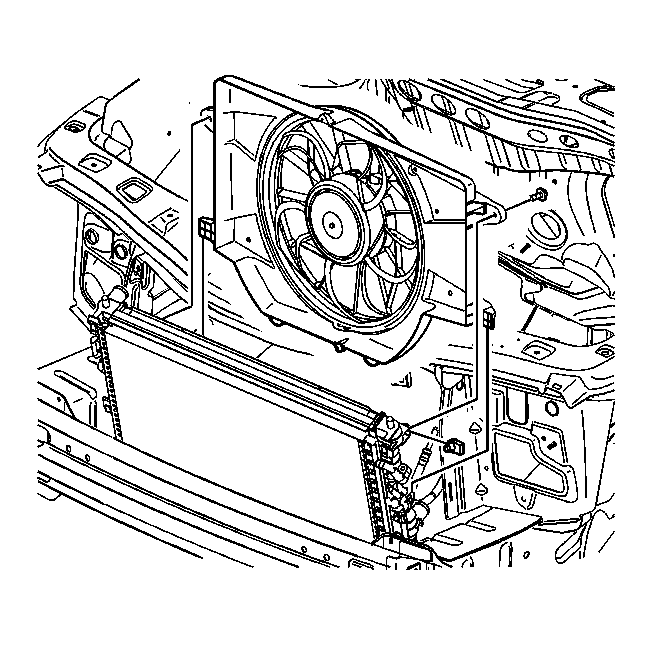

    Fig 1: View Of Fan Assembly From The Radiator
    GM1340661Courtesy of GENERAL MOTORS CORP.
  1. Install the fan assembly to the radiator by guiding the lower tabs into the corresponding hooks on the radiator.
    2. Fig 2: View Of Fan Assembly Bolts From The Radiator
    GM931378Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fan assembly bolts to the radiator.

    Tighten:  Tighten the bolts to 8 N.m (71 lb in).

  3. Position the CRFM assembly onto the lower mounts.
    4. Fig 3: View Of CRFM Mounting Brackets To The Radiator Support
    GM948980Courtesy of GENERAL MOTORS CORP.
  4. Install the CRFM mounting brackets to the radiator support.
  5. Install the CRFM mounting bracket bolts to the radiator support.

    Tighten:  Tighten the bolts to 8 N.m (71 lb in).

    6. Fig 4: View Of Radiator Outlet (L61) Hose Clamp
    GM931390Courtesy of GENERAL MOTORS CORP.
  6. Install the radiator outlet hose to the radiator.
  7. Install the radiator outlet hose clamp to the radiator.
    8. Fig 5: View Of Radiator Inlet Hose To The Radiator
    GM931395Courtesy of GENERAL MOTORS CORP.
  8. Install the radiator inlet hose to the radiator.
  9. Install the radiator inlet hose clamp to the radiator.
  10. Attach the 3-phase cables and Generator Control Module.
    11. Fig 6: View Of CRFM Closeout/Splash Panel To Condenser
    GM948958Courtesy of GENERAL MOTORS CORP.
  11. Install the CRFM closeout panel to the condenser.
  12. Install the CRFM closeout panel retainers to the condenser.
    13. Fig 7: View Of Battery Box Inlet Air Duct
    GM948926Courtesy of GENERAL MOTORS CORP.
  13. Install the battery box inlet air duct.
    14. Fig 8: Connecting Transaxle Lines
    GM949017Courtesy of GENERAL MOTORS CORP.
  14. Clip the transmission cooler lines to the fan assembly.
    15. Fig 9: View Of Clip Wire Harness From The Fan Assembly
    GM951431Courtesy of GENERAL MOTORS CORP.
  15. Clip the engine wire harness to fan assembly.
    16. Fig 10: View Of Cooling Fan & Shroud (L61)
    GM947025Courtesy of GENERAL MOTORS CORP.
  16. Install the electrical connector to the fan motor.
  17. Install the front fascia. Refer to Front Bumper Fascia Replacement (Redline) or Front Bumper Fascia Replacement (Standard) .
  18. Fill the cooling system. Refer to Draining and Filling Cooling System (Static Fill)  or Draining and Filling Cooling System (GE 47716 Fill) .
