Front Bumper Fascia Replacement (Redline)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

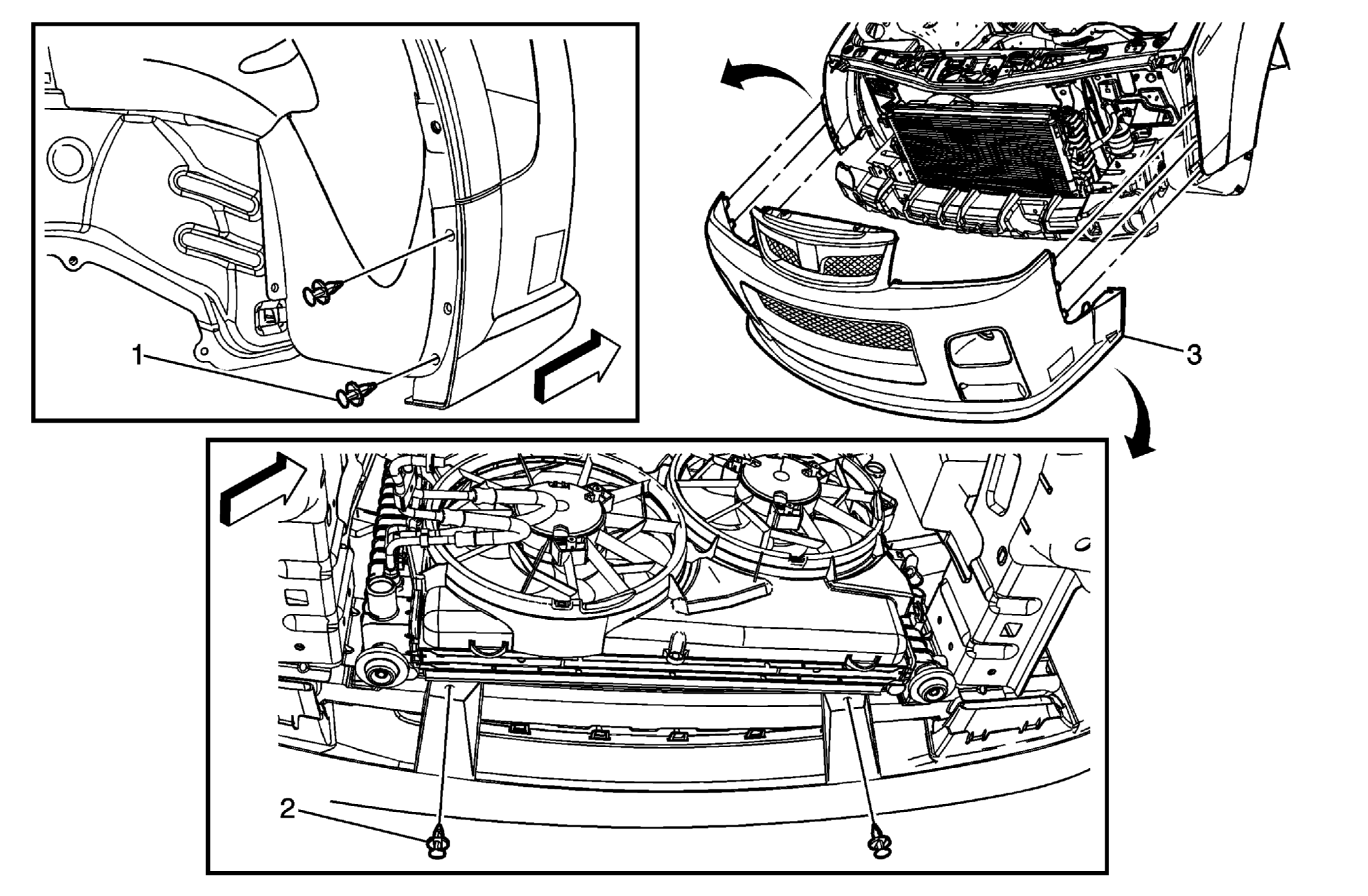

Fig 1: View Of Front Bumper Fascia & Retainers (Redline)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedures Remove the head lamp assemblies. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement . Remove the front bumper fascia support. Refer to Front Bumper Fascia Support Replacement .
1	Push Pin Retainer (Qty: 2)
2	Push Pin Retainer (Qty: 2)
3	Front Bumper Fascia
