Removal Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the front floor console. Refer to Front Floor Console Replacement .
  3. Ensure that the park brake lever is in the fully released position.
    4. Fig 1: Locating Parking Brake Cable Adjusting Nut
    GM891460Courtesy of GENERAL MOTORS CORP.
  4. Release the tension from the park brake cable system at the front cable adjusting nut (1).
  5. Using ONLY hand tools, loosen the adjusting nut (1) completely to the end of the front cable threaded rod.
    6. Fig 2: Disconnecting/Connecting Electrical Connector From Park Brake Warning Lamp Switch
    GM929748Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the electrical connector from the park brake warning lamp switch.

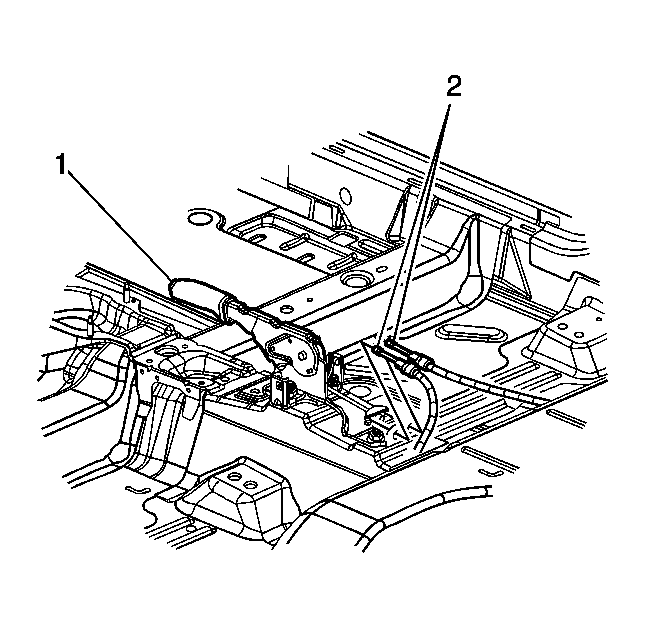

    7. Fig 3: View Of Rear Park Brake Cable & Cable Equalizer
    GM891451Courtesy of GENERAL MOTORS CORP.
  7. With the park brake lever (1) in the released position, release the rear park brake cable (2) ends from the cable equalizer.
  8. Release the rear cable fittings from the park brake lever bracket.
    9. Fig 4: Removing/Installing Park Brake Level Assembly
    GM926618Courtesy of GENERAL MOTORS CORP.
  9. Remove the park brake lever mounting nuts.
  10. Remove the park brake lever assembly from the vehicle.
