Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing/Installing Park Brake Level Assembly
    GM926618Courtesy of GENERAL MOTORS CORP.
  1. Install the park brake lever assembly to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the park brake lever assembly mounting nuts.

    Tighten:  Tighten the nuts to 25 N.m (18 lb ft).

    3. Fig 2: View Of Cable Ends & Cable Equalizer
    GM926640Courtesy of GENERAL MOTORS CORP.
  3. Secure the rear cable fittings to the park brake lever bracket. Attempt to pull the park brake cables free of the lever bracket, to ensure that the retaining tabs on the fittings are properly secured.
  4. Install the cable ends to the cable equalizer.

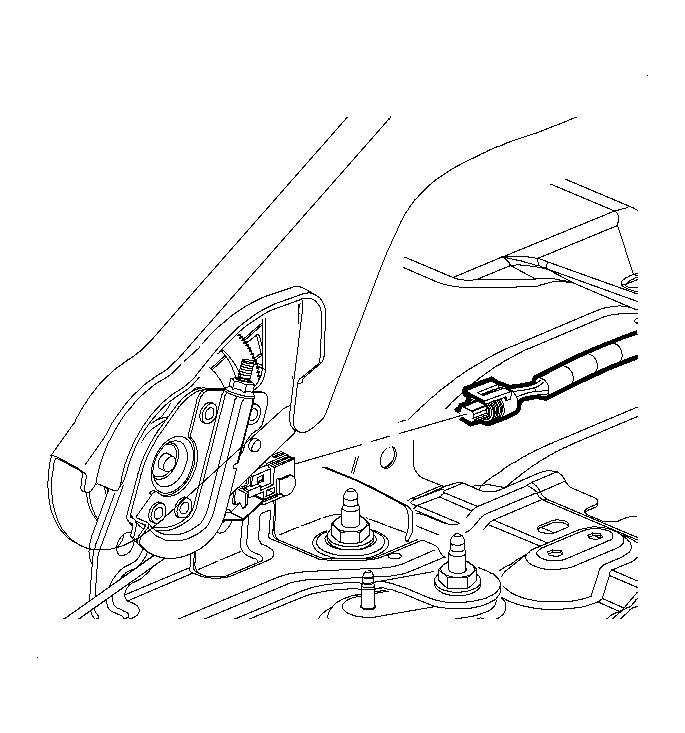

    5. Fig 3: Disconnecting/Connecting Electrical Connector From Park Brake Warning Lamp Switch
    GM929748Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the park brake warning lamp switch.
  6. Adjust the park brake cable tension. Refer to Park Brake Adjustment .
  7. Install the front floor console. Refer to Front Floor Console Replacement .
  8. Enable the SIR system. Refer to SIR Disabling and Enabling .
