Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

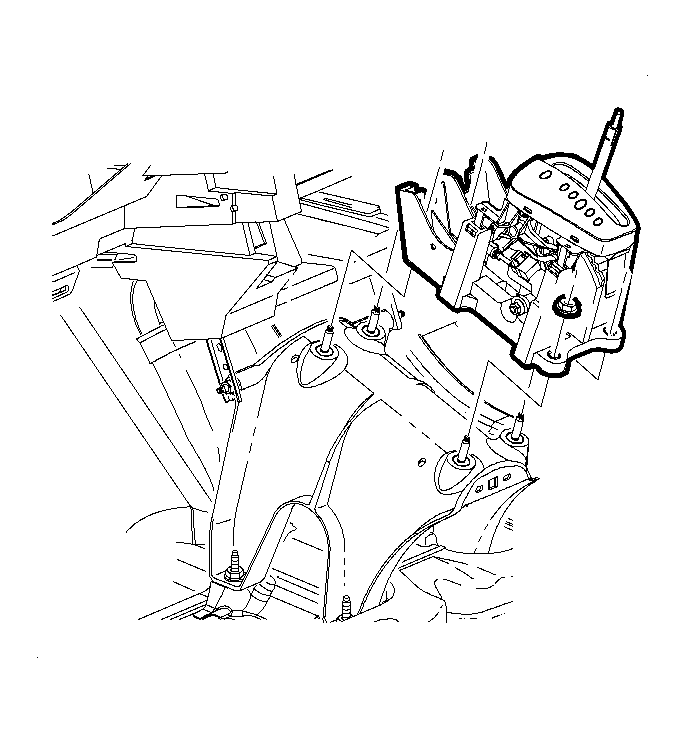

Fig 1: Control Assembly & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the control assembly.

NOTE: Refer to Fastener Notice .

Install the control assembly bolts.
Tighten: Tighten the control assembly to bracket bolts to 25 N.m (18 lb ft).

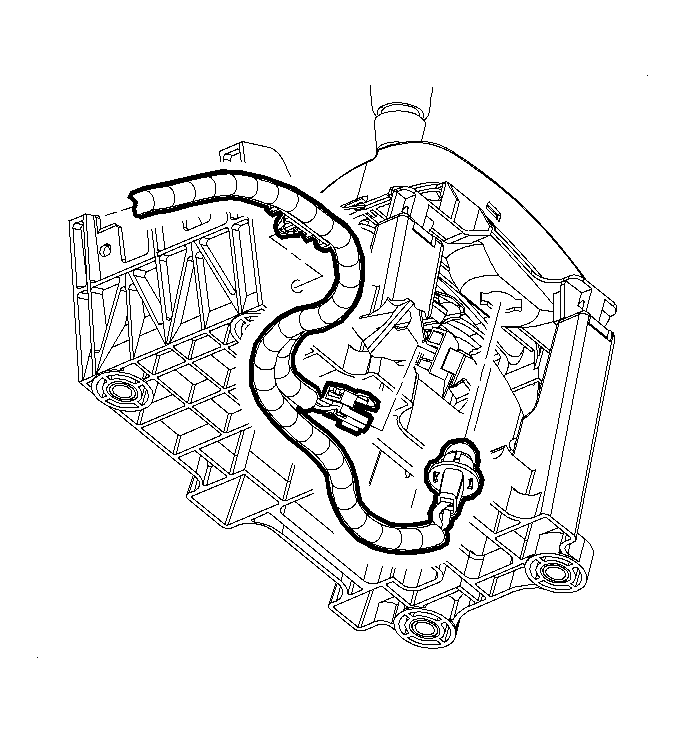

Fig 2: Control Assembly Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the control assembly electrical connectors.

Fig 3: Indicator Bulb

Courtesy of GENERAL MOTORS CORP.

Install the indicator bulb by inserting and rotating one-quarter turn.

Fig 4: Park Lock Cable Assembly & Pin On Control Assembly

Courtesy of GENERAL MOTORS CORP.

Install the park lock cable onto the control assembly using a new clip.
Connect the park lock cable onto the control assembly pin.

Fig 5: Shiftier Cable Retainer Clip, Cable & Control Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The secondary clip is not required for service. Make sure the shifter cable is fully engaged into the shiftier control.

Install the shifter cable onto the control assembly. Secure with a new shiftier cable retainer clip.
Connect the shifter cable onto the control assembly pin.
Install the right and left console trim panels. Refer to Front Floor Console Side Trim Panel Replacement - Right Side and Front Floor Console Side Trim Panel Replacement - Left Side .
Enable SIR system. Refer to SIR Disabling and Enabling .
