Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

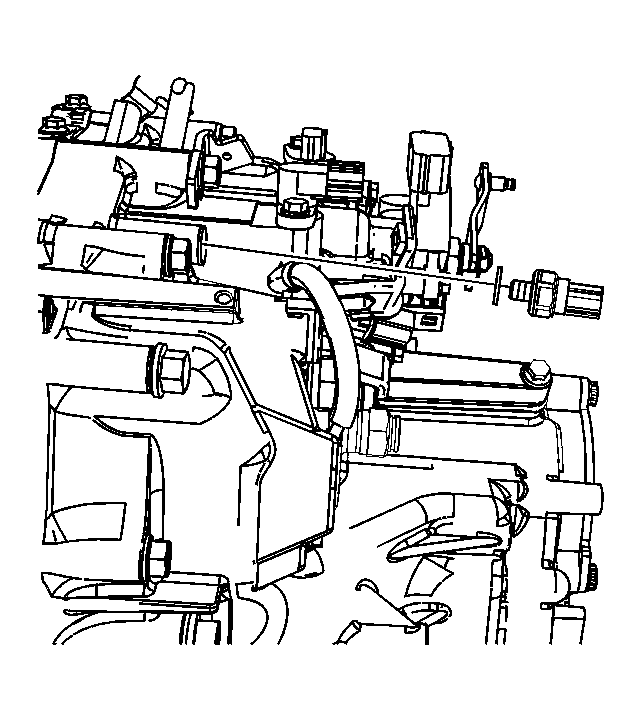

    Fig 1: 3rd Clutch Pressure Switch
    GM1233348Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the 3rd clutch pressure switch and washer.

    Tighten:  Tighten the input speed sensor bolt to 20 N.m (14 lb ft).

  2. Connect the wiring harness to the 3rd clutch pressure switch.
  3. Fill the transmission with transmission fluid. Refer to Transmission Fluid Replacement .
  4. Lower the vehicle.
