Transmission Fluid Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine until the transmission fluid temperature reaches 60-70°C (140-158°F).
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
    3. Fig 1: Transmission Fluid Gasket & Drain Plug
    GM1227154Courtesy of GENERAL MOTORS CORP.
  3. Remove the drain plug from the transmission. Allow the fluid to completely drain.
  4. Remove the gasket from the drain plug and discard.
  5. Install the new gasket on the drain plug.
    6. NOTE: Refer to Fastener Notice .
  6. Install the drain plug into the transmission.

    Tighten:  Tighten the drain plug to 49 N.m (36 lb ft).

  7. Lower the vehicle.
  8. Remove the outlet resonator/duct assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .

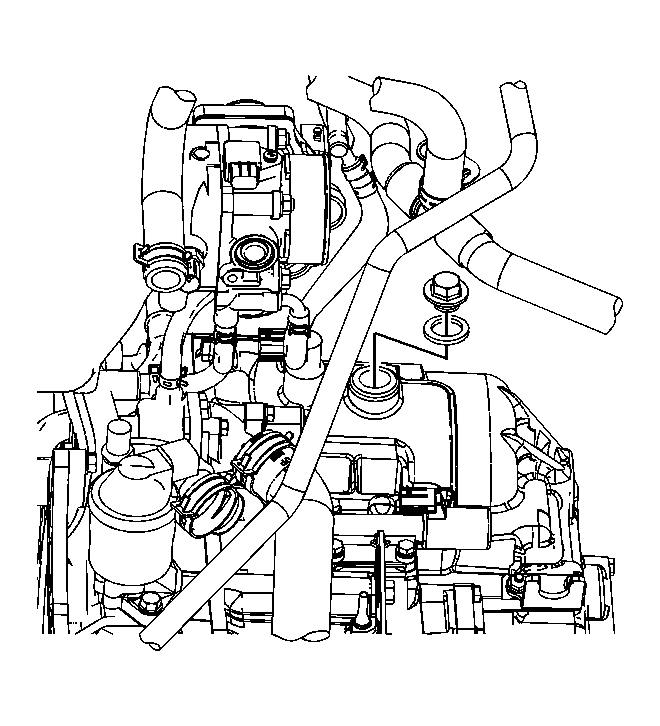

    9. Fig 2: ATF Fill Plug
    GM1338264Courtesy of GENERAL MOTORS CORP.
  9. Remove the transmission fill plug.
    10. IMPORTANT: Do not use ATF (P/N 21005966 or P/N 21019223). These fluids are not compatible with this transmission.
  10. For AWD vehicles, add approximately 4.1 Liters (4.3 Qt) of Saturn ATF-Z 1 fluid (P/N 22717466) through the transmission fill plug.

    For FWD vehicles, add approximately 4.5 Liters (4.8 Qt) of Saturn ATF-Z 1 fluid (P/N 22717466) through the transmission fill plug.

  11. With the vehicle on a flat level surface, start the engine and operate until the transmission fluid temperature reaches 60-70°C (140-158°F).
  12. Apply the parking brake.
  13. Depress the brake pedal and move the shift lever slowly through all gear ranges, pausing approximately 3 seconds in each range.
  14. Return the shift lever to the park position.
  15. Turn the engine OFF.
  16. Pull the transmission level indicator from the transmission in order to check the proper fluid level on the gage.
  17. If the fluid is not within the proper range, adjust as necessary.
    18. Fig 3: ATF Fill Plug
    GM1338264Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Make sure the ATF fill plug is clean and free of debris.
    NOTE: Refer to Fastener Notice .
  18. Install the ATF fill plug into the transmission with a new sealing washer.

    Tighten:  Tighten the ATF fill plug to 44 N.m (33 lb ft).

  19. Install the outlet resonator/duct assembly. Refer to Air Cleaner Resonator Outlet Duct Replacement .
