Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

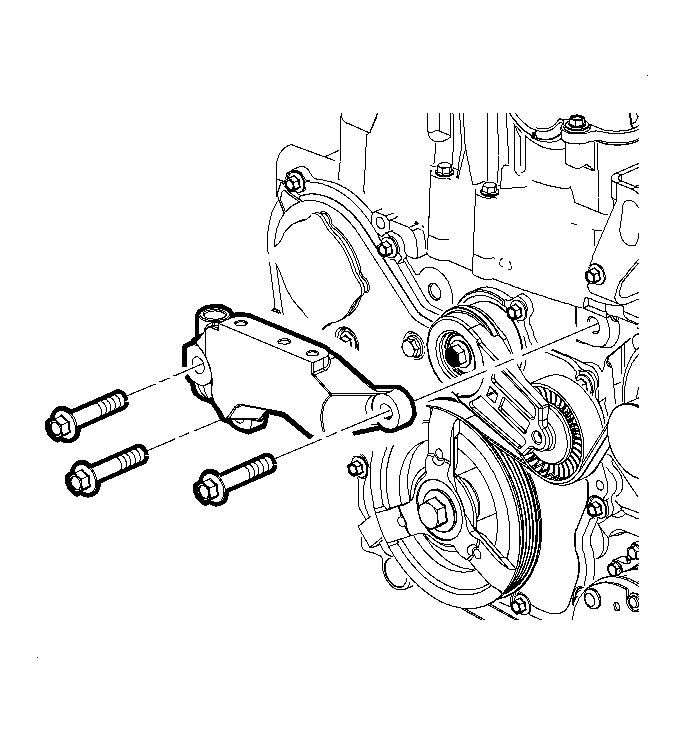

    Fig 1: Removing/Installing Right Hand Engine Mount Bracket
    GM928024Courtesy of GENERAL MOTORS CORP.
  1. Place the mount bracket to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolts that secure the mount bracket to the engine.

    Tighten:  Tighten the bolts to 110 N.m (81 lb ft).

    3. Fig 2: View Of RH Engine Mount
    GM928650Courtesy of GENERAL MOTORS CORP.
  3. Install the right mount. Refer to Engine Mount Replacement - Right Side .
    4. IMPORTANT: Powertrain mounts must be tightened in sequence.
  4. Balance the powertrain mounts. Refer to Powertrain Mount Balance - Total Mounts .
