Fascia Grille Replacement (Redline)

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

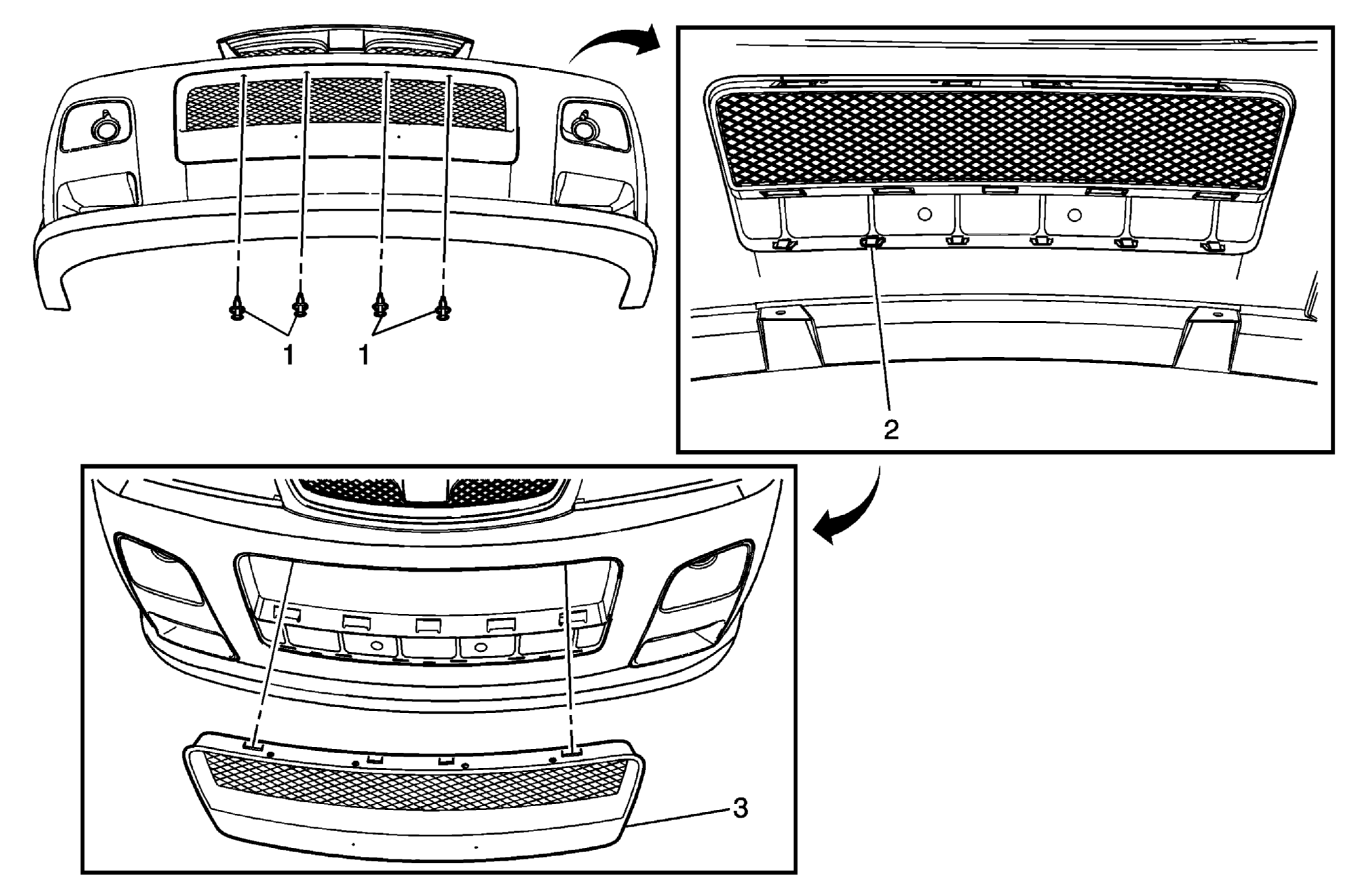

Fig 1: View Of Fascia Grille (Redline)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedure: Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Redline) or Front Bumper Fascia Replacement (Standard) .
1	Fascia Grille Retainer (Qty: 4)
2	Fascia Grille Release Tab (Qty: 6)
3	Fascia Grille
