Removal Procedure

Tools Required

• J 26941 Countershaft Bearing and Drive Axle Seal Remover. See Special Tools and Equipment .
• J 2619-01 Slide Hammer. See Special Tools and Equipment .

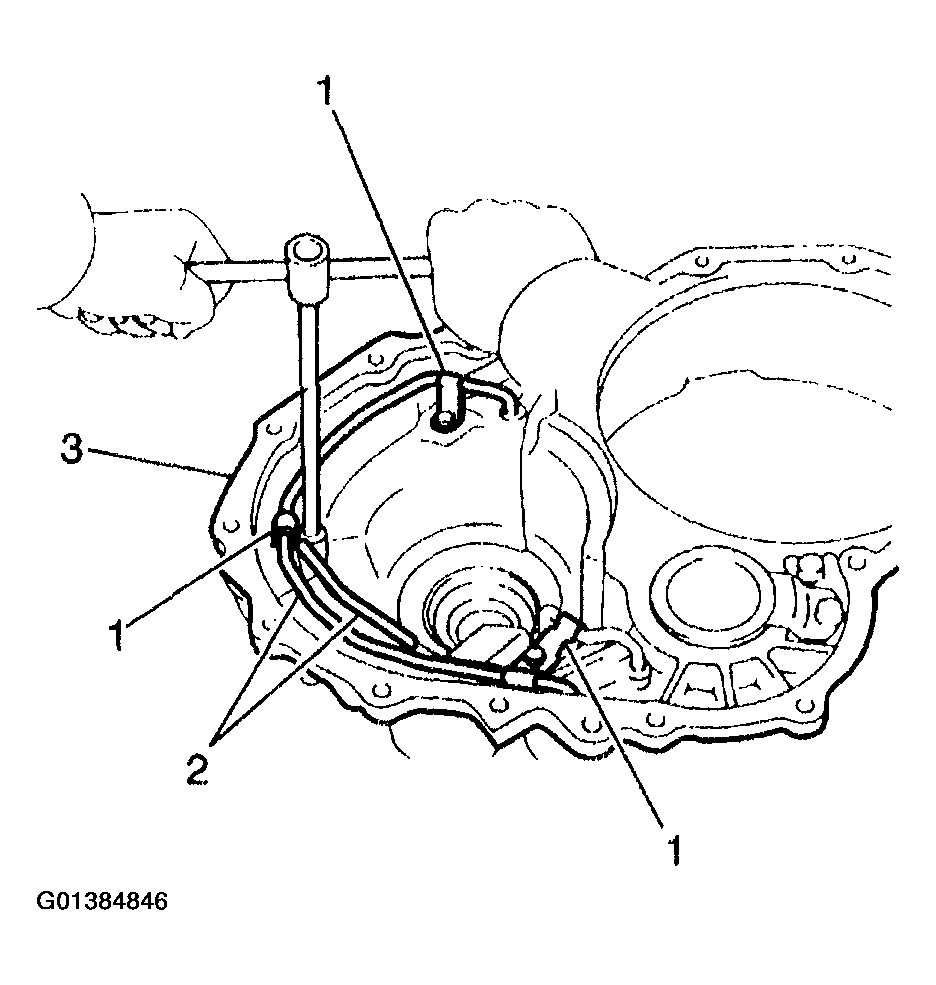

1. Remove the 3 bolts and the 3 fluid pipe clamps (1) from the torque converter housing (3).
   Fig 1: Removing Fluid Pipe Clamps & Bolts In Torque Converter Housing

   Courtesy of GENERAL MOTORS CORP.

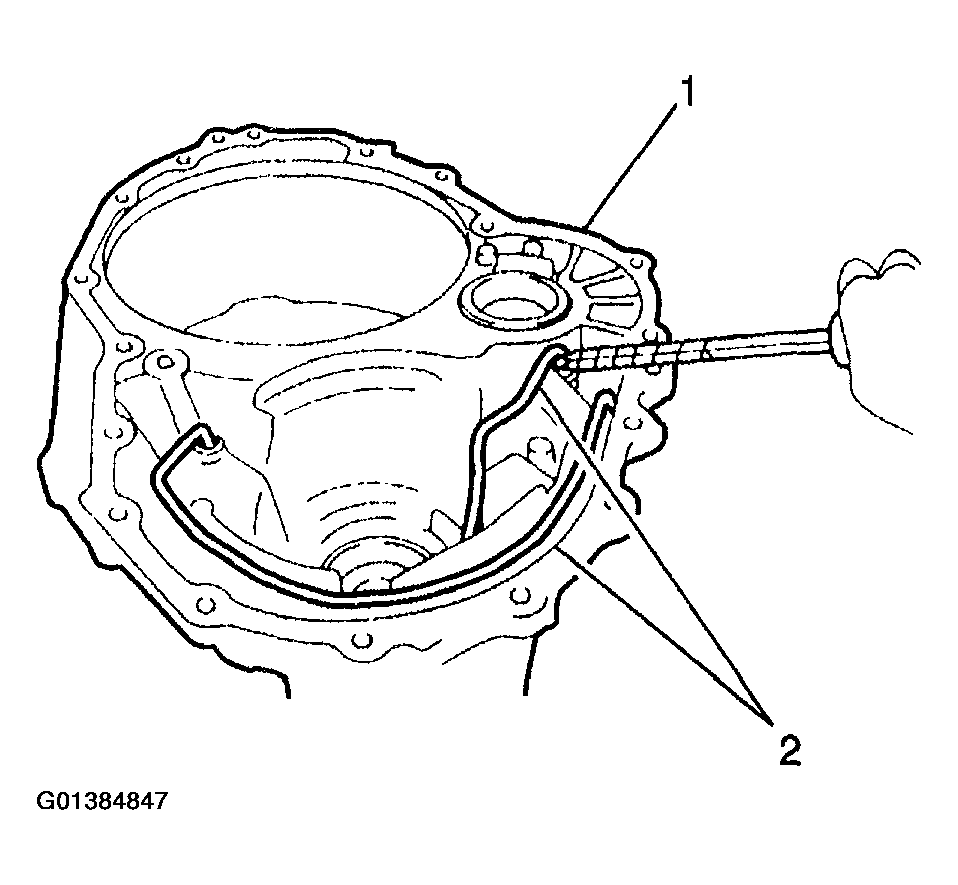

2. Remove the 2 fluid pipes (2) from the torque converter housing (1).
   Fig 2: Removing Fluid Pipes From Torque Converter Housing

   Courtesy of GENERAL MOTORS CORP.

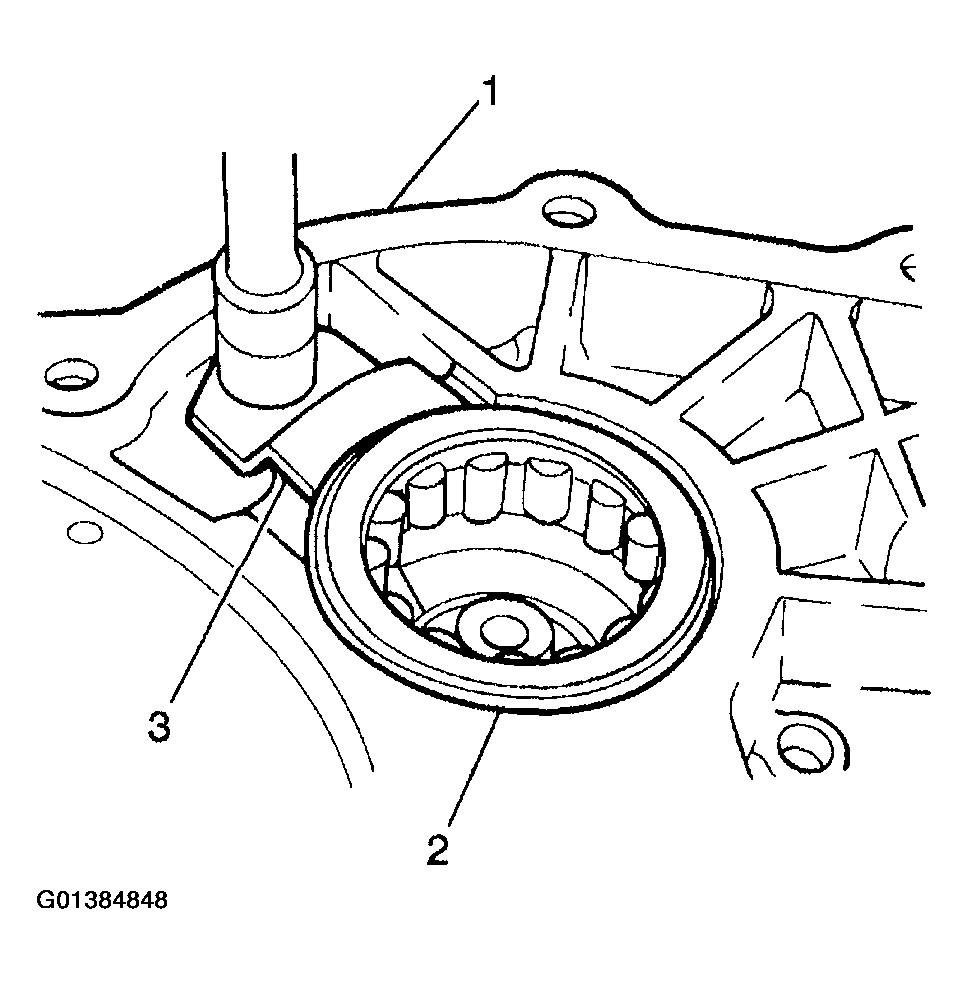

3. Remove the bolt and the countershaft front roller bearing retainer (3) from the torque converter housing (1).
   Fig 3: Removing Countershaft Front Roller Bearing Retainer & Bolt

   Courtesy of GENERAL MOTORS CORP.

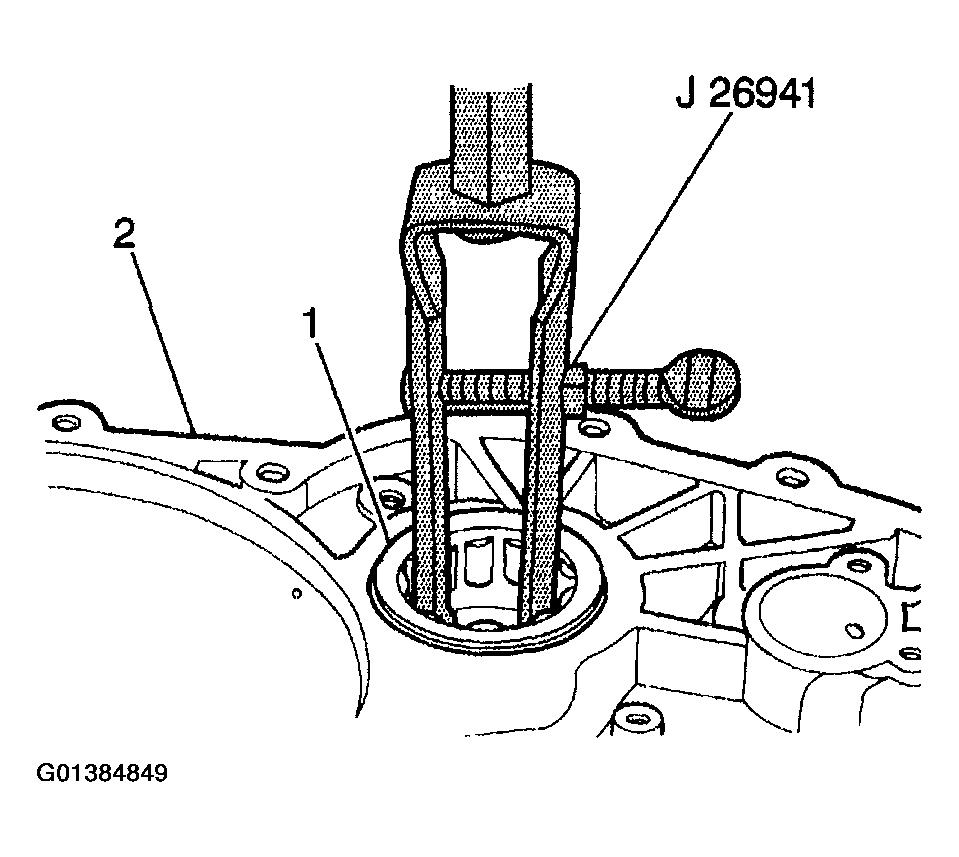

4. Use the J 26941  with a J 2619-01  in order to remove the countershaft front roller bearing (1) from the torque converter housing (2).
   Fig 4: View Of J 26941 & J 2619-01

   Courtesy of GENERAL MOTORS CORP.

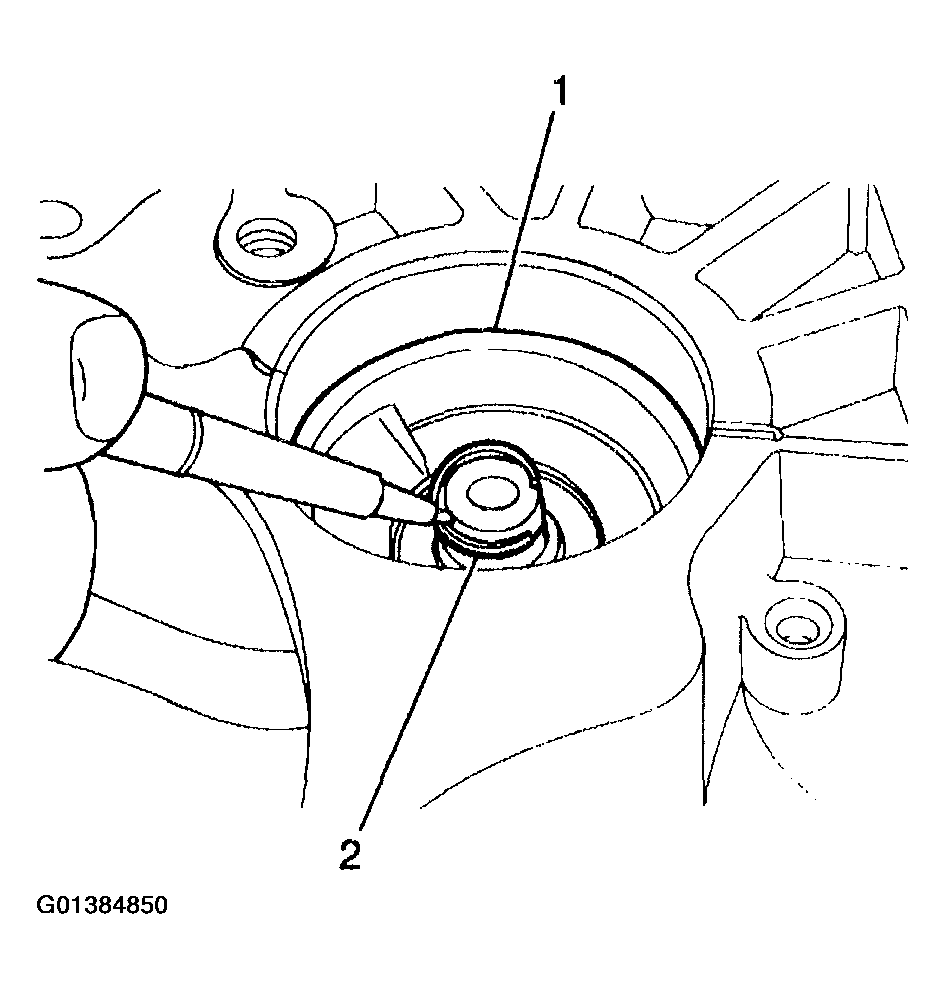

5. Remove the countershaft lubrication seal (2) from the countershaft front roller bearing bore (1).
6. Use the J 26941  with a J 2619-01  in order to remove the right drive axle shaft fluid seal from the torque converter housing.
   Fig 5: Removing Countershaft Lubrication Seal

   Courtesy of GENERAL MOTORS CORP.

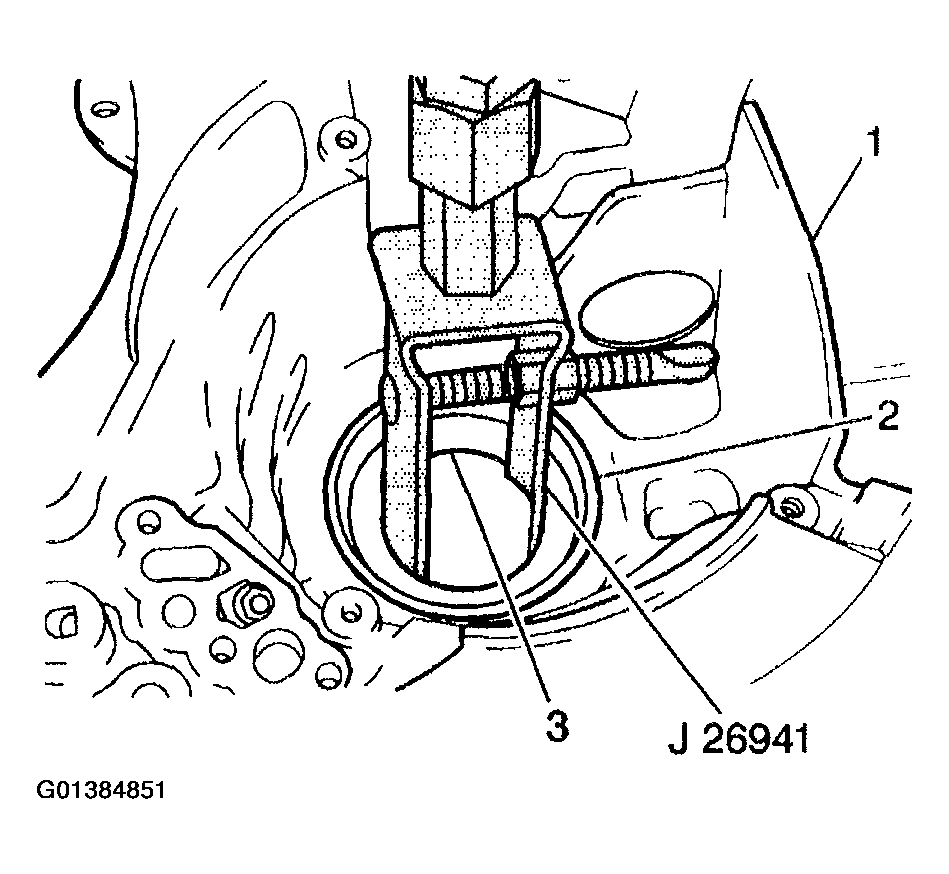

7. Use the J 26941  with a J 2619-01  in order to remove the following components from the torque converter housing (1):
   • The right differential side bearing race (2)
   • The right differential selective shim (3)
8. Clean the sealant from the torque converter housing-to-transaxle case mating surfaces.
   Fig 6: Identifying J 26941 & J 2619-01

   Courtesy of GENERAL MOTORS CORP.
