Special Tools and Equipment

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

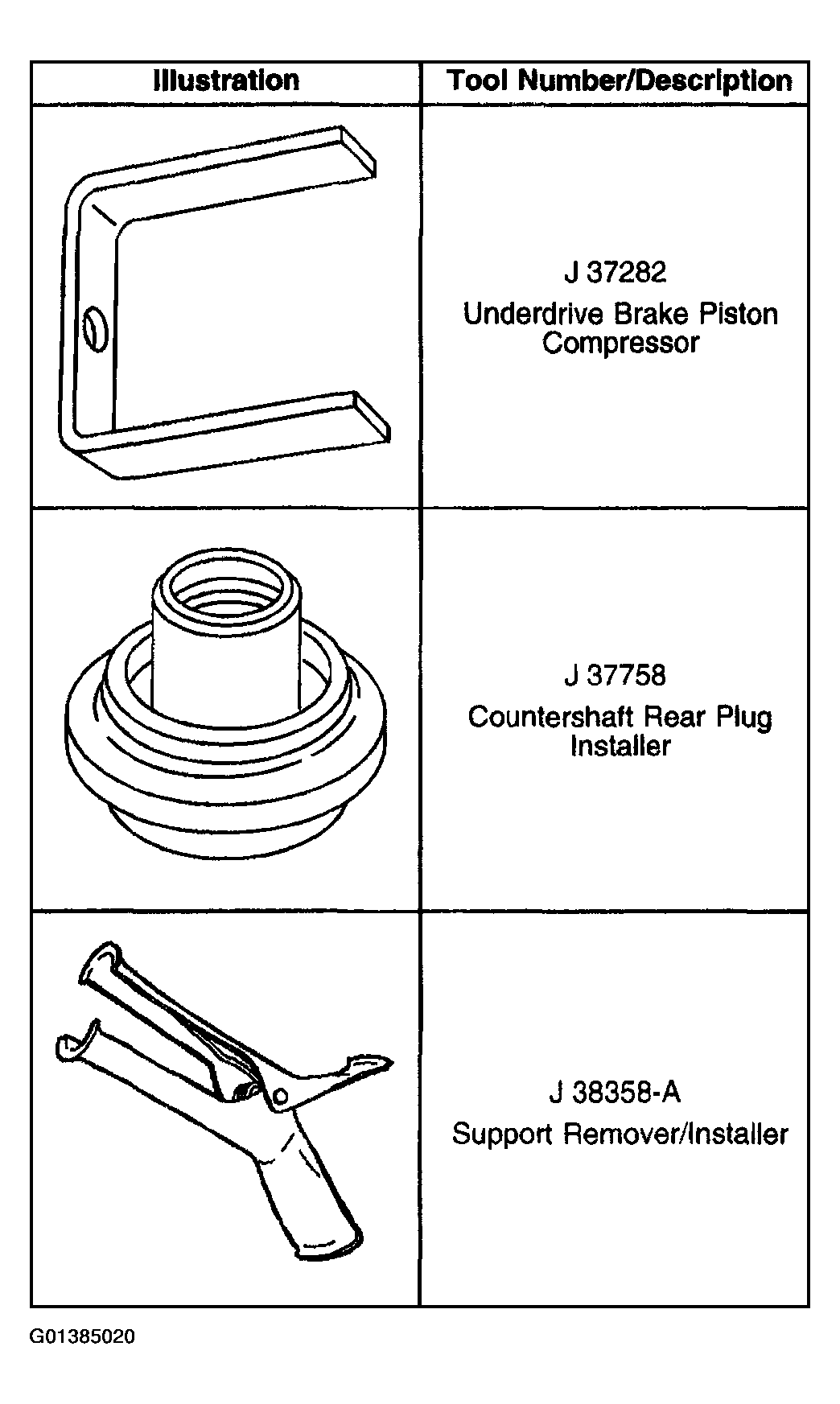

Fig 1: Special Tools & Equipment

Courtesy of GENERAL MOTORS CORP.

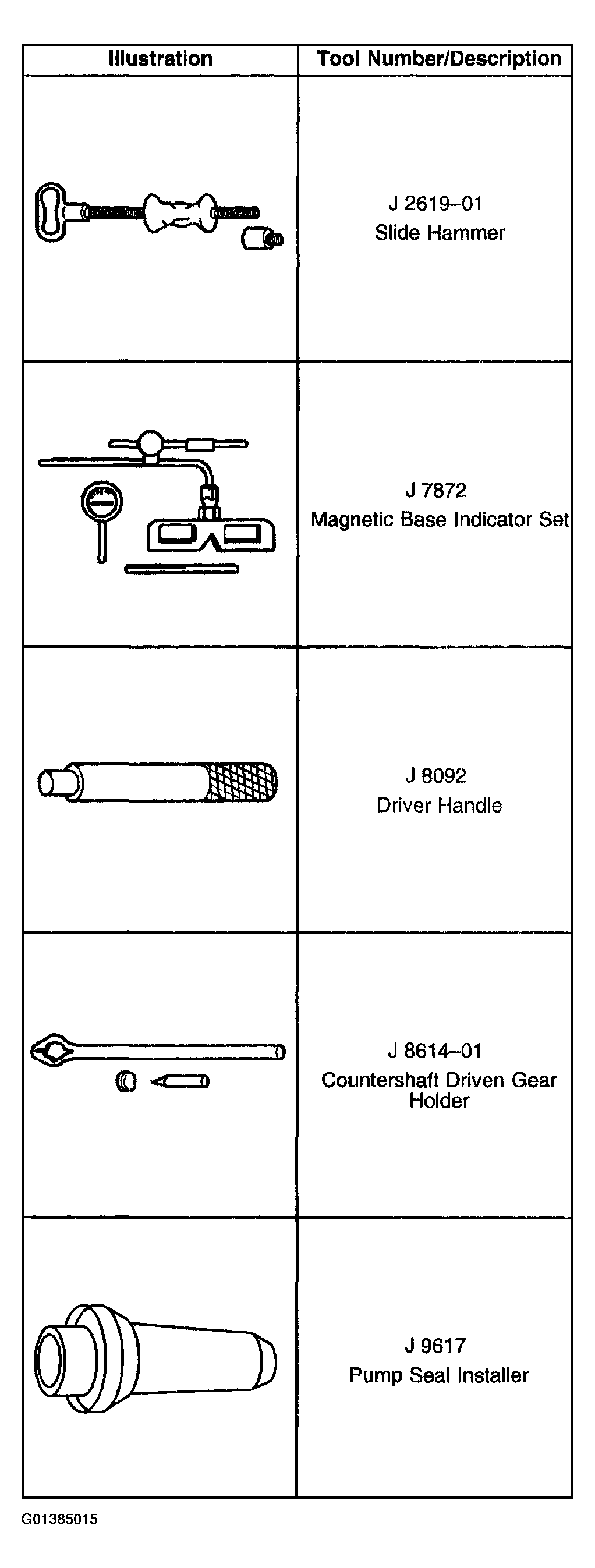

Fig 2: Special Tools & Equipment

Courtesy of GENERAL MOTORS CORP.

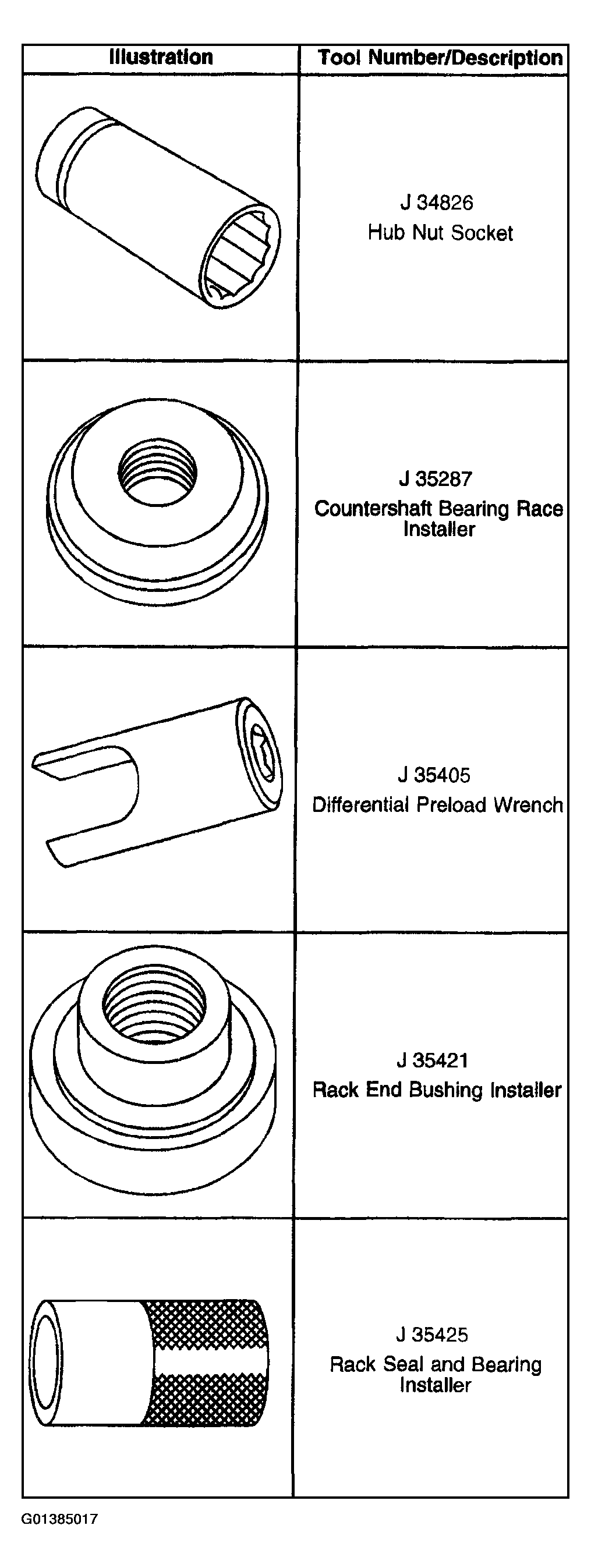

Fig 3: Special Tools & Equipment

Courtesy of GENERAL MOTORS CORP.

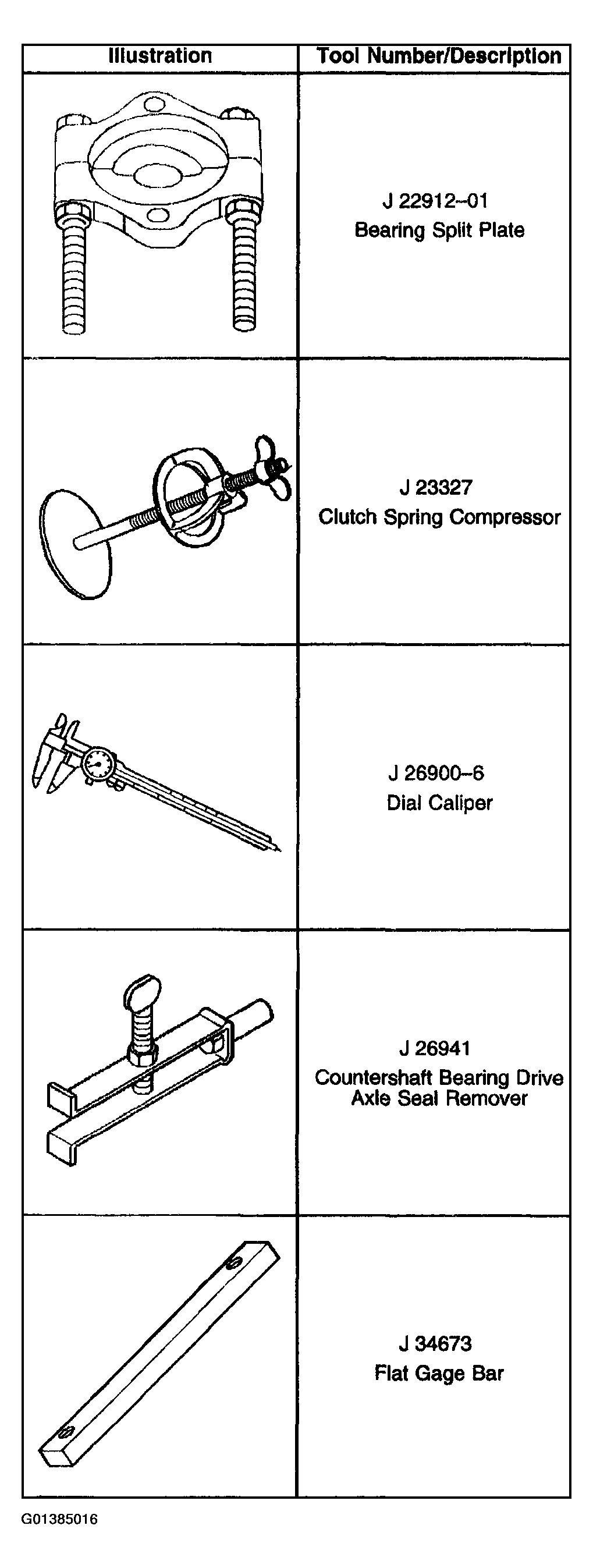

Fig 4: Special Tools & Equipment

Courtesy of GENERAL MOTORS CORP.

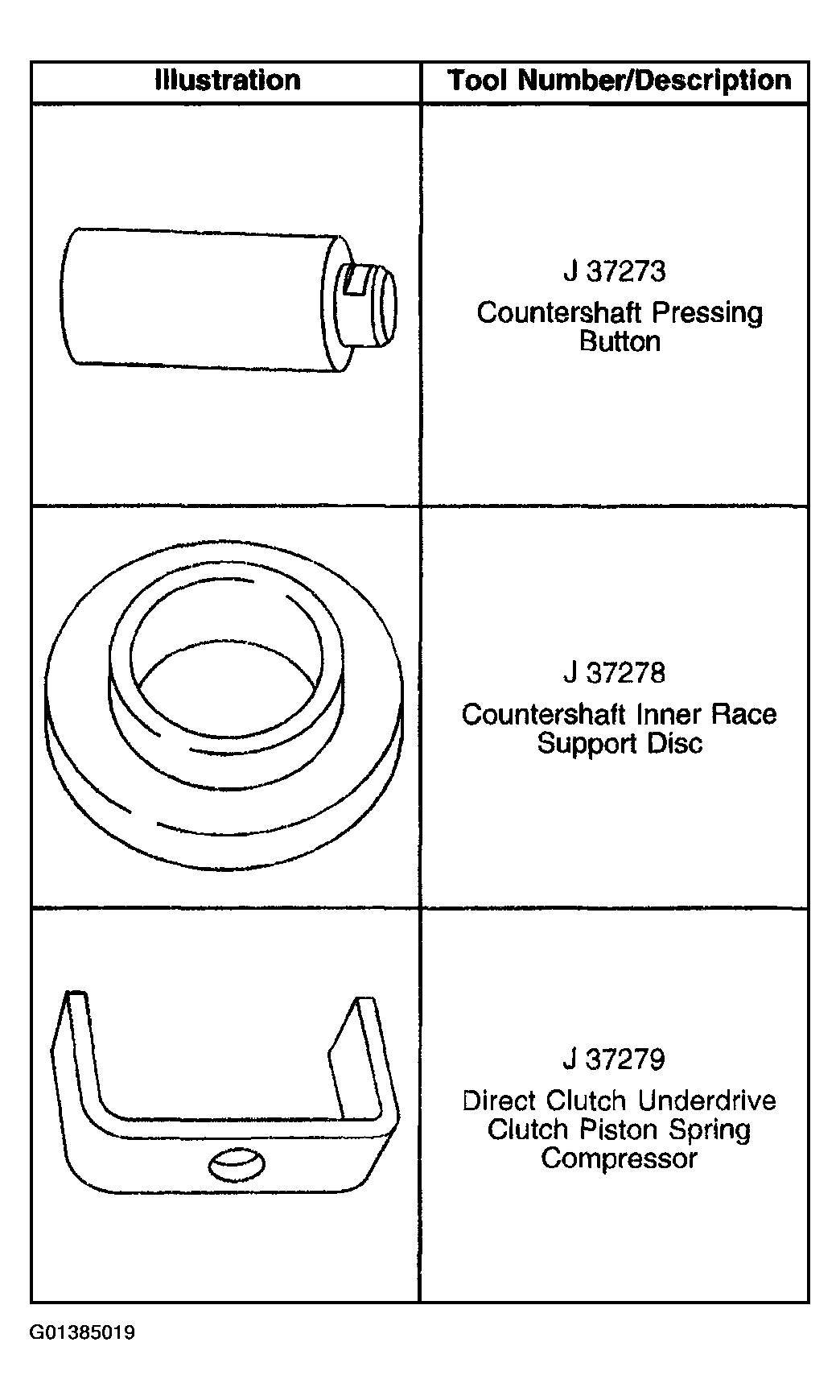

Fig 5: Special Tools & Equipment

Courtesy of GENERAL MOTORS CORP.

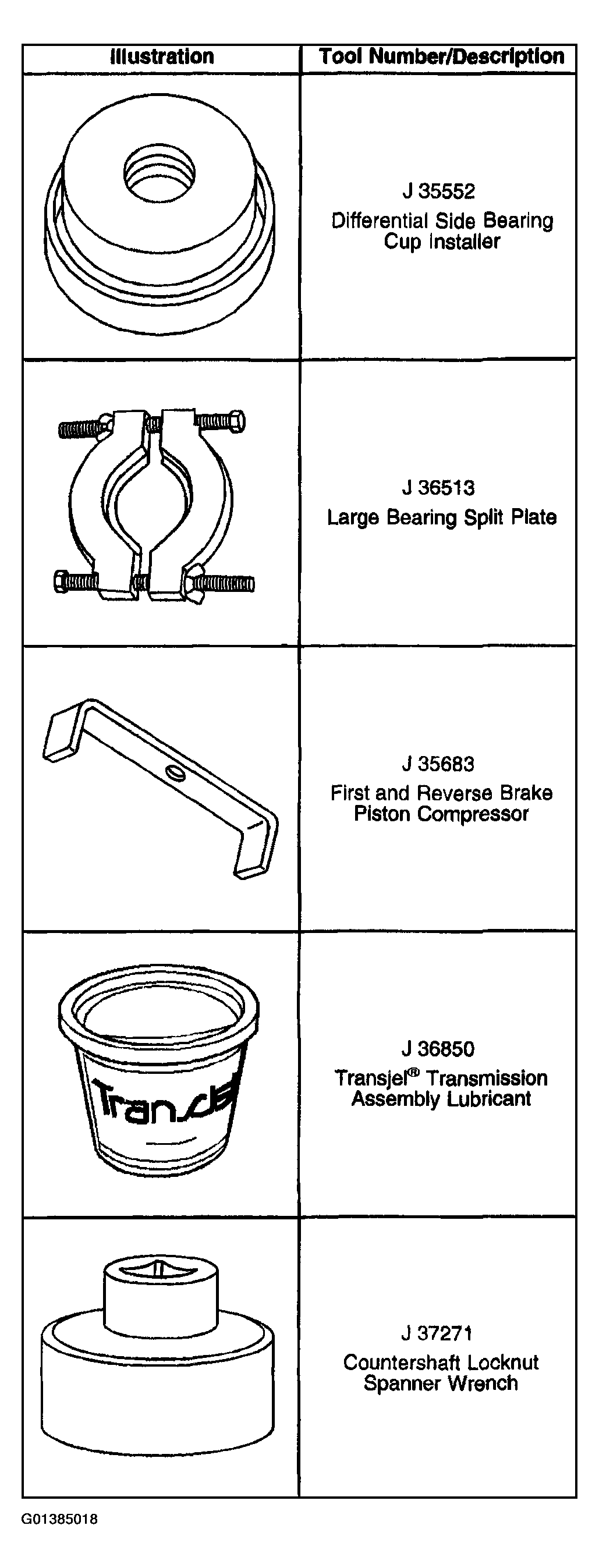

Fig 6: Special Tools & Equipment

Courtesy of GENERAL MOTORS CORP.
