Removal Procedure

Tools Required

J 38358-A  Support Remover/Installer. See Special Tools and Equipment .

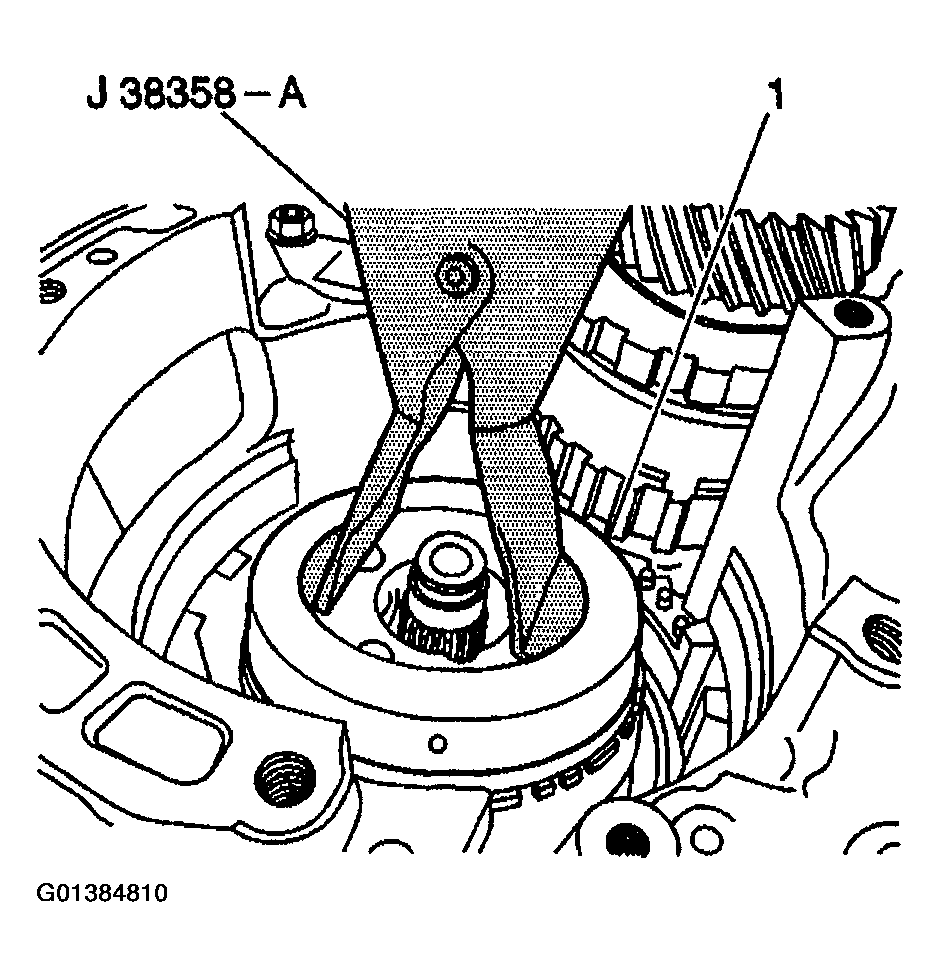

1. Use the J 38358-A  in order to remove the low one-way clutch snap ring (2) from the transaxle case.
   Fig 1: Removing Low One-Way Clutch Snap Ring

   Courtesy of GENERAL MOTORS CORP.

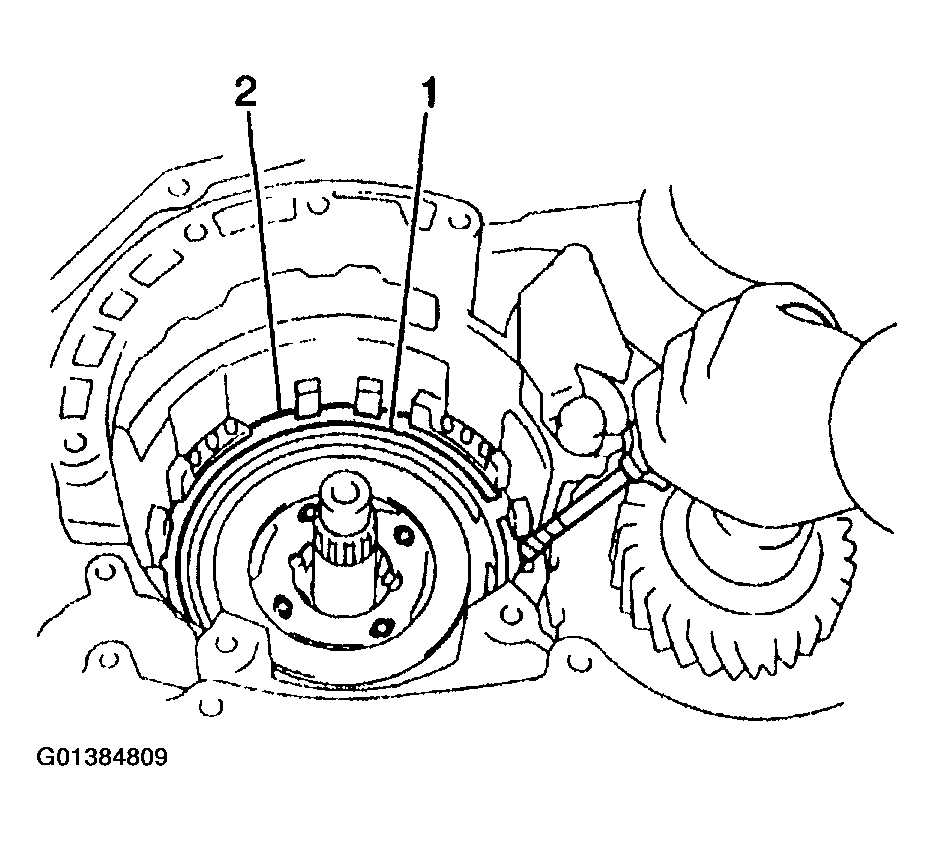

2. Remove the low one-way clutch and the rear planetary carrier (1) from the rear planetary ring gear and the 1st- reverse brake.
   Fig 2: Removing Low One-Way Clutch & Rear Planetary Carrier

   Courtesy of GENERAL MOTORS CORP.

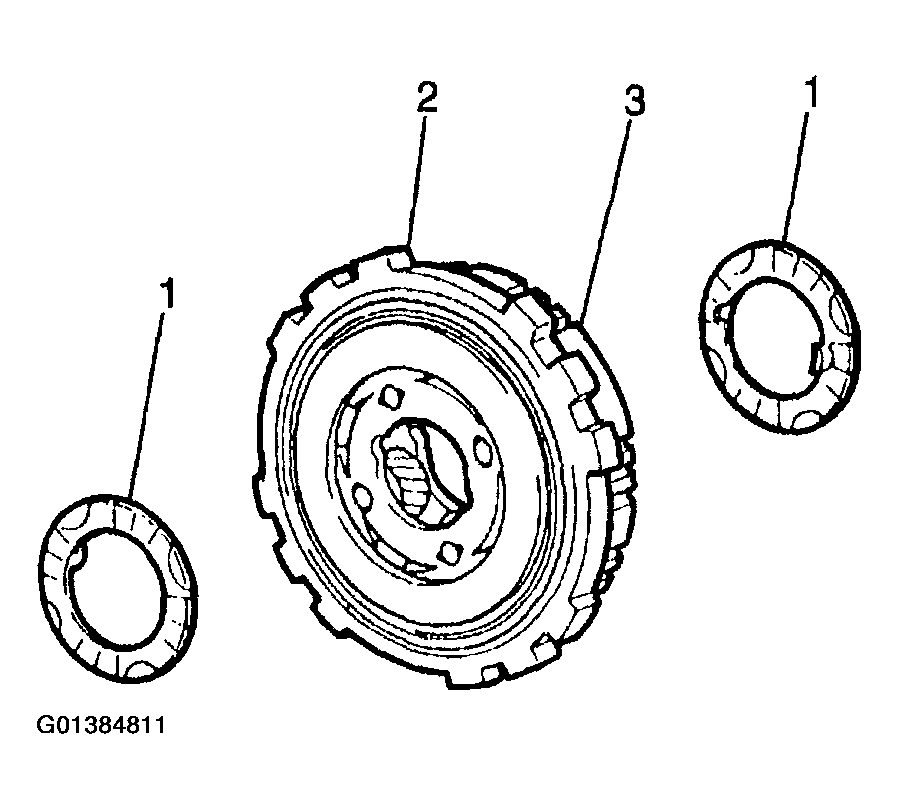

3. Remove the two thrust washers (1) from the rear planetary carrier (3).
   Fig 3: View Of Thrust Washers From Rear Planetary Carrier

   Courtesy of GENERAL MOTORS CORP.

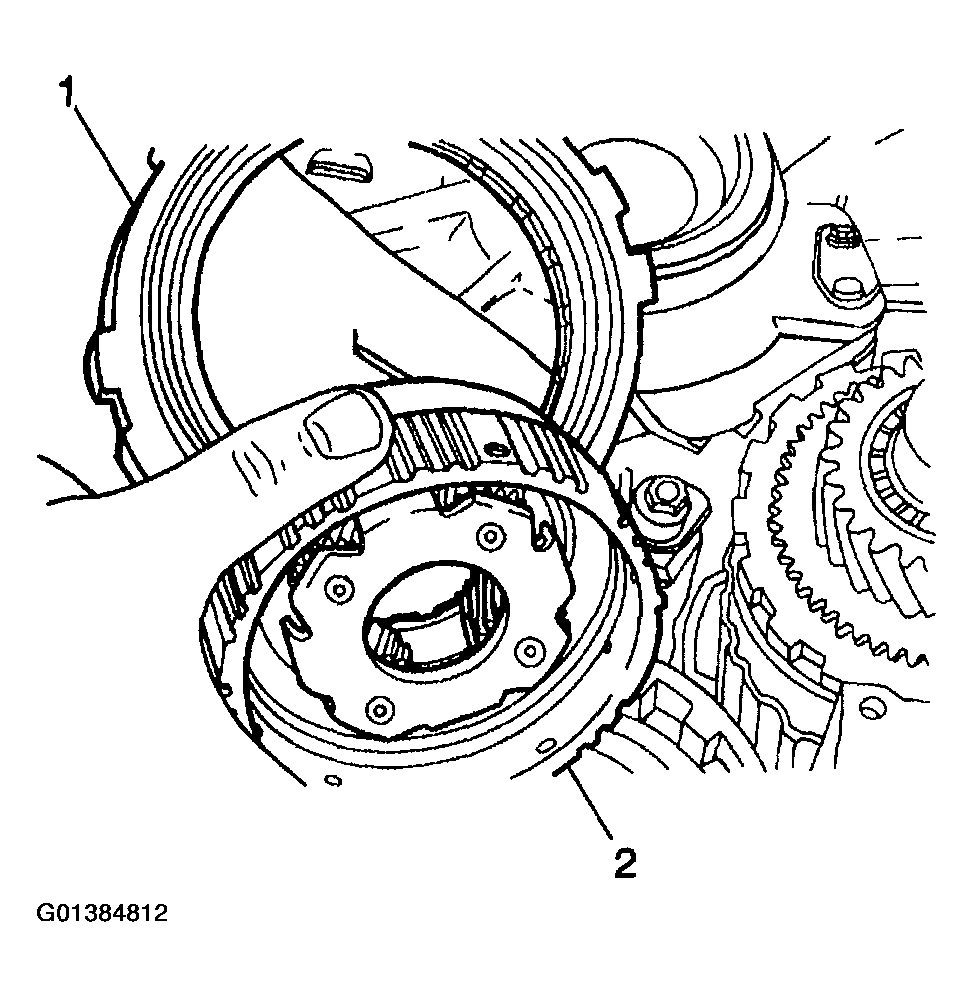

4. Remove the one-way clutch (1) from the rear planetary carrier (2).
   Fig 4: Removing One Way Clutch

   Courtesy of GENERAL MOTORS CORP.

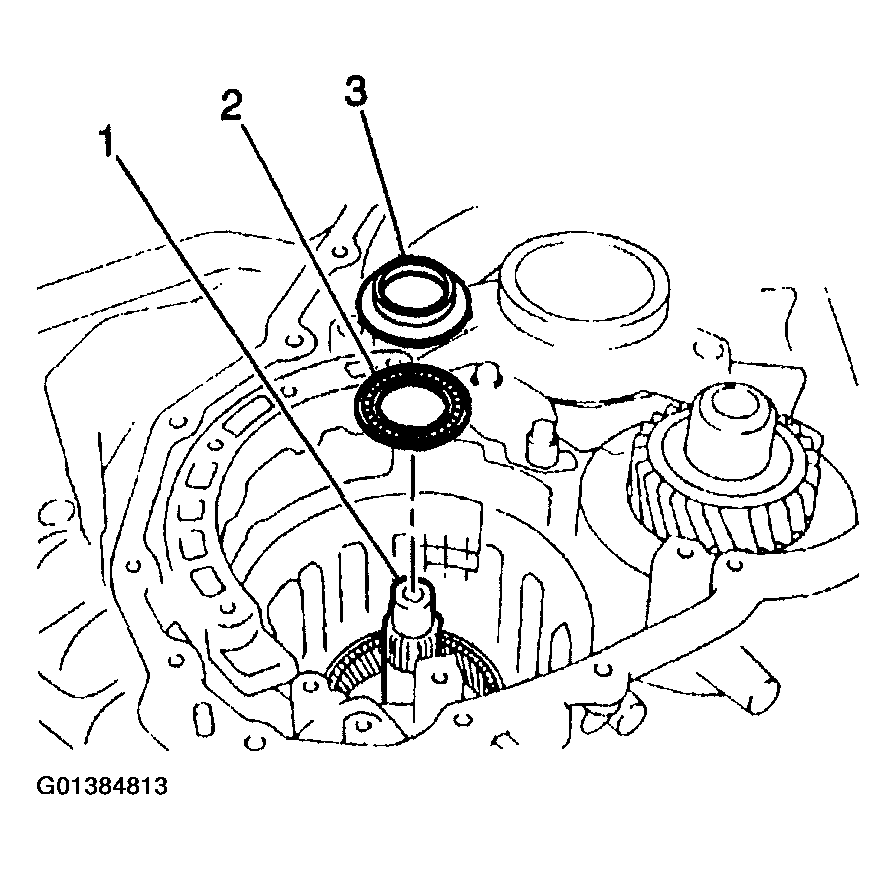

5. Remove the rear planetary carrier thrust bearing (2) and the race (3) from the rear planetary ring gear and intermediate shaft (1).
   Fig 5: Removing Rear Planetary Carrier Thrust Bearing & Race

   Courtesy of GENERAL MOTORS CORP.
