Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

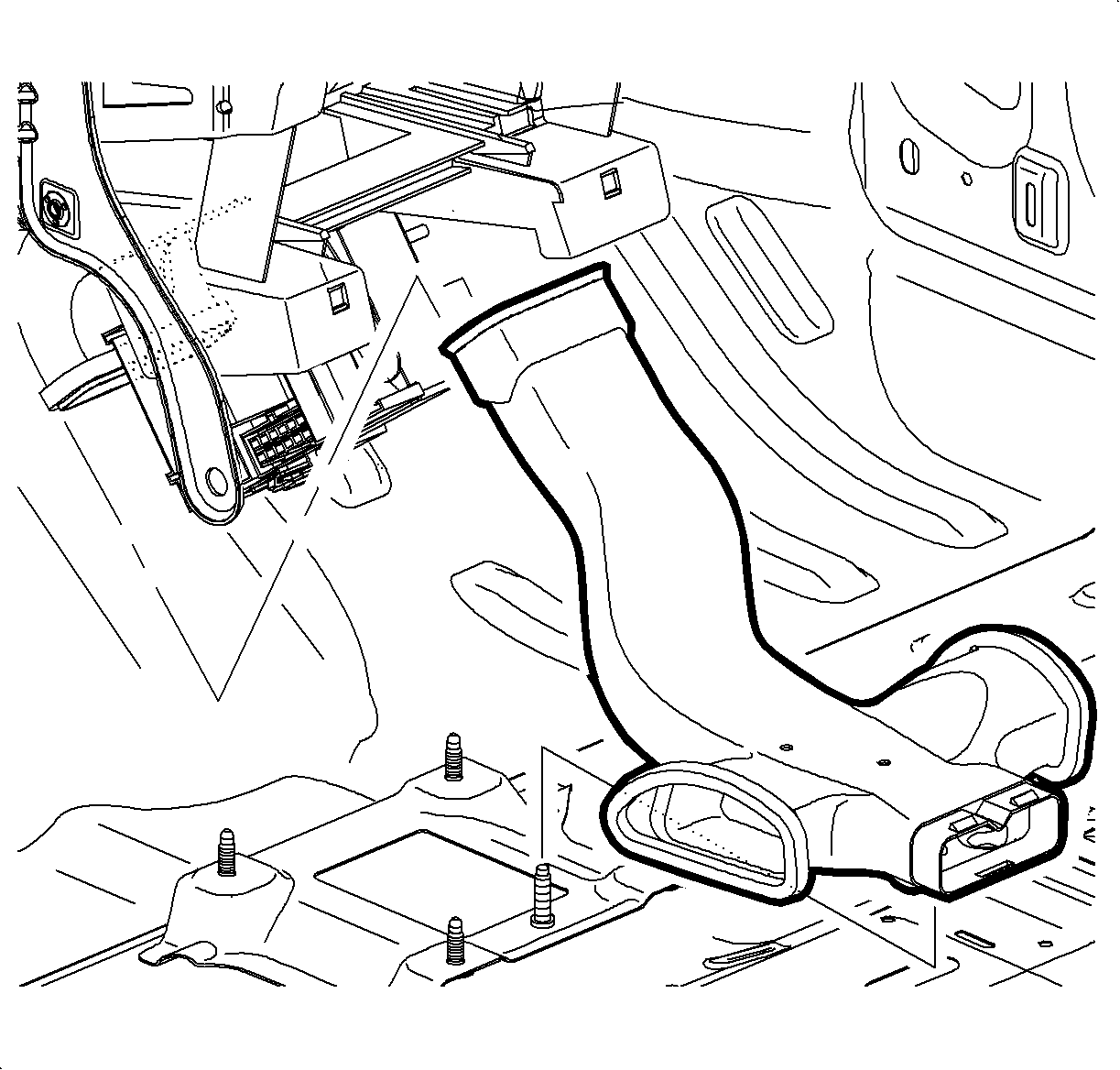

    Fig 1: Center Floor Air Outlet Duct
    GM933579Courtesy of GENERAL MOTORS CORP.
  1. Slide the floor air duct forward on heater duct enough to clear rear floor air duct and then down and rearward to install.
  2. Install the shift control bracket. Refer to Transmission Shift Control Bracket Replacement in Manual Transmission - Getrag 5, Transmission Shift Control Bracket Replacement in Automatic Transaxle - AF33-5.
