Tools Required

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

J 44866 Support Bushing Remover/Installer. See Special Tools .

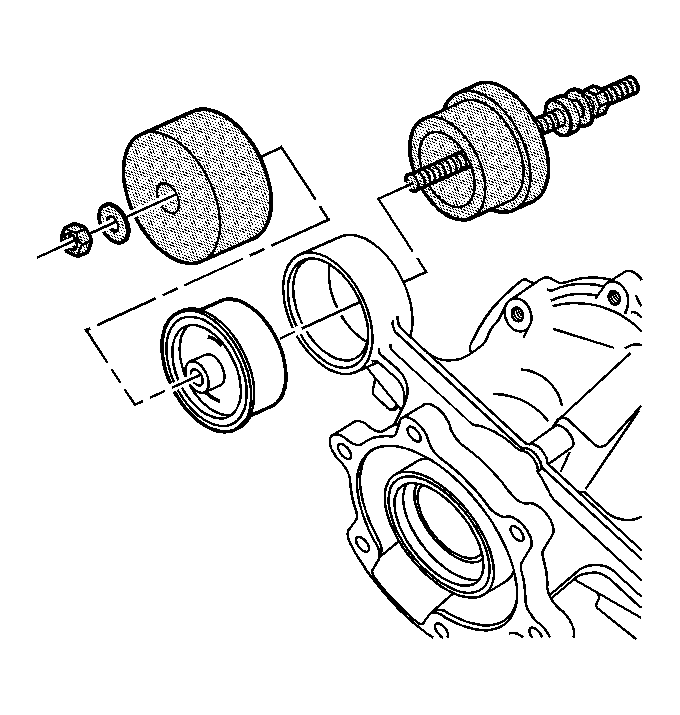

Fig 1: Removing Bushing If Damaged Or Worn Out

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Remove the bushing only if damaged or worn out.

IMPORTANT: Use the high pressure lube supplied with the tool.

Install J 44866 . See Special Tools . Tighten the nuts in order to force out the bushing.

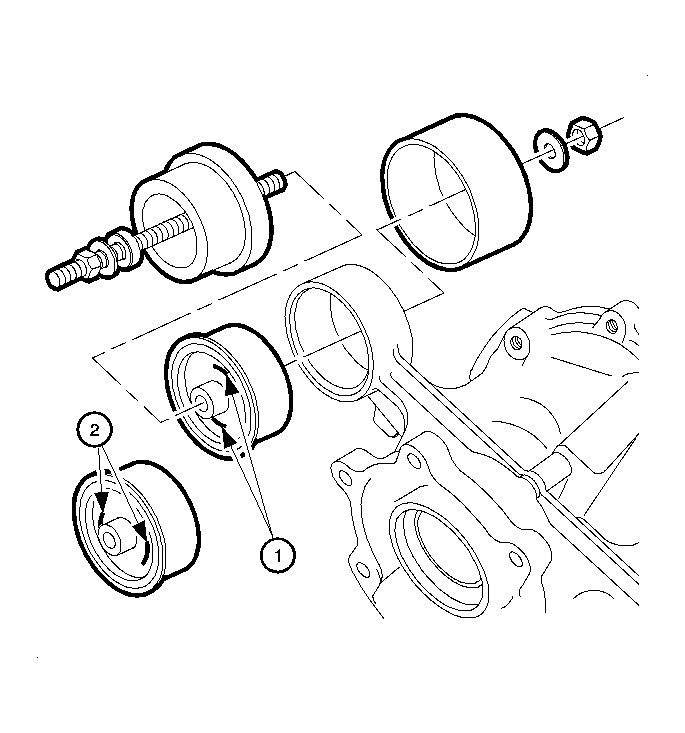

Fig 2: Installing J44866

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The bushing has 2 slots molded into the rubber section. The slots are used to control vibration and must be installed in the following positions:

4-Cylinder Vehicles - Align the slots in the 3 o'clock and 9 o'clock position (2).
6-Cylinder Vehicles - Align the slots in the 6 o'clock and 12 o'clock position (1).

Install J 44866 . See Special Tools . Tighten the nuts in order to force the bushing in.
