Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

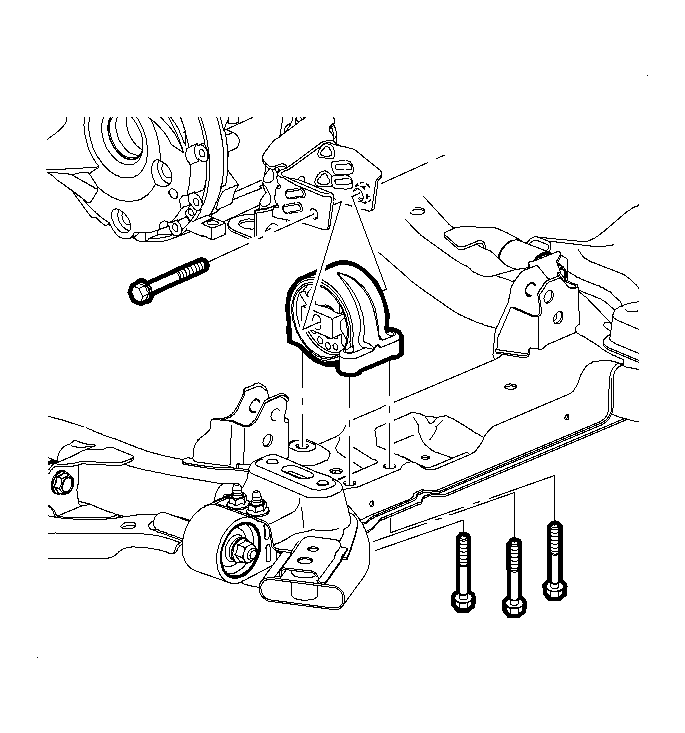

Fig 1: View Of Transaxle Mount And Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the mount to the frame.
Tighten: Tighten the frame to transmission mount bolts to 50 N.m (37 lb ft).
Install the transmission mount through bolt.
Tighten: Tighten the bolt to 110 N.m (81 lb ft).
Lower the vehicle.
Perform the powertrain mount balance procedure. Refer to POWERTRAIN MOUNT BALANCE (LOWER) .
