Transmission Case Cover Assembly Assemble

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

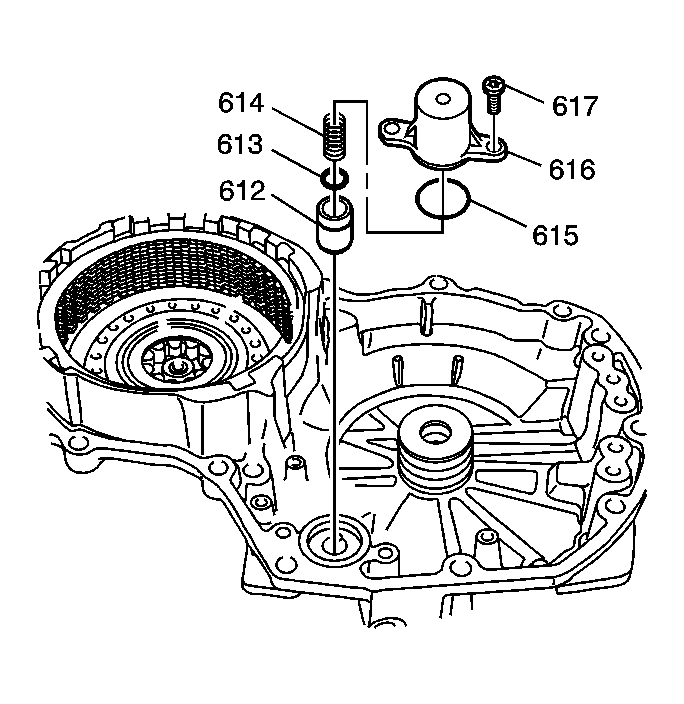

    Fig 1: Installing Forward Clutch Accumulator Cover Assembly
    GM792758Courtesy of GENERAL MOTORS CORP.
  1. Apply automatic transmission fluid to the new forward clutch accumulator piston fluid seal ring (613).
  2. Install the new forward clutch accumulator piston fluid seal ring (613) onto forward clutch accumulator piston (612).
  3. Install the forward clutch accumulator piston spring (614) and the forward clutch accumulator piston (612) into the forward clutch accumulator cover (616).
  4. Apply automatic transmission fluid to the new forward clutch accumulator cover seal (615).
  5. Install the new forward clutch accumulator cover seal (615) onto forward clutch accumulator cover (616).
  6. Install the forward clutch accumulator cover assembly onto the transmission case cover.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install and tighten 1 of the 2 forward clutch accumulator cover bolts (617).

    Tighten:  Tighten the forward clutch accumulator cover bolt (617) to 10 N.m (89 lb in).

    8. Fig 2: View Of Forward/Direct Clutch Housing Thrust Bearing Race & Fluid Sealing Rings
    GM749803Courtesy of GENERAL MOTORS CORP.
  8. Apply automatic transmission fluid to the 3 new forward clutch housing fluid seal rings (607).

    Install the 3 new forward clutch housing fluid seal rings (607) and the forward/direct clutch housing thrust bearing race (628) onto the transmission case cover.

    9. Fig 3: View Of 4-5 Clutch Apply Pipe & Seals
    GM749594Courtesy of GENERAL MOTORS CORP.
  9. Apply automatic transmission fluid to the 2 new 4-5 clutch apply pipe seals (608).
  10. Install the 2 pipe seals (608) onto the 4-5 clutch apply pipe (609).

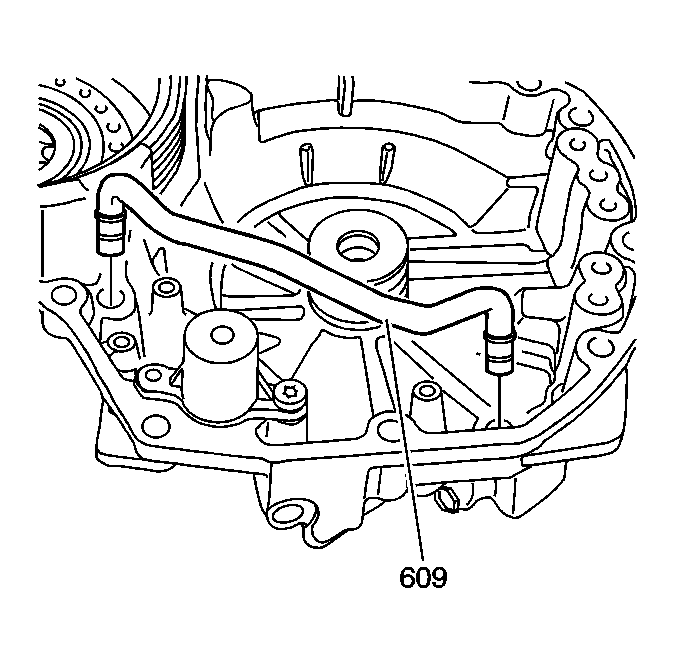

    11. Fig 4: Installing 4-5 Clutch Apply Pipe
    GM792759Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not damage the pipe seals or the 4-5 clutch apply pipe.
  11. Using a plastic hammer if needed, install the 4-5 clutch apply pipe (609) into the transmission case cover.

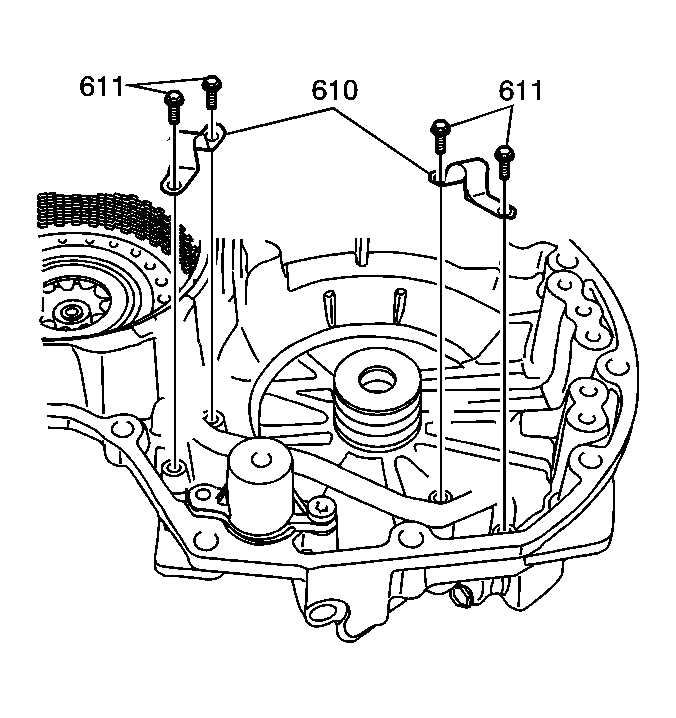

    12. Fig 5: View Of 4-5 Clutch Apply Pipe Retainers
    GM792760Courtesy of GENERAL MOTORS CORP.
  12. Install the two, 4-5 clutch apply pipe retainers (610).
  13. Install the four, 4-5 clutch apply pipe bolts (611).

    Tighten:  Tighten the 4-5 clutch apply pipe bolts to 7 N.m (62 lb in).
