Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not touch the cooling fan. Serious personal injury may result.

IMPORTANT: Record all pre-set radio stations.

Remove the battery.
1. Remove the battery cover.
2. Disconnect the negative battery cable.
3. Disconnect the positive battery cable.
4. Loosen the battery hold-down screw and remove the battery.
Remove the battery cooling box. Refer to Battery Box Replacement removal procedure in Battery.
Remove the battery tray bracket.
Loosen the battery tray bracket screws and remove the bracket.

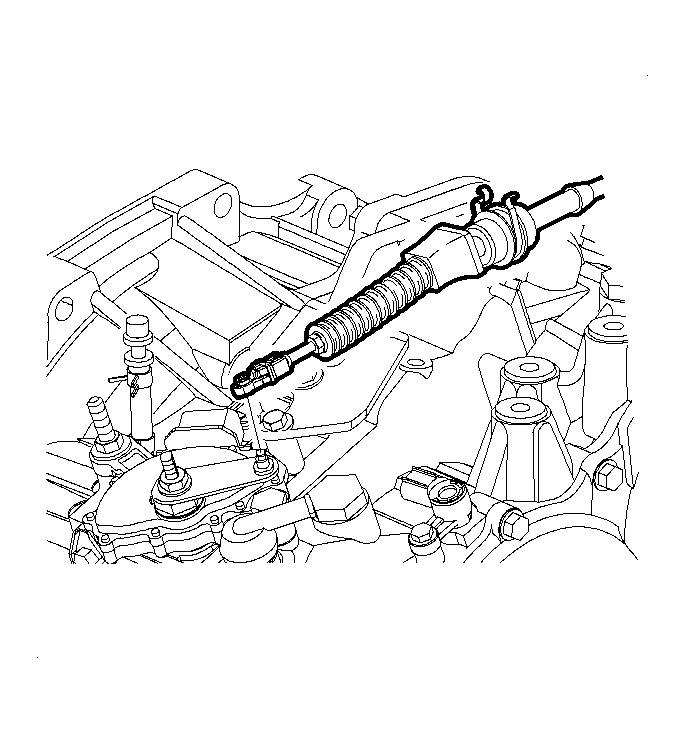

Fig 1: Control Cable & Transaxle Range Switch Lever

Courtesy of GENERAL MOTORS CORP.

NOTE: The control cable must be disconnected from the transaxle range switch lever prior to disconnecting it from the control cable bracket. Otherwise damage to the manual shift shaft may result, requiring transaxle disassembly.

Using the Fascia Retainer Remover J 36346 , disconnect the control cable from the transaxle range switch lever.

Fig 2: Control Cable Retainer Clip Tabs, Cable & Control Cable Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the transaxle range switch lever nut and lever.
