Torque Converter Housing Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Torque Converter Housing Cover Bolts/Screws

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not interchange the 30 mm torque converter housing bolts with the 28 mm fluid pump bolts.

Remove the 17 torque converter housing cover bolts/screws.

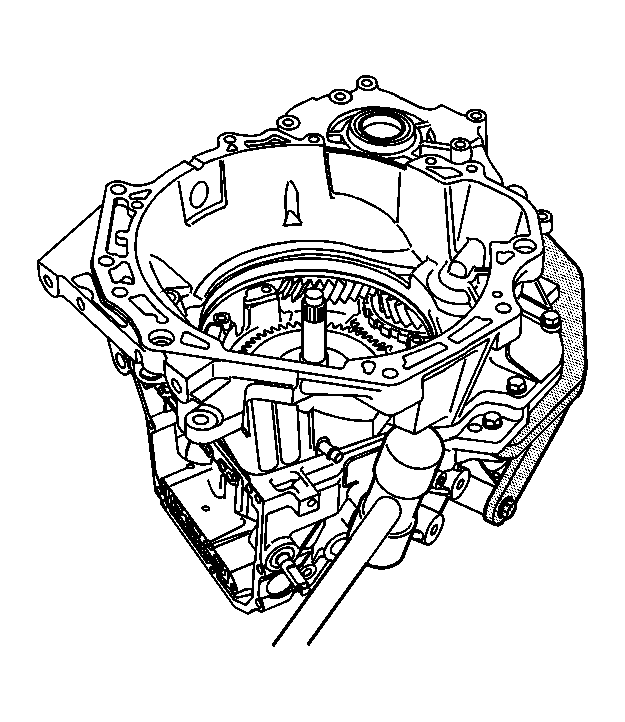

Fig 2: Removing Torque Converter Housing Assembly

Courtesy of GENERAL MOTORS CORP.

Using a plastic hammer if needed, remove the torque converter housing assembly.
