Rear Internal Gear Assembly Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

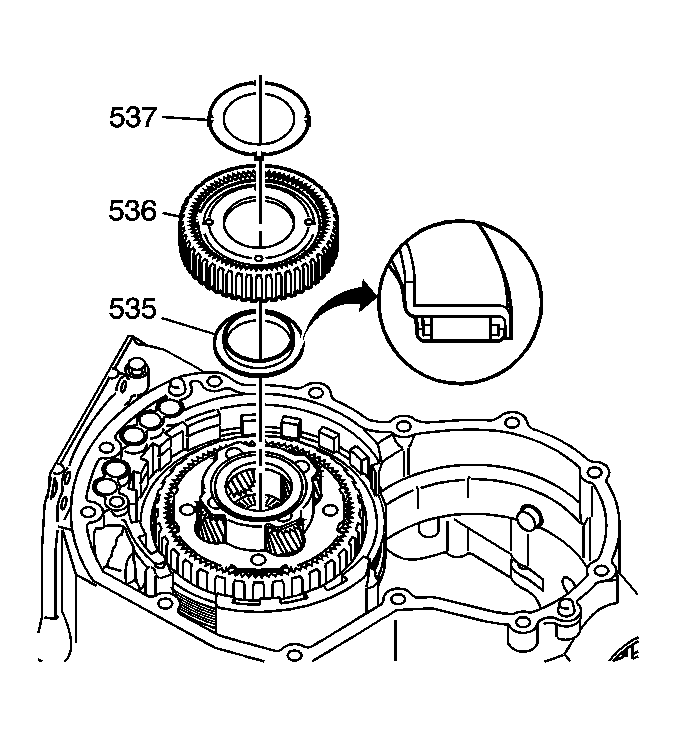

Fig 1: View Of Rear Internal Gear, Thrust Bearing & Thrust Bearing Race

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Make sure the thrust bearing is installed in the correct direction.

Install the rear internal gear thrust bearing (535).
Install the rear internal gear assembly (536).
Install the rear sun gear thrust bearing race (537).
