Output Speed Sensor Installation

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

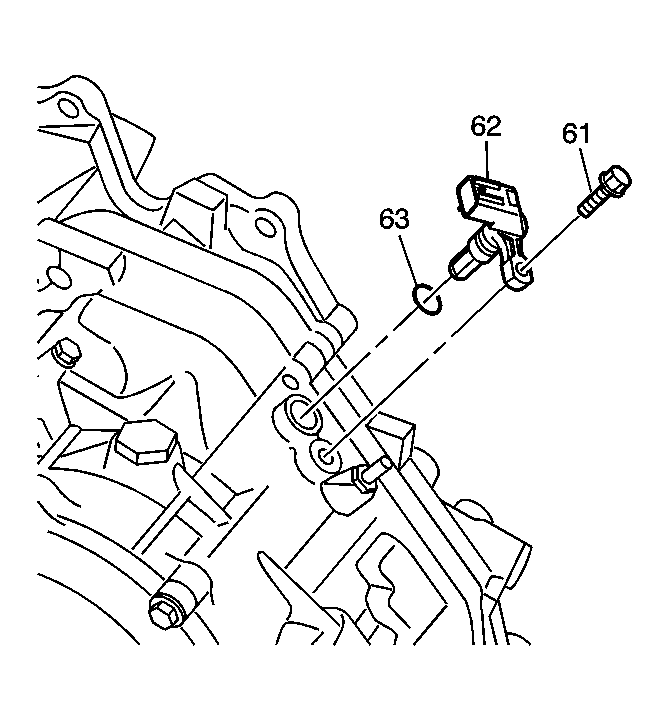

Fig 1: Output Shaft Speed Sensor

Courtesy of GENERAL MOTORS CORP.

Apply automatic transmission fluid to the new output speed sensor O-ring seal (63).
Install the new output speed sensor O-ring seal (63) onto the output speed sensor (62).
Install the output speed sensor (62) into the transmission case assembly (17).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the M6 x 1.0 x 16 mm output speed sensor bolt (61).
Tighten: Tighten the output speed sensor bolt to 5 N.m (44 lb in).
