Manual Shift Detent Lever and Park Pawl Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

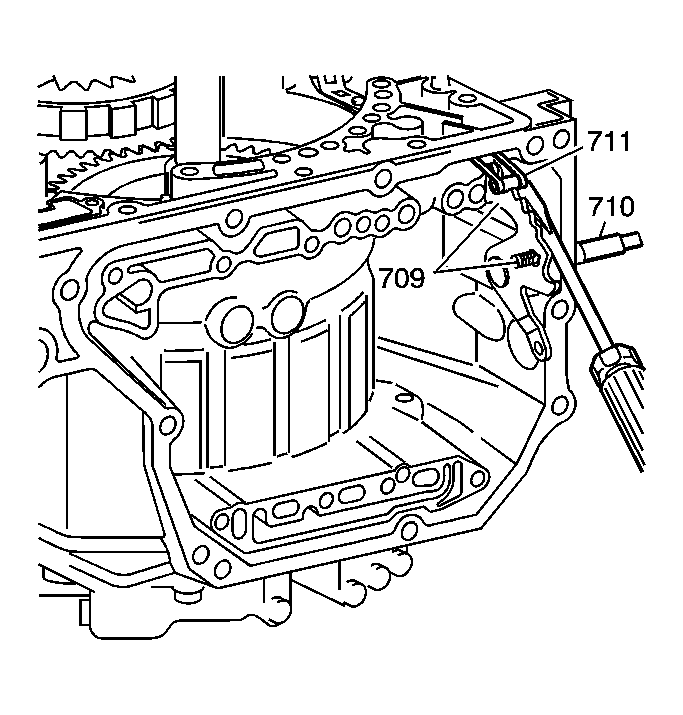

    Fig 1: Locating Park Pawl Actuator Rod, Manual Shift Detent Lever Assembly & Manual Shift Detent Spring
    GM749388Courtesy of GENERAL MOTORS CORP.
  1. Lift the manual shift detent spring (711) off of the manual shift detent lever assembly (710) to disengage the park pawl actuator rod (709) from the manual shift detent lever assembly (710).
    2. Fig 2: View Of Manual Shift Detent Lever Assembly
    GM749453Courtesy of GENERAL MOTORS CORP.
  2. Remove the manual shift detent lever assembly (710) from the transmission case assembly.
    3. Fig 3: View Of Park Pawl Actuator Rod
    GM749454Courtesy of GENERAL MOTORS CORP.
  3. Remove the park pawl actuator rod (709) from the transmission case assembly.
    4. Fig 4: View Of Manual Shift Detent Lever Spring Bolt/Screw & Park Pawl Actuator Bracket Bolt/Screw
    GM749455Courtesy of GENERAL MOTORS CORP.
  4. Remove the manual shift detent lever spring bolt/screw (712) and the park pawl actuator bracket bolt/screw (715).
    5. Fig 5: View Of Manual Shift Detent Spring Assembly
    GM749456Courtesy of GENERAL MOTORS CORP.
  5. Remove the manual shift detent spring assembly (711) from the transmission case assembly.
    6. Fig 6: View Of Park Pawl Shaft & Spring
    GM749457Courtesy of GENERAL MOTORS CORP.
  6. Remove the park pawl shaft (700).
  7. Remove the park pawl spring (701).
    8. Fig 7: View Of Park Pawl & Park Pawl Actuator Bracket
    GM749458Courtesy of GENERAL MOTORS CORP.
  8. Remove the park pawl actuator bracket (708) and park pawl (702).
    9. Fig 8: View Of Park Pawl Spring Pin
    GM749461Courtesy of GENERAL MOTORS CORP.
  9. Remove the park pawl spring pin (703).
    10. Fig 9: View Of Park Pawl Pin Spring, Guide Sleeve & Bolt/Screw
    GM749462Courtesy of GENERAL MOTORS CORP.
  10. Remove the park pawl bolt/screw (706).
  11. Remove the park pawl pin spring guide sleeve (705).
  12. Remove the park pawl pin spring (704).
