Low and Reverse Clutch Piston Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Low & Reverse Clutch Piston, Spring Assembly & Retaining Ring
    GM749511Courtesy of GENERAL MOTORS CORP.
  1. Remove the low and reverse clutch spring retaining ring (514) from the transmission case assembly.
  2. Remove the low and reverse clutch spring assembly (513).

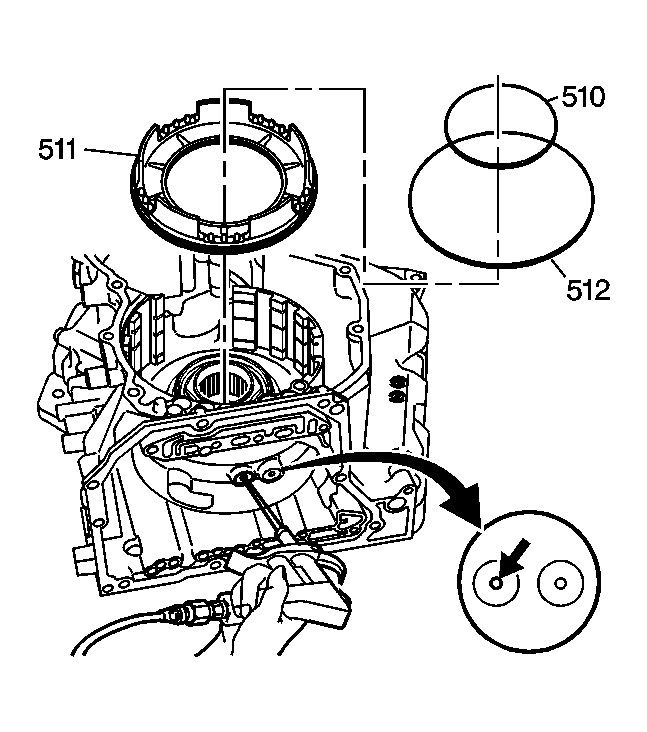

    3. Fig 2: View Of Low & Reverse Clutch Piston & Piston Seals
    GM749512Courtesy of GENERAL MOTORS CORP.
    CAUTION: Wear safety glasses when using compressed air in order to prevent eye injury.
  3. While rotating the low and reverse clutch piston (511) by hand, apply compressed air into the oil passage located in the side of the transmission case and remove the low and reverse clutch piston assembly.
  4. Remove the inner seal (510) and the outer seal (512) from the piston.
