Input Speed Sensor Removal

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

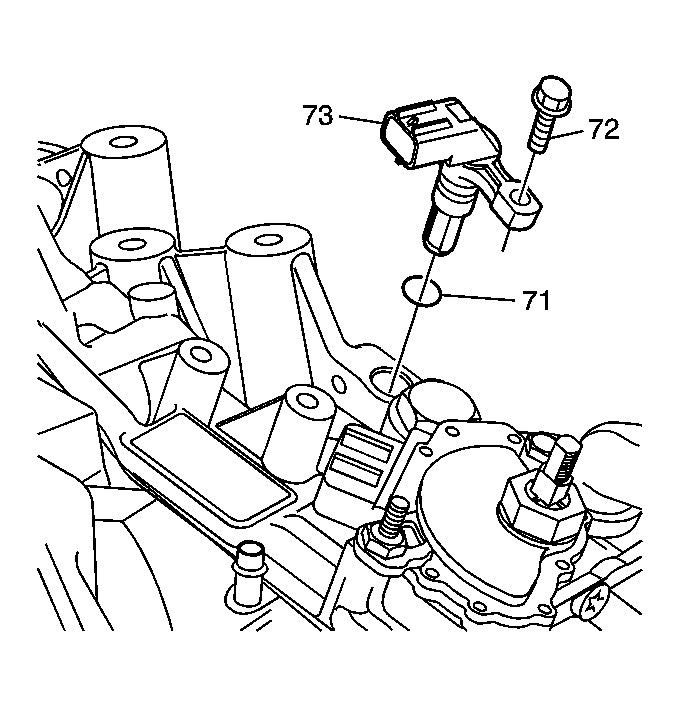

Fig 1: View Of Input Shaft Speed Sensor

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not damage the input speed sensor or transaxle case.

Remove the input speed sensor bolt (72).
Remove the input speed sensor (73).
Remove the input speed sensor O-ring (71).
